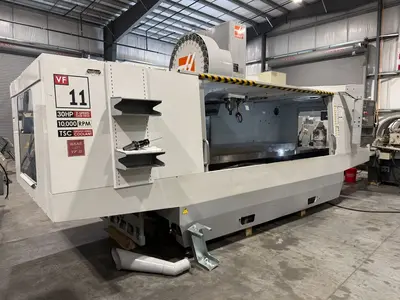

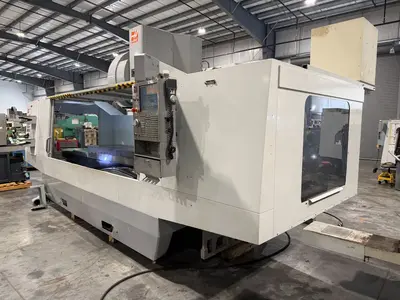

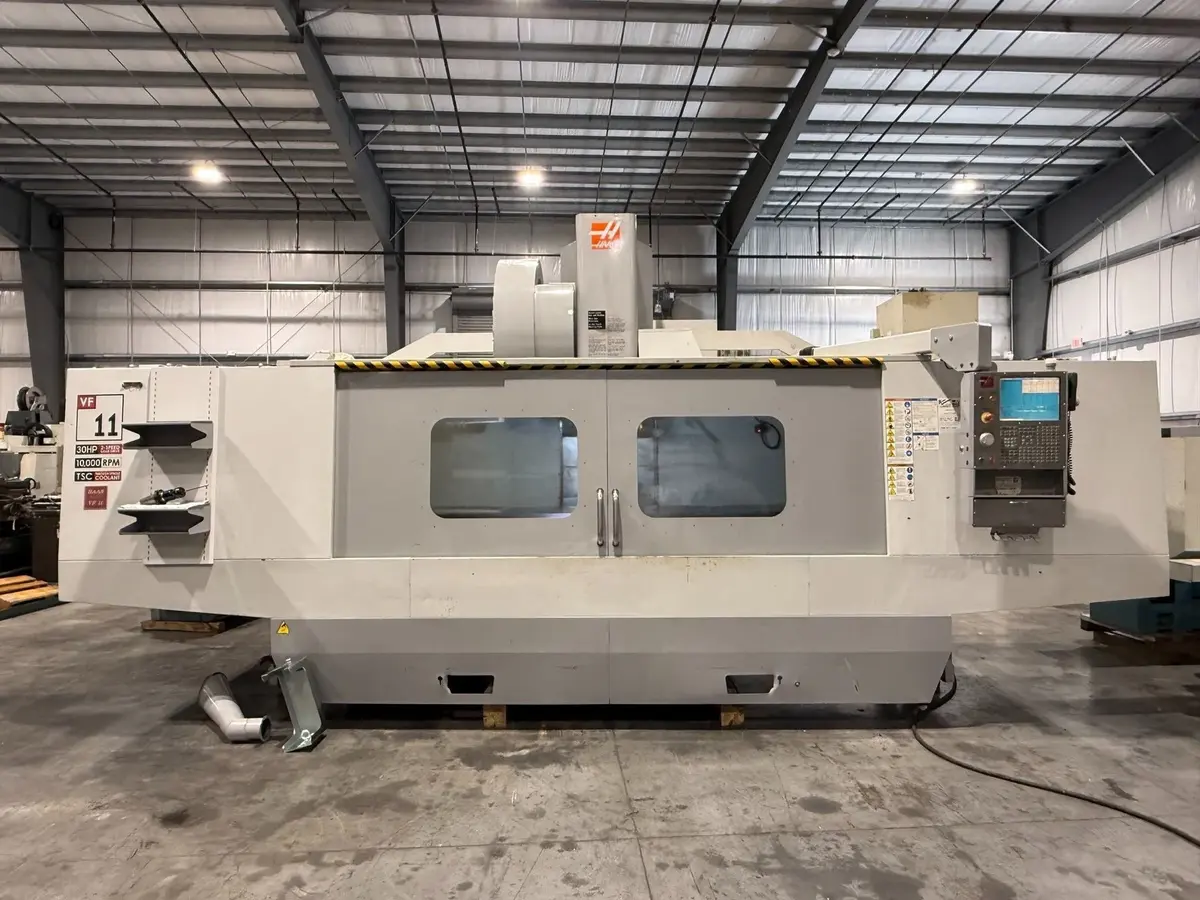

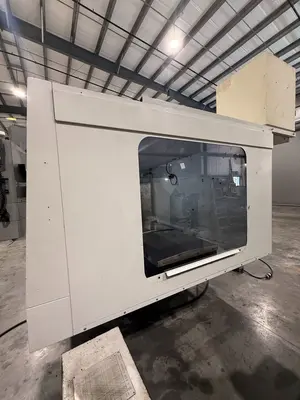

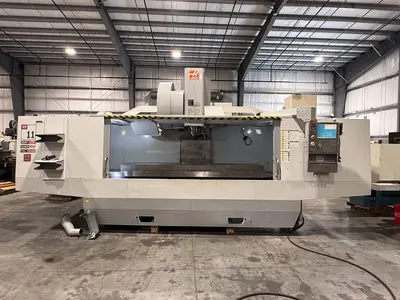

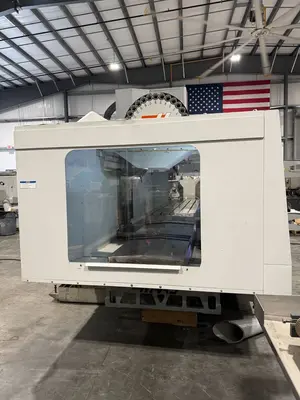

2008 HAAS VF-11
Have one to sell?
ConditionUsed
1 available

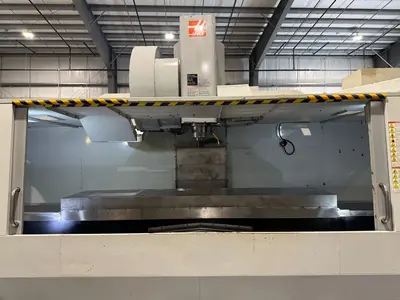

Used Vertical Machining Center. X: 120", Y: 40", Z: 30", 20 hp power, 10,000 RPM, 30-tool ATC, CAT 50 taper. Equipped with upgrades including new control board, drives, amplifiers, and more. Table 120" x 28", max weight 4,000 lbs.
X axis travel- 120”
Y axis travel- 40”
Z axis travel- 30”
Spindle nose to table- 5” Min / 35” Maximum
Spindle speed- 10,000 R.P.M.
Spindle taper- CAT 50 taper

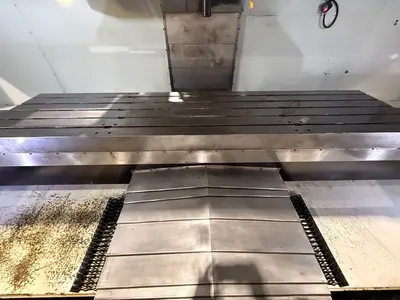

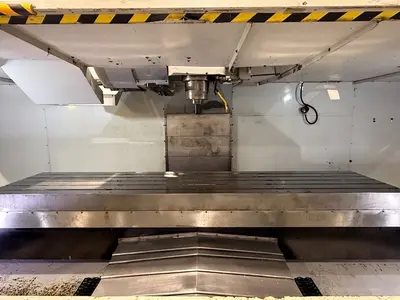

Table size- 120” x 28”
Max table weight- 4,000 Lbs.
X rapids- 360 I.P.M.
Y rapids- 600 I.P.M.
Z rapids- 600 I.P.M.

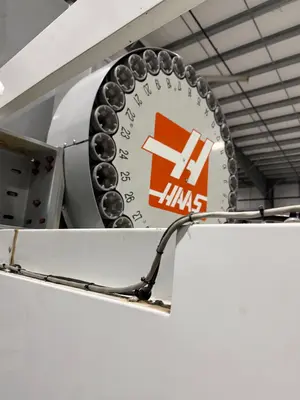

Tool changer capacity- 30 tool
Max tool diameter- 4”
Max tool length- 10”
Max tool weight- 30 Lbs.
Tool to Tool- 4.2 Seconds
***UPGRADED in 2024’ Main Conboard Board, Vector Drive, Amplifiers,***

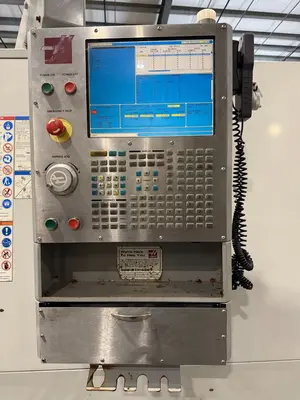

Control options- DNC, Quick Code, Pre-Orient Tap, TSC Enable
M.P.G. Manual Pulse Generator New 2024’
Side Mount tool changer option
Programmable coolant nozzle
Coolant through spindle
Renishaw Probe & Renishaw reader
Prewired for 4th axis
Mist buster

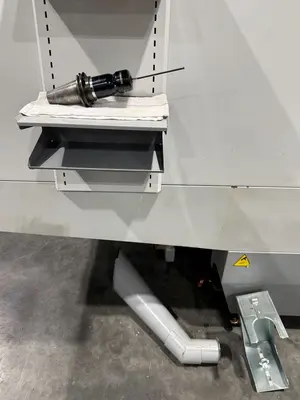

Chip auger

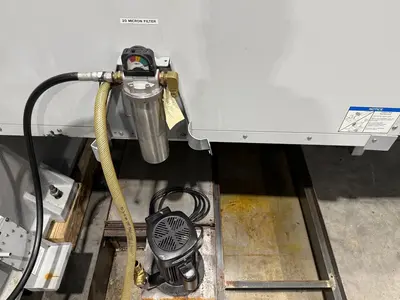

Coolant tank & Pump
Machine is wired for 208-230 volt / 3 phase / 60 H.Z.
Machine weight- 38,500 Lbs.

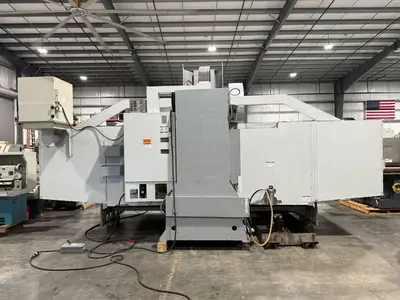

Machine dimensions- 288” x 106” x 129”H
