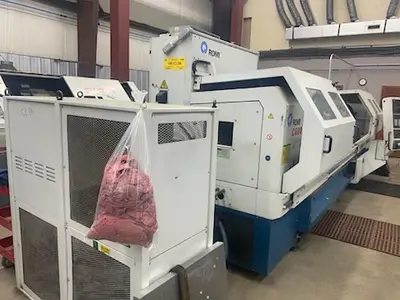

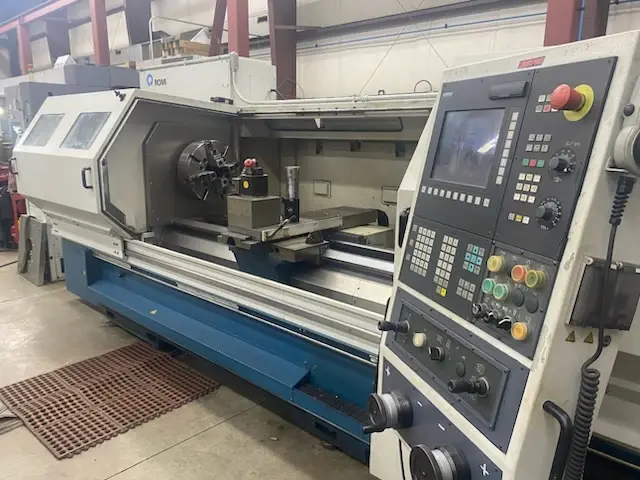

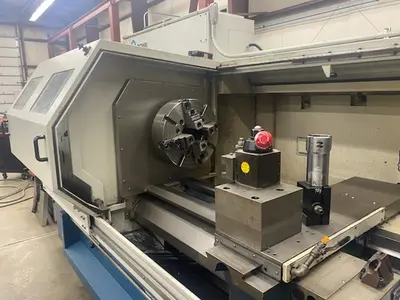

Used CNC Lathe for sale: 6″ bar, 18″ chuck, max turning 118″ length x 26.8″ diameter, 1,800 RPM spindle, 25 HP motor. Features Siemens Sinumerik 802D, manual tailstock, chip conveyor. Weighs approx. 15,432lbs, 480V, 3-Phase.
Bar Capacity: 6″
Chuck Size: 18″
Max Turning Length: 118″
Max Turning Diameter: 26.8″
Max Spindle Speed: 1,800 RPM
Spindle Motor: 25 HP
Bed Width: 17.7″
X-Axis Travel: 14.2″
Z-Axis Travel: 122″
Rapid Traverse Rate: 394 IPM
Electrical: 480V, 3-Phase
Approximate Machine Weight: 15,432lbs

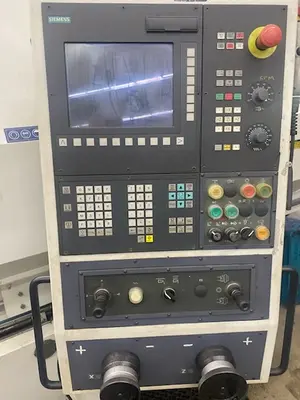

Siemens Sinumerik 802D CNC Controller
Manual Tailstock

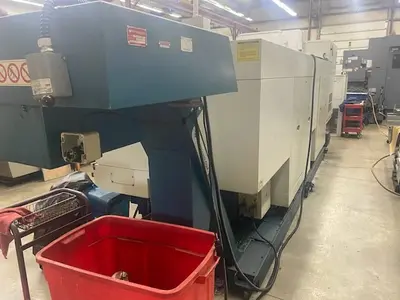

Chip Conveyor
Used CNC Lathe for sale: 6″ bar, 18″ chuck, max turning 118″ length x 26.8″ diameter, 1,800 RPM spindle, 25 HP motor. Features Siemens Sinumerik 802D, manual tailstock, chip conveyor. Weighs approx. 15,432lbs, 480V, 3-Phase.
Bar Capacity: 6″
Chuck Size: 18″
Max Turning Length: 118″
Max Turning Diameter: 26.8″
Max Spindle Speed: 1,800 RPM
Spindle Motor: 25 HP
Bed Width: 17.7″
X-Axis Travel: 14.2″
Z-Axis Travel: 122″
Rapid Traverse Rate: 394 IPM
Electrical: 480V, 3-Phase
Approximate Machine Weight: 15,432lbs
Siemens Sinumerik 802D CNC Controller
Manual Tailstock
Chip Conveyor
