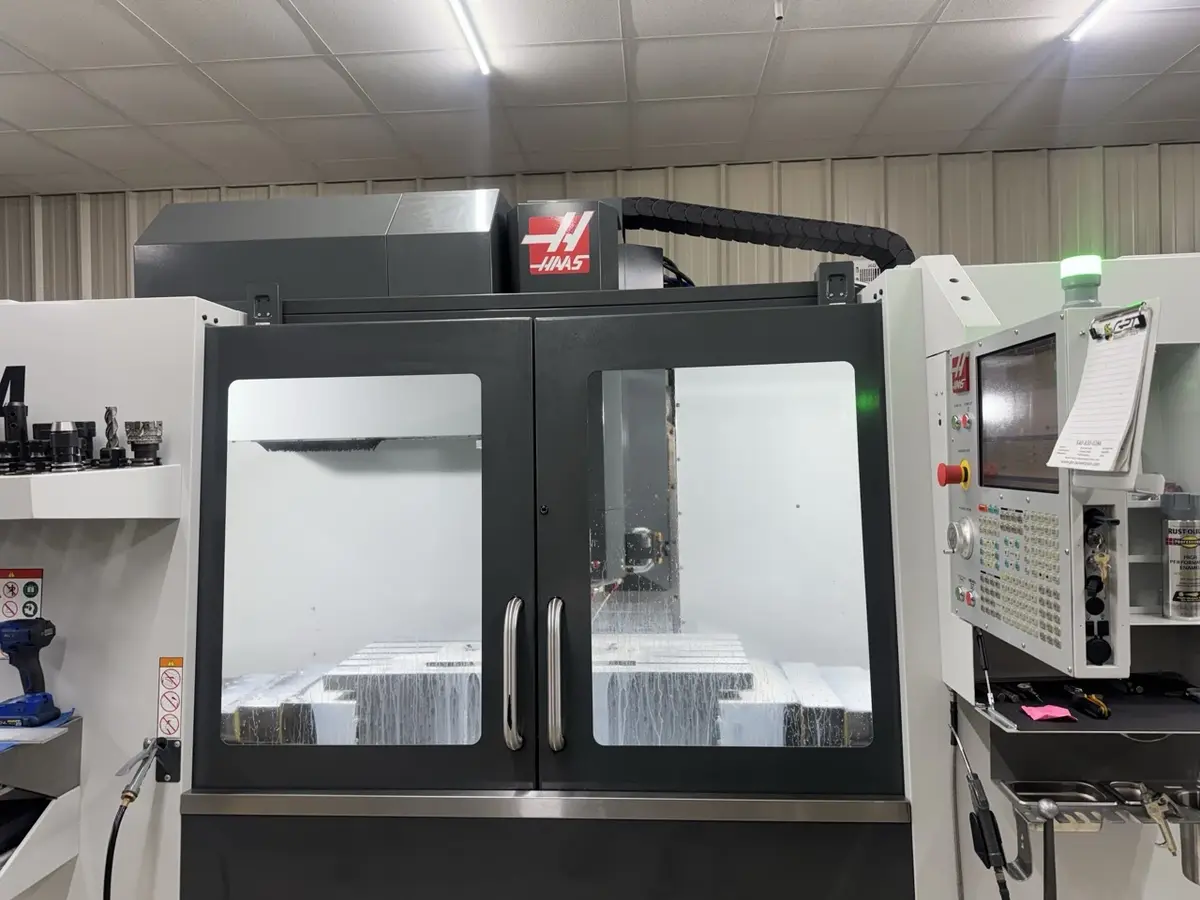

2024 HAAS VF-4
Have one to sell?
ConditionUsed
1 available
2024 HAAS VF-4, used vertical machining center, equipped with Haas CNC Control, 8,100 RPM spindle, 4th axis wiring, and high-speed machining. Features a 30-position side mount ATC, 30 HP spindle motor, and 649 hours of feed cutting time.
X-Axis Travel: 50″
Y-Axis Travel: 20″
Z-Axis Travel: 25″
Spindle Nose to Table: 29.2″
Table Dimensions: 52″ x 18″
Max Weight Capacity: 3,500lbs
T-Sloth Width: 0.625″
T-Slot Center Distance: 3.15″
Max Spindle Speed: 8,100 RPM
Spindle Motor: 30 HP
Automatic Tool Changer: 30 Positions (SMTC)
Electrical Requirements: 220V, 3-Phase; 50/60 Hz

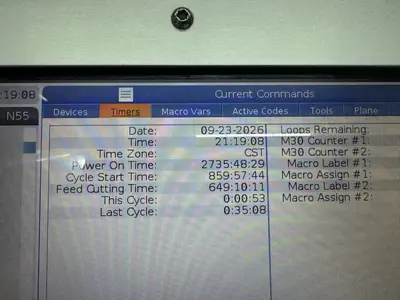

Approx Feed Cutting Time: 649 Hours

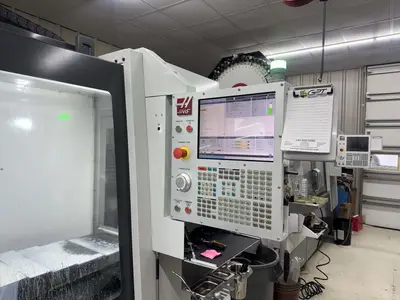

Haas CNC Control
8,100 RPM Spindle
4th Axis Wiring & Drive
High Speed Machining
Rigid Tapping

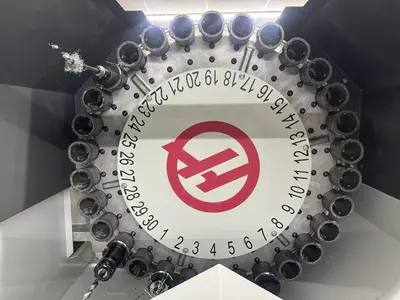

30 Position Side Mount Auto Tool Changer
1 GB Memory
Media Display

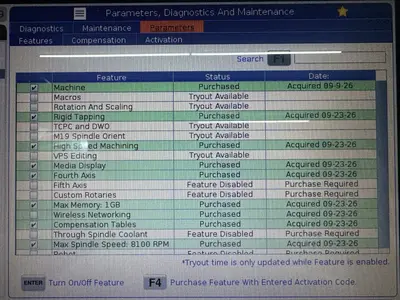

Compensation Tables
Chip Tray
Chip Auger
2024 HAAS VF-4, used vertical machining center, equipped with Haas CNC Control, 8,100 RPM spindle, 4th axis wiring, and high-speed machining. Features a 30-position side mount ATC, 30 HP spindle motor, and 649 hours of feed cutting time.
X-Axis Travel: 50″
Y-Axis Travel: 20″
Z-Axis Travel: 25″
Spindle Nose to Table: 29.2″
Table Dimensions: 52″ x 18″
Max Weight Capacity: 3,500lbs
T-Sloth Width: 0.625″
T-Slot Center Distance: 3.15″
Max Spindle Speed: 8,100 RPM
Spindle Motor: 30 HP
Automatic Tool Changer: 30 Positions (SMTC)
Electrical Requirements: 220V, 3-Phase; 50/60 Hz
Approx Feed Cutting Time: 649 Hours
Haas CNC Control
8,100 RPM Spindle
4th Axis Wiring & Drive
High Speed Machining
Rigid Tapping
30 Position Side Mount Auto Tool Changer
1 GB Memory
Media Display
Compensation Tables
Chip Tray
Chip Auger
