2018 HYUNDAI WIA KF5600
Have one to sell?
ConditionUsed
1 available

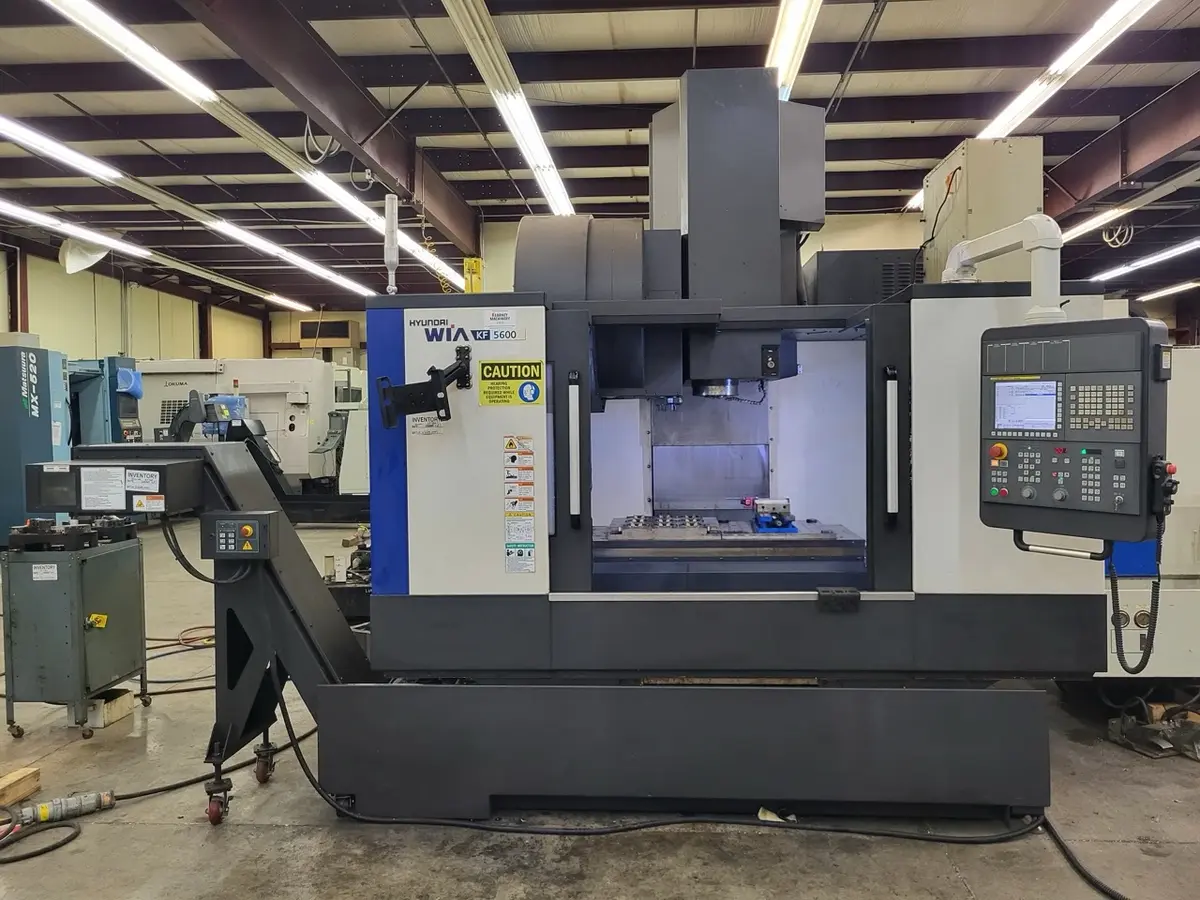

Vertical Machining Center, used condition. Features 43.3" X, 22" Y, 20.5" Z axis travel; 20 HP, 8,000 RPM, 40 spindle taper; Fanuc i Series CNC, high-pressure coolant, and 2,200 lbs max table load. Equipped with spindle chiller, mist buster, chip conveyor.
X Axis Travel: 43.3″
Y Axis Travel: 22″
Z Axis Travel: 20.5″
Table Size: 49.2″ x 22″
Spindle Motor: 20 HP
Spindle Speed: 8,000 RPM
Spindle Taper: 40
Auto Tool Changer: 30 Position SMTC
Rapid Rate X Axis: 1,575 IPM
Rapid Rate Y Axis: 1,575 IPM
Rapid Rate Z Axis: 1,417 IPM
Max Table Load: 2,200 LBS
Electrical Requirements: 220 V; 3 Ph; 60 Hz
Approx Weight: 16,315 lbs

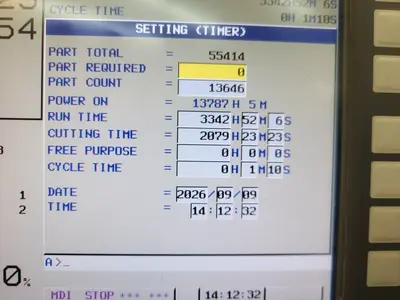

Approx Cutting Time: 2,079 Hours

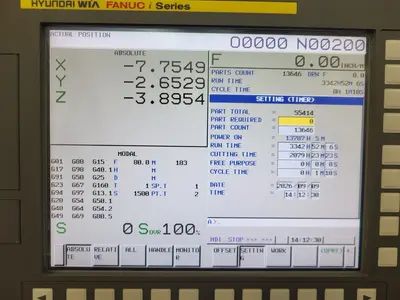

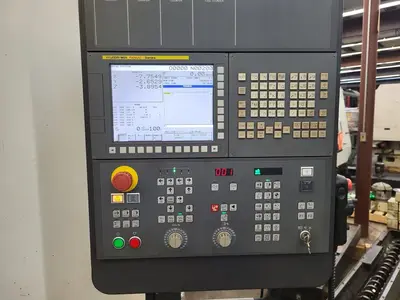

Fanuc i Series CNC Control

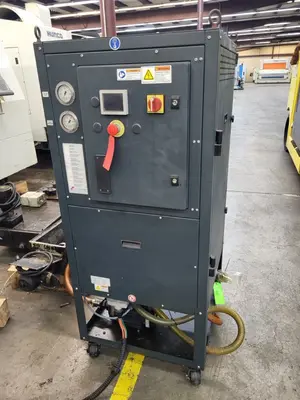

High Pressure Coolant Unit
Spindle Chiller
Mist Buster Unit

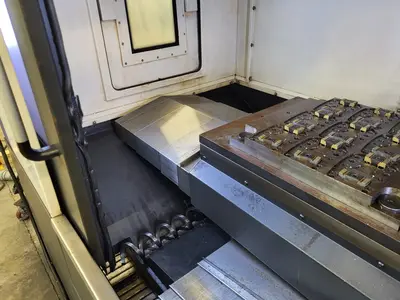

Dual Chip Augers
30 Position Side Mount Tool Changer

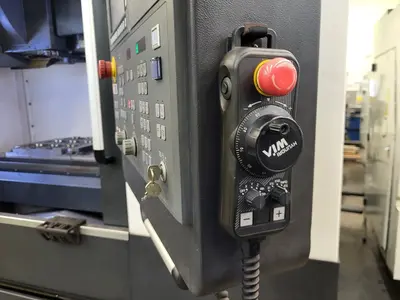

Remote Jog Wheel

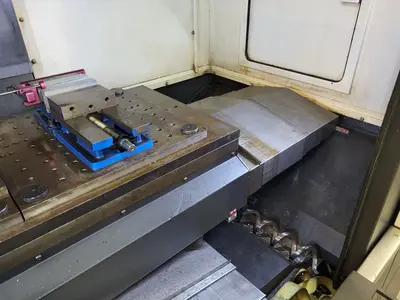

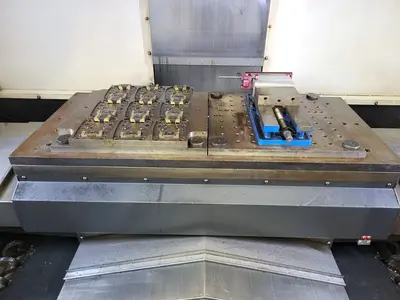

Fixture plate & Vise
Chip Conveyor
Vertical Machining Center, used condition. Features 43.3" X, 22" Y, 20.5" Z axis travel; 20 HP, 8,000 RPM, 40 spindle taper; Fanuc i Series CNC, high-pressure coolant, and 2,200 lbs max table load. Equipped with spindle chiller, mist buster, chip conveyor.
X Axis Travel: 43.3″
Y Axis Travel: 22″
Z Axis Travel: 20.5″
Table Size: 49.2″ x 22″
Spindle Motor: 20 HP
Spindle Speed: 8,000 RPM
Spindle Taper: 40
Auto Tool Changer: 30 Position SMTC
Rapid Rate X Axis: 1,575 IPM
Rapid Rate Y Axis: 1,575 IPM
Rapid Rate Z Axis: 1,417 IPM
Max Table Load: 2,200 LBS
Electrical Requirements: 220 V; 3 Ph; 60 Hz
Approx Weight: 16,315 lbs
Approx Cutting Time: 2,079 Hours
Fanuc i Series CNC Control
High Pressure Coolant Unit
Spindle Chiller
Mist Buster Unit
Dual Chip Augers
30 Position Side Mount Tool Changer
Remote Jog Wheel
Fixture plate & Vise
Chip Conveyor
