Max Workpiece Length 40"
Max Turning Diameter Over Bed 18"
Chuck Size 10"
X-Axis Travel 8.6"
Z-Axis Travel 40"
X-Axis Rapid Traverse Rate 295 in/min.
Z-Axis Rapid Traverse Rate 394 in/min.
Spindle Nose A2-5
Spindle Bore 2.08"
Spindle Through Hole 2.08"
Tailstock Quill Taper 4.7
Main Motor Power 7.5 hp
Electrics 460 V, 3 Ph
Weight 4,500 lbs
Dimensions 93"x 52"x 69"

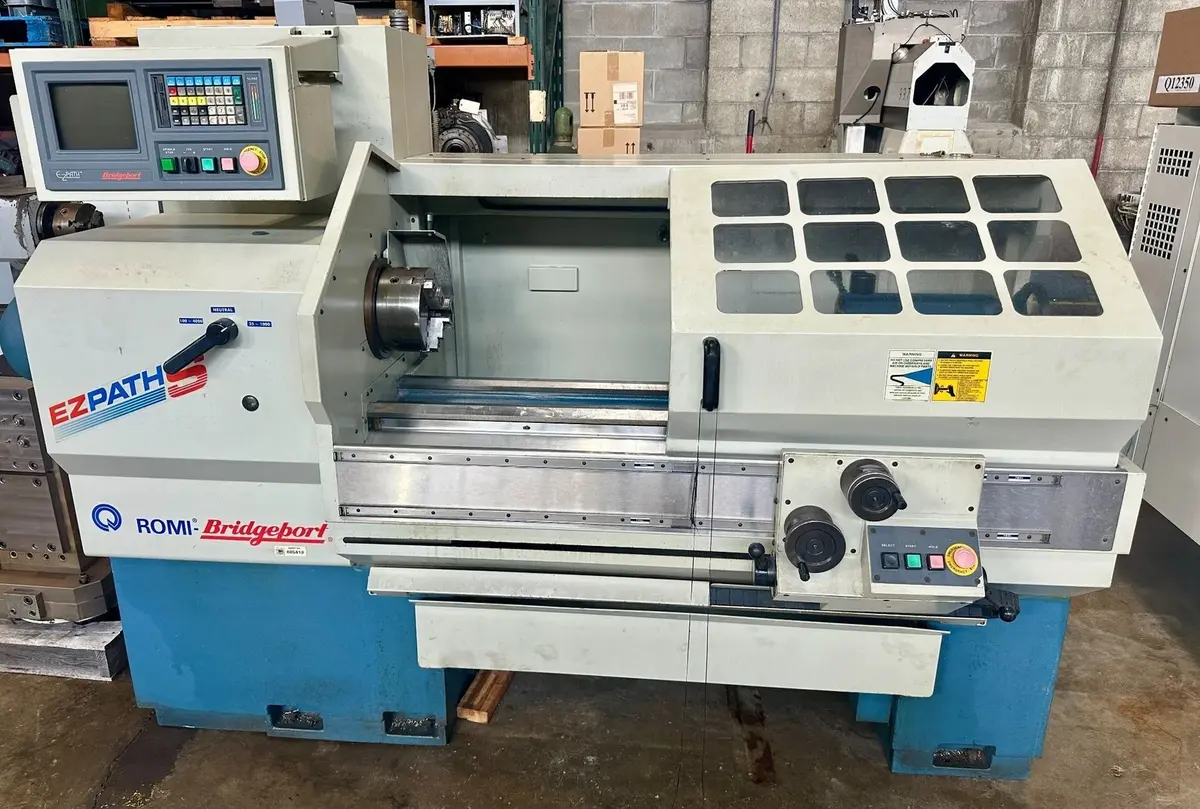

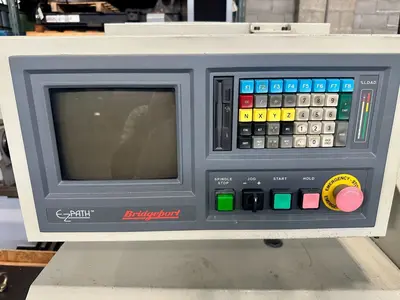

Bridgeport EZ Path S CNC Control, 10" 3-Jaw Chuck, 40" Between Centers, 4000 Max RPM Spindle, Coolant Pump, Chip Pan.
This equipment is currently unavailable. Similar equipment available now is shown below.
