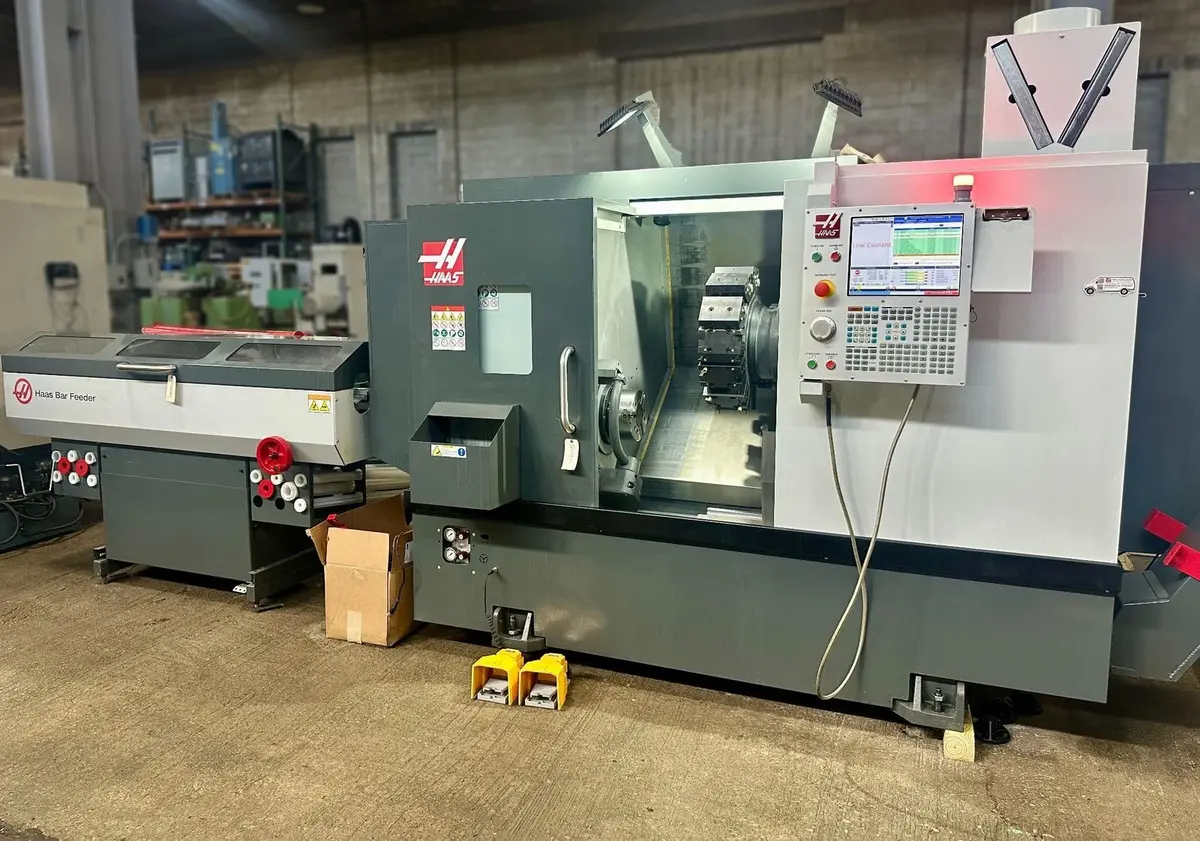

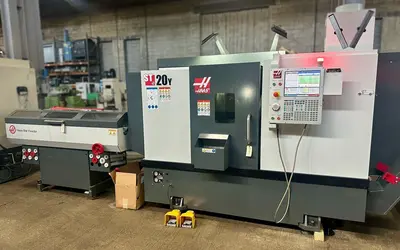

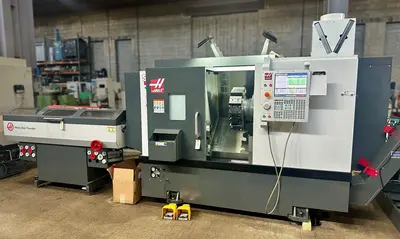

2022 HAAS ST-20Y w/ HAAS BARFEEDER
Have one to sell?
ConditionUsed
1 available
Used CNC Lathe with HAAS Bar Feeder. Features 8" main chuck, 6" sub spindle, 2.5" bar capacity. Max RPM: 4,000/5,000. Travel: X 8.4", Y ±2", Z 22.5". Equipped with high-pressure coolant, lighting.
# Axis 4
Main Spindle Chuck Size 8"
Max Turning Diameter 11.75"
Max Turning Length 22.5"
# Turrets 1
X-Axis (Cross Travel: Turret) 8.4"
Z-Axis (Longitudinal Travel: Turret)22.5"
Y-Axis (Travel of Turret) 2"
C-Axis (Indexing Pos.: Main Spindle) .001
Max Bar Capacity 2.5"

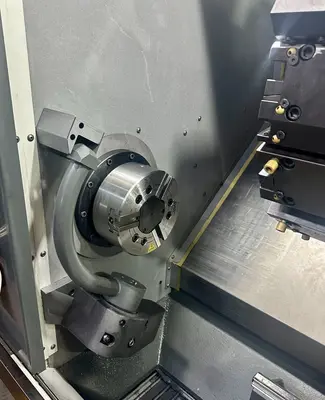

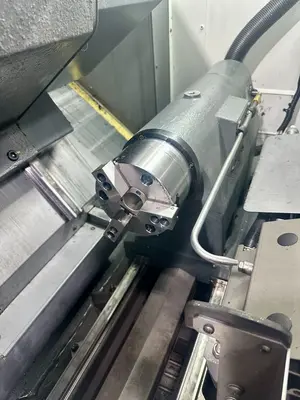

Sub-Spindle Chuck Size 6"
Sub-Spindle Speed Range 5,000 RPM
Max Live Tooling Speed 6,000 RPM
Upper Turret Positions 24
Electrics 220/3/60
Weight 12,000 lbs
Dimensions 144" x 90" x 94"

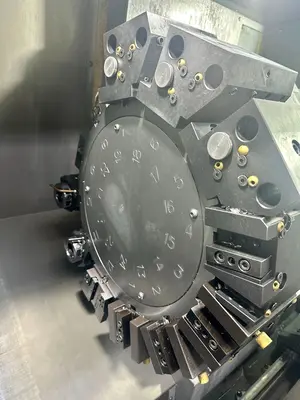

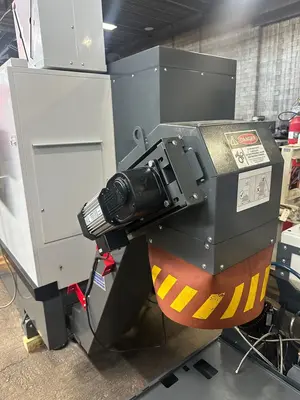

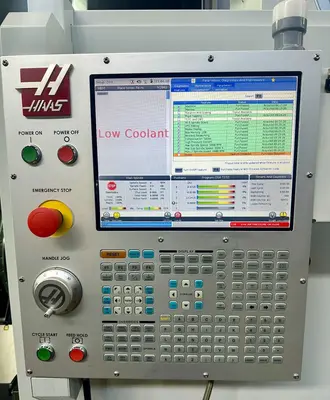

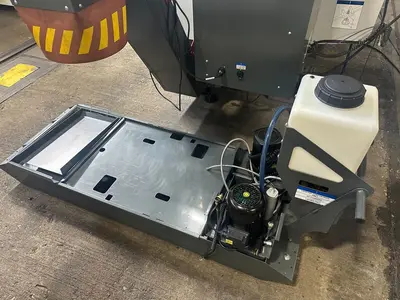

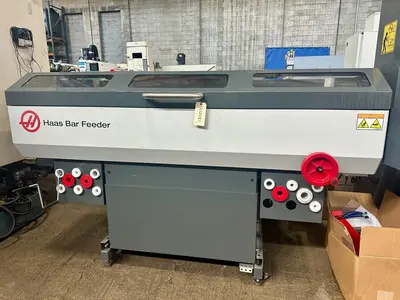

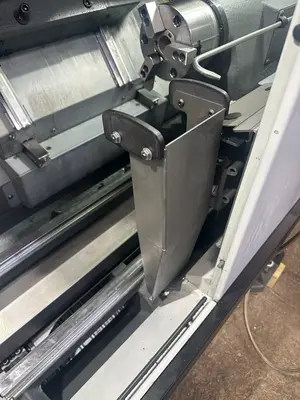

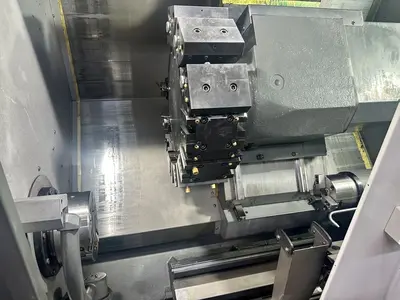

Haas CNC Control, 8" Main Chuck Max RPM 4,000 RPM, 6" Finishing Sub Spindle Max RPM 5,000, Max Swing 21", Max Cutting Length 22.5", 2.5" Bar Capacity Travels: X-Axis 8.4", Y-Axis ± 2", Z-Axis 22.5", C-Axis, 24 Station BMT65 Turret w/ 6,000 RPM Live Tooling, High Pressure Coolant, Coolant Chiller, Automatic Coolant Refill, Enclosure Exhaust System, High Intensity Lighting, Chuck Air Blast, Sub Spindle Air Blast, Parts Catcher, WIFI Camera, Aux Coolant Filter, Haas Bar Feeder V2, 55 Gallon Coolant Tank & Chip Conveyor, Live Tooling.
Used CNC Lathe with HAAS Bar Feeder. Features 8" main chuck, 6" sub spindle, 2.5" bar capacity. Max RPM: 4,000/5,000. Travel: X 8.4", Y ±2", Z 22.5". Equipped with high-pressure coolant, lighting.
# Axis 4
Main Spindle Chuck Size 8"
Max Turning Diameter 11.75"
Max Turning Length 22.5"
# Turrets 1
X-Axis (Cross Travel: Turret) 8.4"
Z-Axis (Longitudinal Travel: Turret)22.5"
Y-Axis (Travel of Turret) 2"
C-Axis (Indexing Pos.: Main Spindle) .001
Max Bar Capacity 2.5"
Sub-Spindle Chuck Size 6"
Sub-Spindle Speed Range 5,000 RPM
Max Live Tooling Speed 6,000 RPM
Upper Turret Positions 24
Electrics 220/3/60
Weight 12,000 lbs
Dimensions 144" x 90" x 94"
Haas CNC Control, 8" Main Chuck Max RPM 4,000 RPM, 6" Finishing Sub Spindle Max RPM 5,000, Max Swing 21", Max Cutting Length 22.5", 2.5" Bar Capacity Travels: X-Axis 8.4", Y-Axis ± 2", Z-Axis 22.5", C-Axis, 24 Station BMT65 Turret w/ 6,000 RPM Live Tooling, High Pressure Coolant, Coolant Chiller, Automatic Coolant Refill, Enclosure Exhaust System, High Intensity Lighting, Chuck Air Blast, Sub Spindle Air Blast, Parts Catcher, WIFI Camera, Aux Coolant Filter, Haas Bar Feeder V2, 55 Gallon Coolant Tank & Chip Conveyor, Live Tooling.
