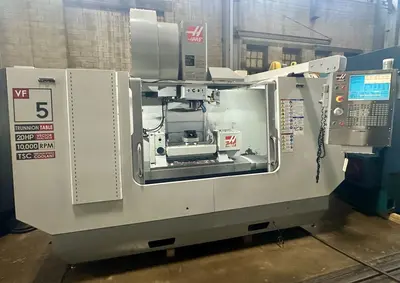

2008 HAAS VF-5D/40
Have one to sell?
ConditionUsed
1 available

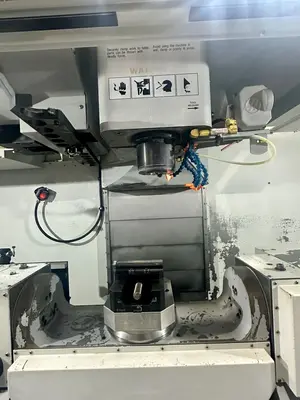

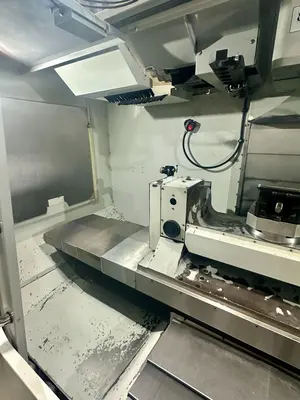

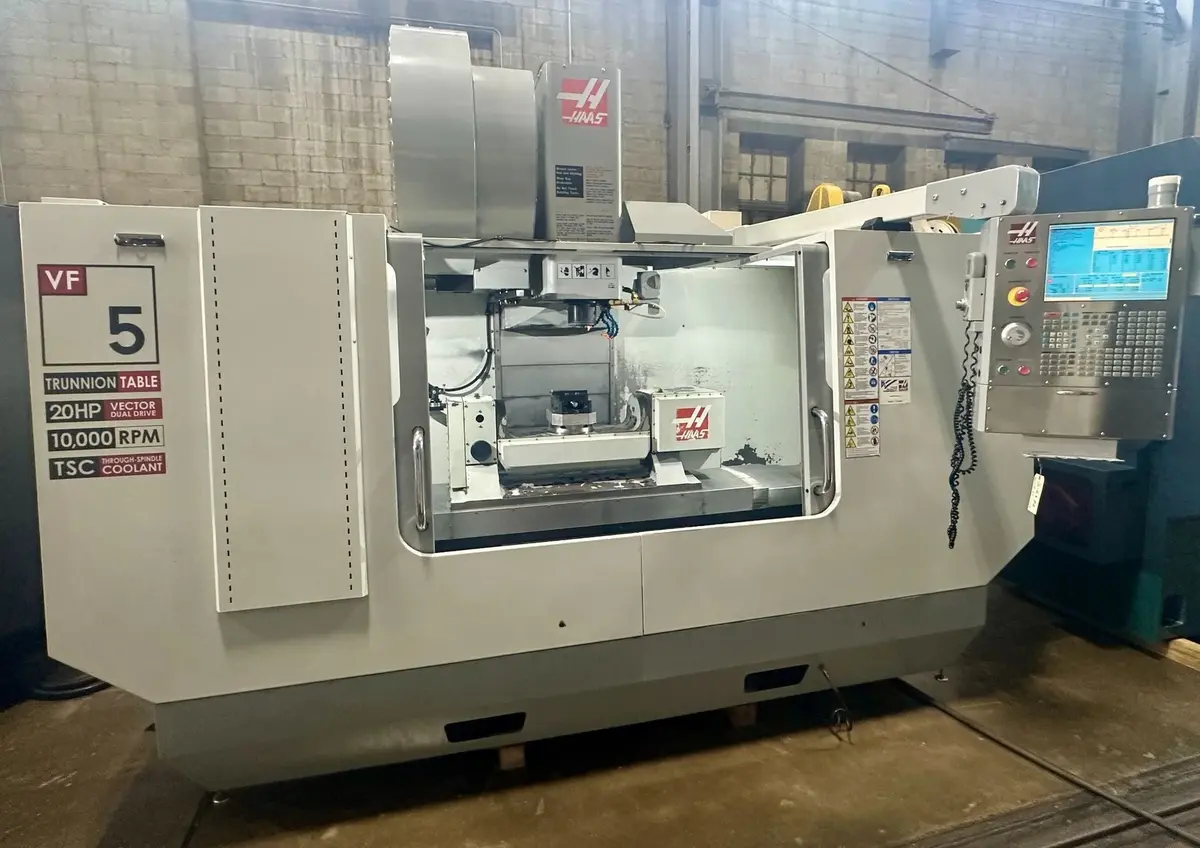

Used Vertical Machining Center, 5-axis, 52"x23" table, 20 HP, 10,000 RPM, 24 tool ATC, Haas CNC, C-Axis 360°, chip auger, coolant system, 15,400 lbs. Dimensions: 137"x100"x104". Electrics: 230/3/60. 11,552 hours.
# Axis 5
Table-L 52"
Table-W 23"
Table Diameter (Round)6"
Max Table Load Capacity 4,000 lb
X-Axis (Longitudinal Travel) 50"
Y-Axis (Cross Travel) 26"
Z-Axis (Vertical Travel) 25"
Max Clearance Tabletop to Spindle Nose 29.2"
Min Clearance Tabletop to Spindle Nose 4.2"
Feed Rates (X, Y, & Z Axis) 500 in/min.
X-Axis Feed Rate 500 in/min.
Y-Axis Feed Rate 500 in/min.
Z-Axis Feed Rate 500 in/min.
Rapid Traverse Rate (X, Y, & Z Axis) 710 in/min.
X-Axis Rapid Traverse Rate 710 in/min.
Y-Axis Rapid Traverse Rate 710 in/min.
Z-Axis Rapid Traverse Rate 710 in/min.
Spindle Power 20 hp
Max Spindle Speed 10,000 RPM
Spindle Taper CAT 40
Torque, Up To 75 bf

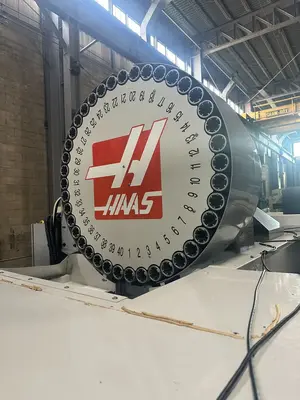

Automatic Tool Changer Capacity (ATC) 24
Max Tool Diameter 3.5"
Max Tool Weight 12 lb

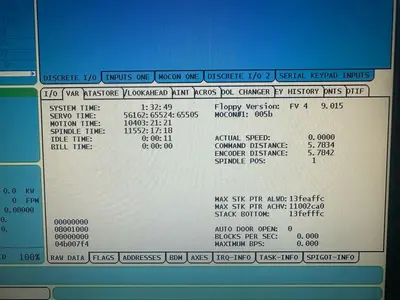

Machine Hours 11552
Electrics 230/3/60
Weight 15,400 lbs.
Dimensions 137" X 100" X 104"

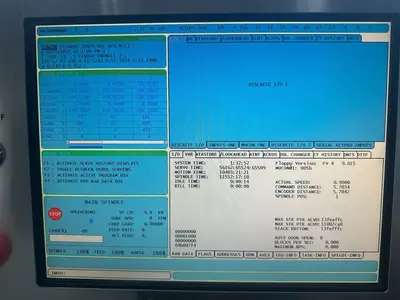

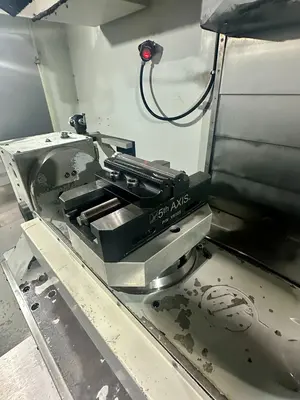

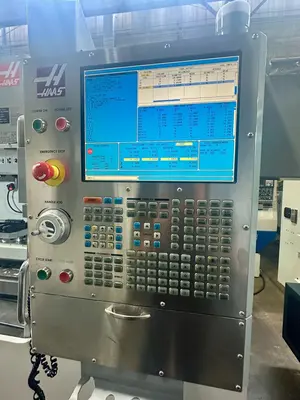

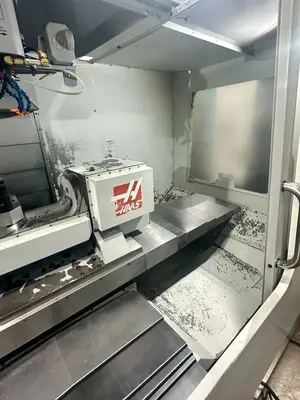

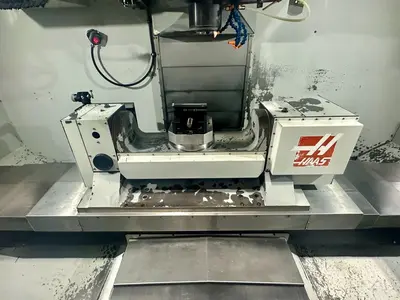

Haas CNC Control, C-Axis-=360 Degrees, CAT 40 Taper, 10,000 Max Spindle RPM, 20HP Spindle, 24 ATC, Chip Auger & Coolant System, Coolant Through Spindle, Automatic Tool Changer Style Side-Mount.
Used Vertical Machining Center, 5-axis, 52"x23" table, 20 HP, 10,000 RPM, 24 tool ATC, Haas CNC, C-Axis 360°, chip auger, coolant system, 15,400 lbs. Dimensions: 137"x100"x104". Electrics: 230/3/60. 11,552 hours.
# Axis 5
Table-L 52"
Table-W 23"
Table Diameter (Round)6"
Max Table Load Capacity 4,000 lb
X-Axis (Longitudinal Travel) 50"
Y-Axis (Cross Travel) 26"
Z-Axis (Vertical Travel) 25"
Max Clearance Tabletop to Spindle Nose 29.2"
Min Clearance Tabletop to Spindle Nose 4.2"
Feed Rates (X, Y, & Z Axis) 500 in/min.
X-Axis Feed Rate 500 in/min.
Y-Axis Feed Rate 500 in/min.
Z-Axis Feed Rate 500 in/min.
Rapid Traverse Rate (X, Y, & Z Axis) 710 in/min.
X-Axis Rapid Traverse Rate 710 in/min.
Y-Axis Rapid Traverse Rate 710 in/min.
Z-Axis Rapid Traverse Rate 710 in/min.
Spindle Power 20 hp
Max Spindle Speed 10,000 RPM
Spindle Taper CAT 40
Torque, Up To 75 bf
Automatic Tool Changer Capacity (ATC) 24
Max Tool Diameter 3.5"
Max Tool Weight 12 lb
Machine Hours 11552
Electrics 230/3/60
Weight 15,400 lbs.
Dimensions 137" X 100" X 104"
Haas CNC Control, C-Axis-=360 Degrees, CAT 40 Taper, 10,000 Max Spindle RPM, 20HP Spindle, 24 ATC, Chip Auger & Coolant System, Coolant Through Spindle, Automatic Tool Changer Style Side-Mount.
