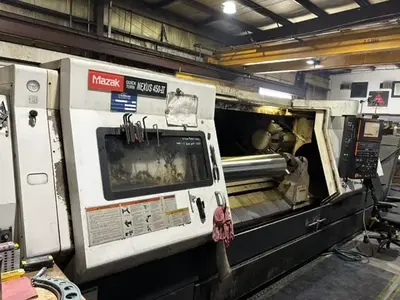

2008 Mazak Quick Turn Nexus 450-II CNC Lathe with Big Bore
Have one to sell?
ConditionUsed
1 available
This 2008 Mazak Quick Turn Nexus 450-II CNC lathe has a 7.28" big bore spindle with an 18" thru-hole chuck package, programmable tailstock, and Mazatrol Matrix Nexus control. It offers 33.27" of swing over 80.07" of machining length, with a 50 HP, 2,000 RPM spindle, 4.5" bar capacity.
Spindle Bore: 7.28" (not with current chuck set up)
18" Thru-Hole Chuck Package (reduces bar capacity from the 7.28" spindle bore to 4.5"; a larger thru-hole chuck would allow larger bar stock)
Programmable Tailstock
Automatic Tool Eye
250 Gallon Primary Coolant Tank
12.1" Color LCD
USB Interface (2-Port)
LAN Port
User Macro (600 Common Variables)
EIA/ISO Input Function
Sequence Number Comparison Stop Function
Multitap Transformer
This 2008 Mazak Quick Turn Nexus 450-II CNC lathe has a 7.28" big bore spindle with an 18" thru-hole chuck package, programmable tailstock, and Mazatrol Matrix Nexus control. It offers 33.27" of swing over 80.07" of machining length, with a 50 HP, 2,000 RPM spindle, 4.5" bar capacity.
Imperial
| Swing | 33.27" |
| Machining Length | 80.07" |
| # Axis | 2 |
| Chuck Size | 18" |
| Bar Capacity | 4.5" |
| Power | 50 hp |
| Max RPM | 2,000 RPM |
| Tailstock | Yes |
| Control | CNC (Mazatrol Matrix) |
Spindle Bore: 7.28" (not with current chuck set up)
18" Thru-Hole Chuck Package (reduces bar capacity from the 7.28" spindle bore to 4.5"; a larger thru-hole chuck would allow larger bar stock)
Programmable Tailstock
Automatic Tool Eye
250 Gallon Primary Coolant Tank
12.1" Color LCD
USB Interface (2-Port)
LAN Port
User Macro (600 Common Variables)
EIA/ISO Input Function
Sequence Number Comparison Stop Function
Multitap Transformer
