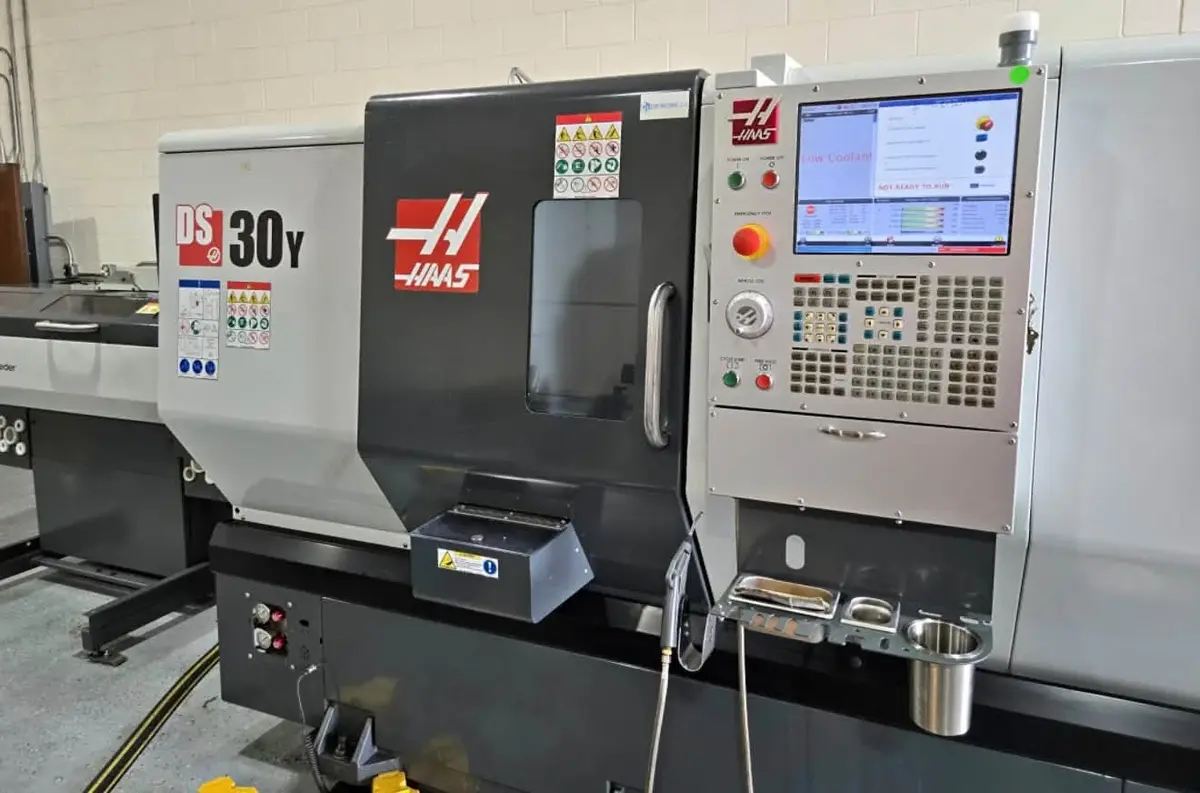

2019 HAAS DS-30Y
Have one to sell?
ConditionUsed
1 available
Used CNC Lathe features 4-axis capabilities, 31.75" swing, and 18" turning diameter. Equipped with live tooling, sub spindle, and automatic tool presetter. Includes WiFi, Ethernet, and HaasConnect for remote monitoring. Running hours: 7100.
Automatic Tool Presetter
Belt-Type Chip Conveyor, Lathe
55-Gallon Coolant Tank
CNC Control Cabinet Cooler
Standard Program Memory, 1 GB
Early Power-Failure Detection Module
Ethernet Interface
HaasConnect: Remote monitoring
Media Display M-Code; M130
Rigid Tapping
Spindle Orientation
Visual Part Programming System
WiFi Connection for the Haas Control
Parts Catcher
10" Hydraulic Chuck, A2-6
8.3" Hydraulic Chuck, A2-5
3" (76 mm) Bar Option, SS
Inch Sub-Spindle 24-Stn Tool K
Inch Measurement Units
4800-rpm, A2-5, 20 hp, 2.0" sub
7100 Running hours
Haas Bar Feeder with liners
Used CNC Lathe features 4-axis capabilities, 31.75" swing, and 18" turning diameter. Equipped with live tooling, sub spindle, and automatic tool presetter. Includes WiFi, Ethernet, and HaasConnect for remote monitoring. Running hours: 7100.
Imperial
| Swing | 31.75" |
| Machining Length | 584.2 mm |
| # Axis | 4 |
| Chuck Size | 10" |
| Bar Capacity | 2" |
| Power | 30 hp |
| Max RPM | 4,800 RPM |
| Turning Dia | 18" |
| Tailstock | No |
| Live Tooling | Yes |
| Sub Spindle | Yes |
| Control | CNC (HAAS) |
Automatic Tool Presetter
Belt-Type Chip Conveyor, Lathe
55-Gallon Coolant Tank
CNC Control Cabinet Cooler
Standard Program Memory, 1 GB
Early Power-Failure Detection Module
Ethernet Interface
HaasConnect: Remote monitoring
Media Display M-Code; M130
Rigid Tapping
Spindle Orientation
Visual Part Programming System
WiFi Connection for the Haas Control
Parts Catcher
10" Hydraulic Chuck, A2-6
8.3" Hydraulic Chuck, A2-5
3" (76 mm) Bar Option, SS
Inch Sub-Spindle 24-Stn Tool K
Inch Measurement Units
4800-rpm, A2-5, 20 hp, 2.0" sub
7100 Running hours
Haas Bar Feeder with liners
