X-Axis:25.59"
Y-Axis:15.75"
Z-Axis:12"
Table Size:23.6" x 11.8"
Spindle Speed:16,000 RPM
Spindle Taper:BT 30
Spindle Motor (10 Min / Cont):9.8 / 6.5 HP
Tools:22
Table Load Capacity:265 lbs.
Rapid Traverse Rates:1969 IPM
Max Tapping Speed:6000 RPM
Max Tool Diameter:3.1"
Max Tool Length:7.9"
Max Tool Weight:6.6 lbs.
Machine Weight:6000 lbs.
Pallet Change Time:2.8 Seconds
Spindle Nose To Table Top:7.9" – 19.9"
Tool Change Time (T – T / C – C):0.8 / 1.6 Seconds

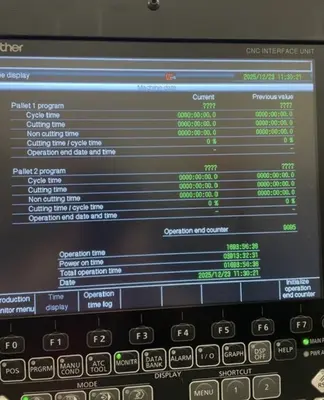

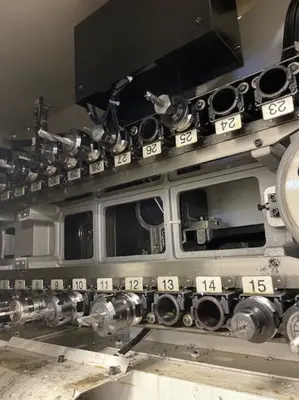

Brother CNC-C00 Control, 12.1" Color LCD, USB Port, Ethernet Function, Spin-Type High Speed Two Pallet Changer, 40 Position Turret, 16000 RPM Spindle Speed, T200A Fourth Axis Rotary Table, Through Spindle Coolant (1000 PSI), Tool Presetter, Renishaw Omp40 Probe, Lns Turbo Mh250 Chip Conveyor, Mist Collector, Remote Jog Handle, Work Light Kit, High Capacity Coolant Tank.
This equipment is currently unavailable. Similar equipment available now is shown below.
