2013 OKUMA GENOS L200E-MY
Have one to sell?
ConditionUsed
1 available

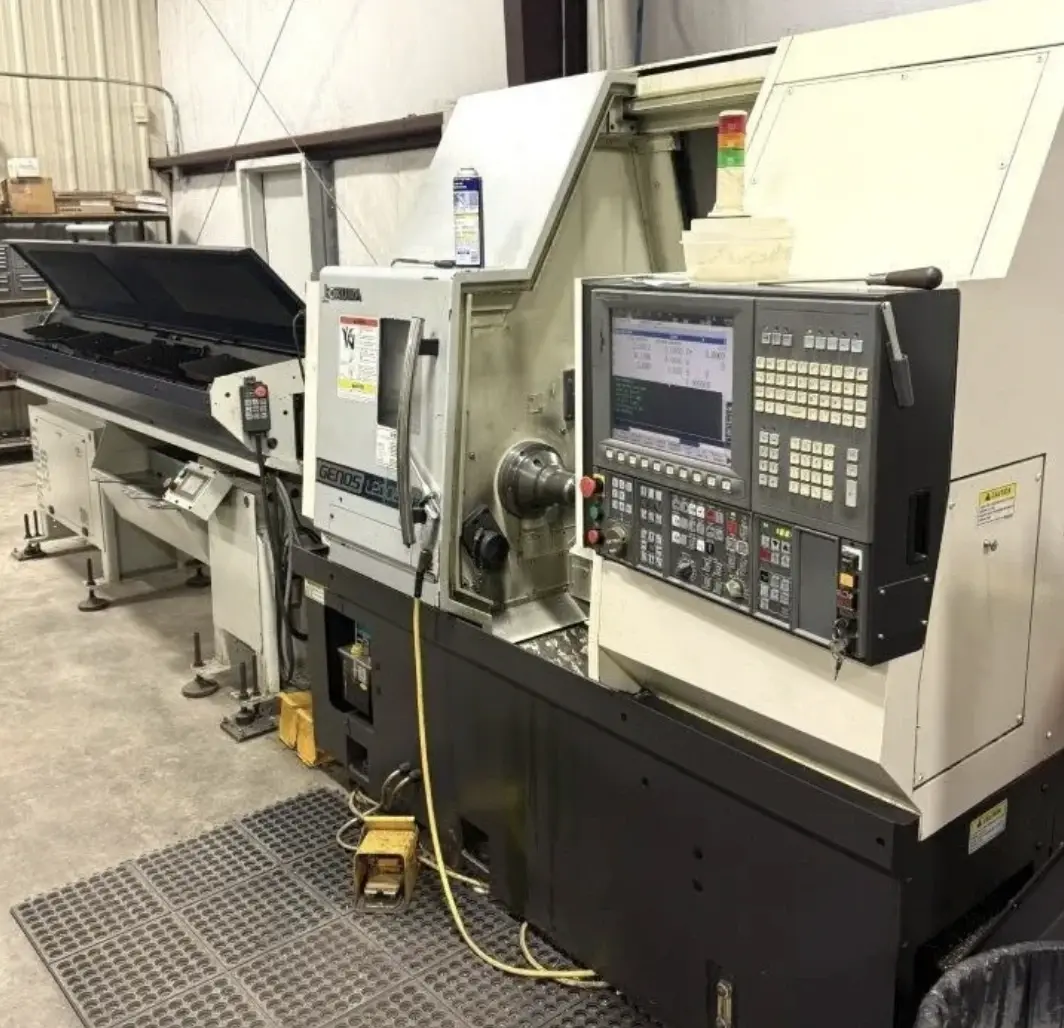

Used Multi-Axis CNC Lathe. Max cutting diameter 199.9 mm, 12-position turret, live milling, Y-axis, and C-axis indexing. Equipped with 8' Edge Patriot 338 barfeeder, 16C collet set, and more. Cutting hours: 4,655.
MAX CUTTING DIAMETER 199.9 mm
MAX CUTTING LENGTH 379.98 mm
DISTANCE BETWEEN CENTERS 533.4 mm
X-AXIS TRAVEL 165.1 mm
Y-AXIS TRAVEL ±1.57" to ±1.96"
Z-AXIS TRAVEL 400.05 mm
C-AXIS INDEXING 360°
BAR CAPACITY 43.18 mm
SPINDLE BORE 66.04 mm
SPINDLE NOSE A2-6
SPINDLE MOTOR 11.2 kW
SPINDLE SPEED 4,500 RPM
RAPID TRAVERSE RATE - X-AXIS 20 m/min.
RAPID TRAVERSE RATE - Y-AXIS 10 m/min.
RAPID TRAVERSE RATE - Z-AXIS 25 m/min.

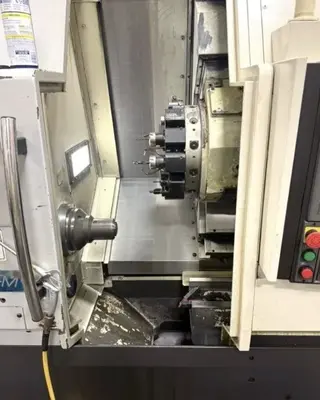

TURRET CAPACITY 12 POSITION
LIVE MILLING SPEED 6,000 RPM
OKUMA OSP-P300L-R CNC CONTROL
LIVE MILLING
Y-AXIS

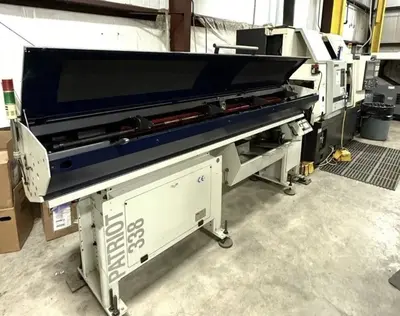

8' EDGE PATRIOT 338 BARFEEDER (PUSH & PULL ACTION)
16C COLLET
8" 3-JAW HYDRAULIC CHUCK (LIKE NEW)
PROGRAMMABLE TAILSTOCK
TOUCH SETTER (REMOVEABLE)
CHIP CONVEYOR
COOLANT SYSTEM
220V
** LIVE TOOL HOLDERS INCLUDED:
(2) AXIAL
(2) RADIAL
** TOOLING INCLUDED:
16C COLLET SET (3/16 - 1 5/8")
HARD JAWS & SOFT JAWS
** ORIGINAL OWNER

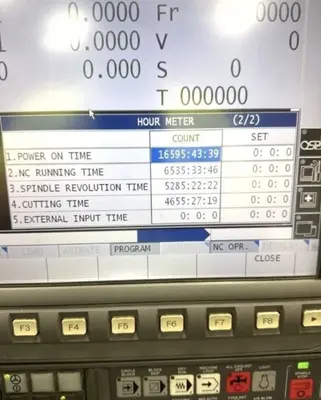

** AS OF AUGUST 2026 - CUTTING TIME: 4,655 HOURS
** MACHINE CUTTING PRIMARILY: 303 STAINLESS STEEL & BRASS
