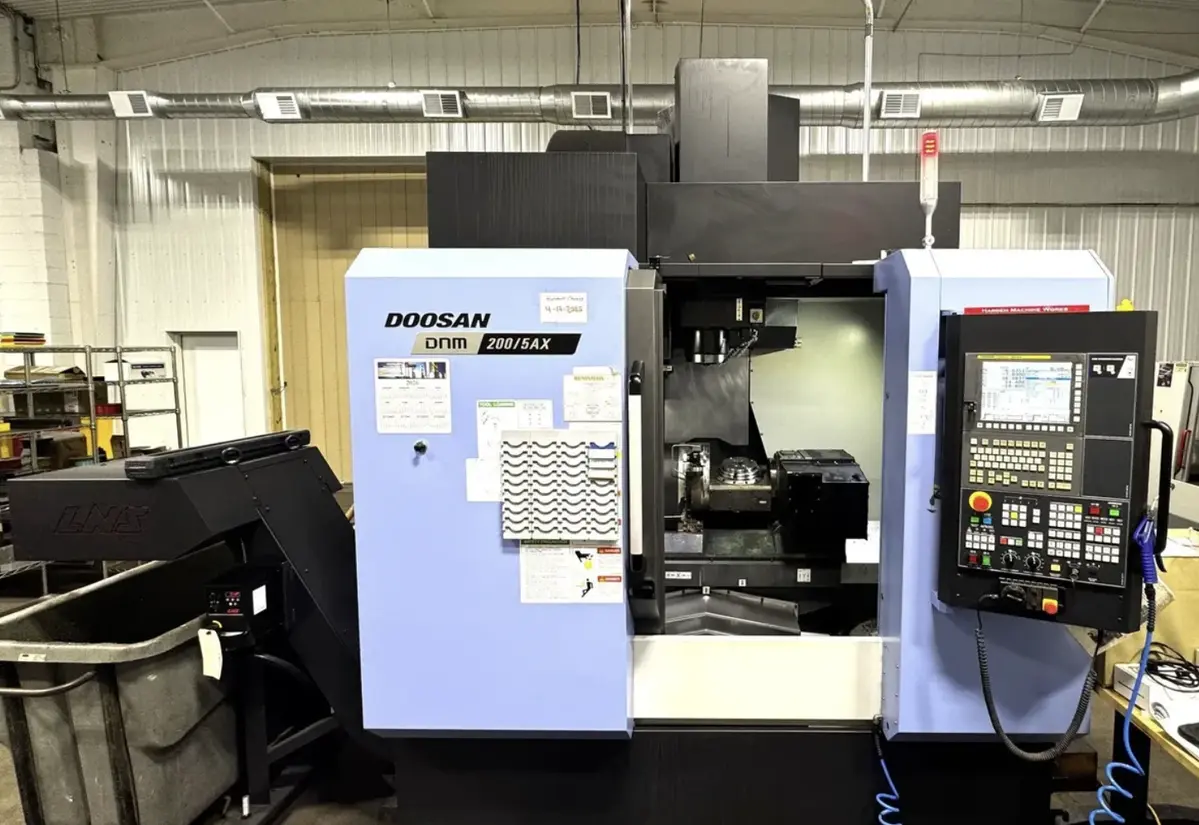

2017 DOOSAN DNM 200/5AX
Have one to sell?
ConditionUsed
1 available
Used 5-axis vertical machining center; features DOOSAN-FANUC i CNC, 40-tool ATC, 12,000 RPM spindle, Renishaw probe, and more. X, Y, Z travel: 400.05 mm, 435.1 mm, 500.13 mm. Cutting primarily S7 & 4140, 3,728 cutting hours.
TABLE LENGTH 199.9 mm
TABLE WIDTH 199.9 mm
X-AXIS TRAVEL 400.05 mm
Y-AXIS TRAVEL 435.1 mm
Z-AXIS TRAVEL 500.13 mm
A-AXIS ROTATION +30° -120°
C-AXIS ROTATION 360°
SPINDLE SPEED 12,000 RPM
SPINDLE MOTOR 18.6 kW
SPINDLE TAPER CAT 40 (BIG PLUS)
TOOL CAPACITY (ATC) 40
RAPID TRAVERSE - X AXIS 36 m/min.
RAPID TRAVERSE - Y AXIS 36 m/min.
RAPID TRAVERSE - Z-AXIS 30 m/min.
APPROX MACHINE WEIGHT 5,669.9 kg
DOOSAN-FANUC i SERIES CNC CONTROL

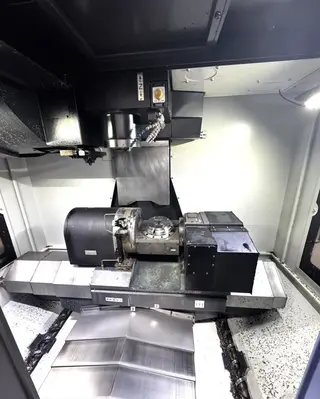

BUILT-IN 5TH AXIS TRUNNION ROTARY TABLE (3+2)
THROUGH SPINDLE COOLANT (230 PSI)
RENISHAW WORK PROBE, TOOL SETTER, & RMI
12,000 RPM SPINDLE
40 POSITION AUTOMATIC TOOL CHANGER
CHIP CONVEYOR
COOLANT TANK
OIL SKIMMER
** MACHINE CUTTING PRIMARILY S7 & 4140
** MACHINE MANUFACTURED DATE: JULY, 2017

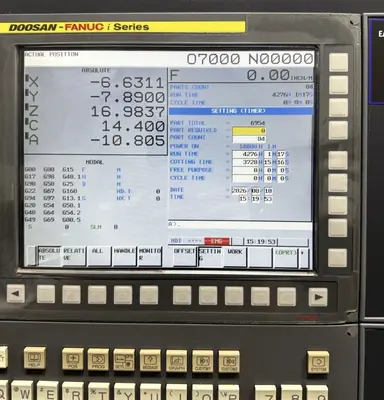

** AS OF AUGUST, 2026 - CUTTING TIME: 3,728 HOURS
Used 5-axis vertical machining center; features DOOSAN-FANUC i CNC, 40-tool ATC, 12,000 RPM spindle, Renishaw probe, and more. X, Y, Z travel: 400.05 mm, 435.1 mm, 500.13 mm. Cutting primarily S7 & 4140, 3,728 cutting hours.
TABLE LENGTH 199.9 mm
TABLE WIDTH 199.9 mm
X-AXIS TRAVEL 400.05 mm
Y-AXIS TRAVEL 435.1 mm
Z-AXIS TRAVEL 500.13 mm
A-AXIS ROTATION +30° -120°
C-AXIS ROTATION 360°
SPINDLE SPEED 12,000 RPM
SPINDLE MOTOR 18.6 kW
SPINDLE TAPER CAT 40 (BIG PLUS)
TOOL CAPACITY (ATC) 40
RAPID TRAVERSE - X AXIS 36 m/min.
RAPID TRAVERSE - Y AXIS 36 m/min.
RAPID TRAVERSE - Z-AXIS 30 m/min.
APPROX MACHINE WEIGHT 5,669.9 kg
DOOSAN-FANUC i SERIES CNC CONTROL
BUILT-IN 5TH AXIS TRUNNION ROTARY TABLE (3+2)
THROUGH SPINDLE COOLANT (230 PSI)
RENISHAW WORK PROBE, TOOL SETTER, & RMI
12,000 RPM SPINDLE
40 POSITION AUTOMATIC TOOL CHANGER
CHIP CONVEYOR
COOLANT TANK
OIL SKIMMER
** MACHINE CUTTING PRIMARILY S7 & 4140
** MACHINE MANUFACTURED DATE: JULY, 2017
** AS OF AUGUST, 2026 - CUTTING TIME: 3,728 HOURS
