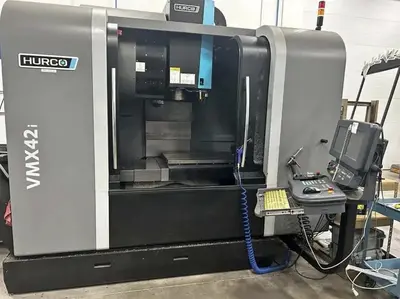

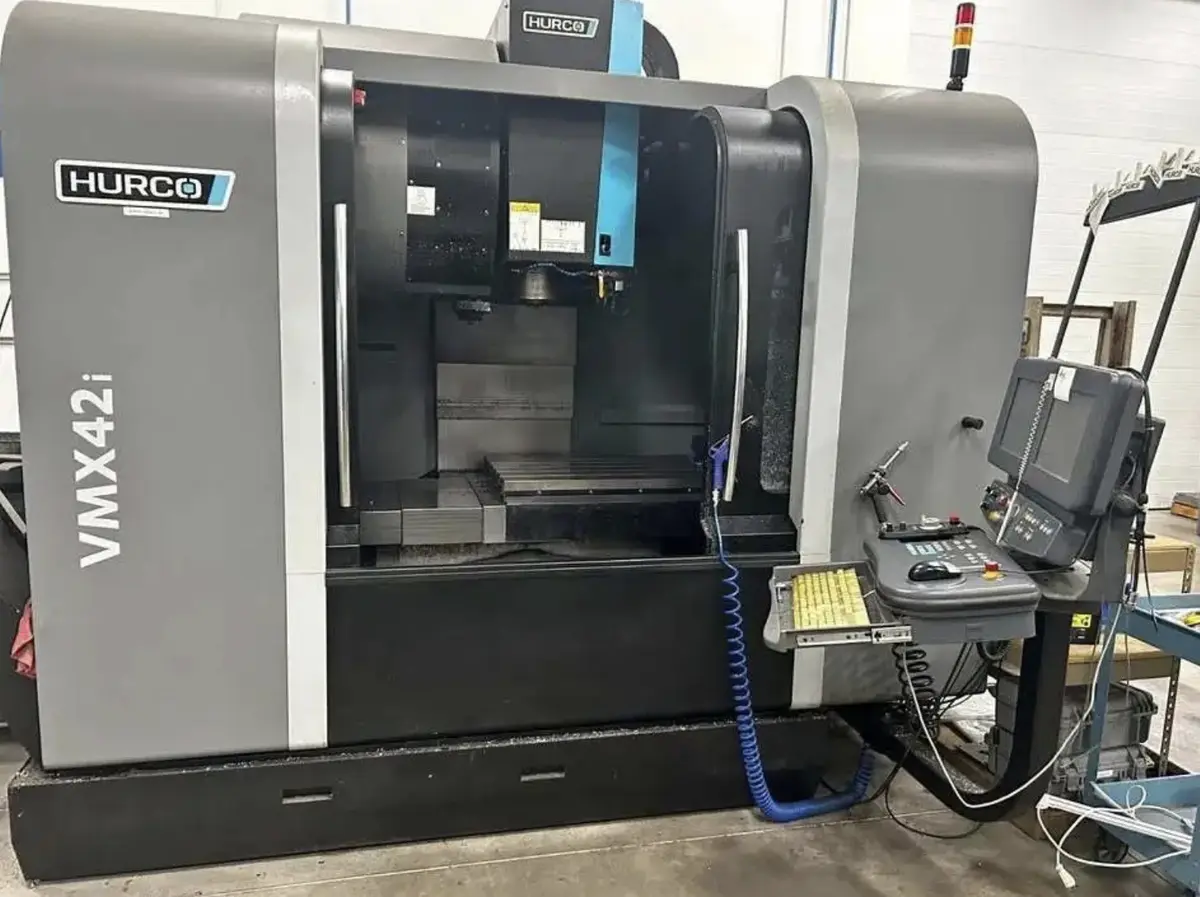

2015 HURCO VMX42I
Have one to sell?
ConditionUsed
1 available
Vertical Machining Center, used, features 42" X, 24" Y, 24" Z travels, 12,000 RPM spindle speed, 30 ATC, dual-monitor Hurco Max 4 Console, Ultimotion, and chip conveyor. Max worktable weight capacity 3,850 lbs.
X Travel:42"
Y Travel:24"
Z Travel:24"
Spindle Nose To Table:6.0 in (152 mm)
Table Size:50 x 24 in (1,270 x 610 mm)
T-Slot Size:5 x .71 in (5 x 18 mm)
Max. Weight On Table:3,850 lb (1,750 kg)
Spindle Speed:12,000 rpm
Spindle HP:24 hp (18 kW)
Spindle Torque:175 ft. lbs @ 1450 rpm (237 Nm @ 1450 rpm)
Max RPM:12,000 RPM
Taper:40
# ATC:30
Tool Type:CAT 40 / Big Plus®
Rapid Traverse X,Y,Z Axis:1,181 / 1,181 / 787 in/min (30, 30, 20 m/min)
Max Programmable Feedrate:787 in/min (20 m/min)
Max. Operating Floor Space:152.1 x 146.4 in (3,864 x 3,719 mm)
Machine Height:114.8 in (2,917 mm)
Dual-Monitor Hurco Max 4 Console, Max Classic Adv Ver Graphics, Isnc, Ncpp, Selectsurface Finish Quality, Ultimotion, Rigid Tap, Tool Change Optimization, Through Spindle Coolant, Chip Conveyor
Vertical Machining Center, used, features 42" X, 24" Y, 24" Z travels, 12,000 RPM spindle speed, 30 ATC, dual-monitor Hurco Max 4 Console, Ultimotion, and chip conveyor. Max worktable weight capacity 3,850 lbs.
X Travel:42"
Y Travel:24"
Z Travel:24"
Spindle Nose To Table:6.0 in (152 mm)
Table Size:50 x 24 in (1,270 x 610 mm)
T-Slot Size:5 x .71 in (5 x 18 mm)
Max. Weight On Table:3,850 lb (1,750 kg)
Spindle Speed:12,000 rpm
Spindle HP:24 hp (18 kW)
Spindle Torque:175 ft. lbs @ 1450 rpm (237 Nm @ 1450 rpm)
Max RPM:12,000 RPM
Taper:40
# ATC:30
Tool Type:CAT 40 / Big Plus®
Rapid Traverse X,Y,Z Axis:1,181 / 1,181 / 787 in/min (30, 30, 20 m/min)
Max Programmable Feedrate:787 in/min (20 m/min)
Max. Operating Floor Space:152.1 x 146.4 in (3,864 x 3,719 mm)
Machine Height:114.8 in (2,917 mm)
Dual-Monitor Hurco Max 4 Console, Max Classic Adv Ver Graphics, Isnc, Ncpp, Selectsurface Finish Quality, Ultimotion, Rigid Tap, Tool Change Optimization, Through Spindle Coolant, Chip Conveyor
