2006 FADAL VMC-8030
Have one to sell?
ConditionUsed
1 available

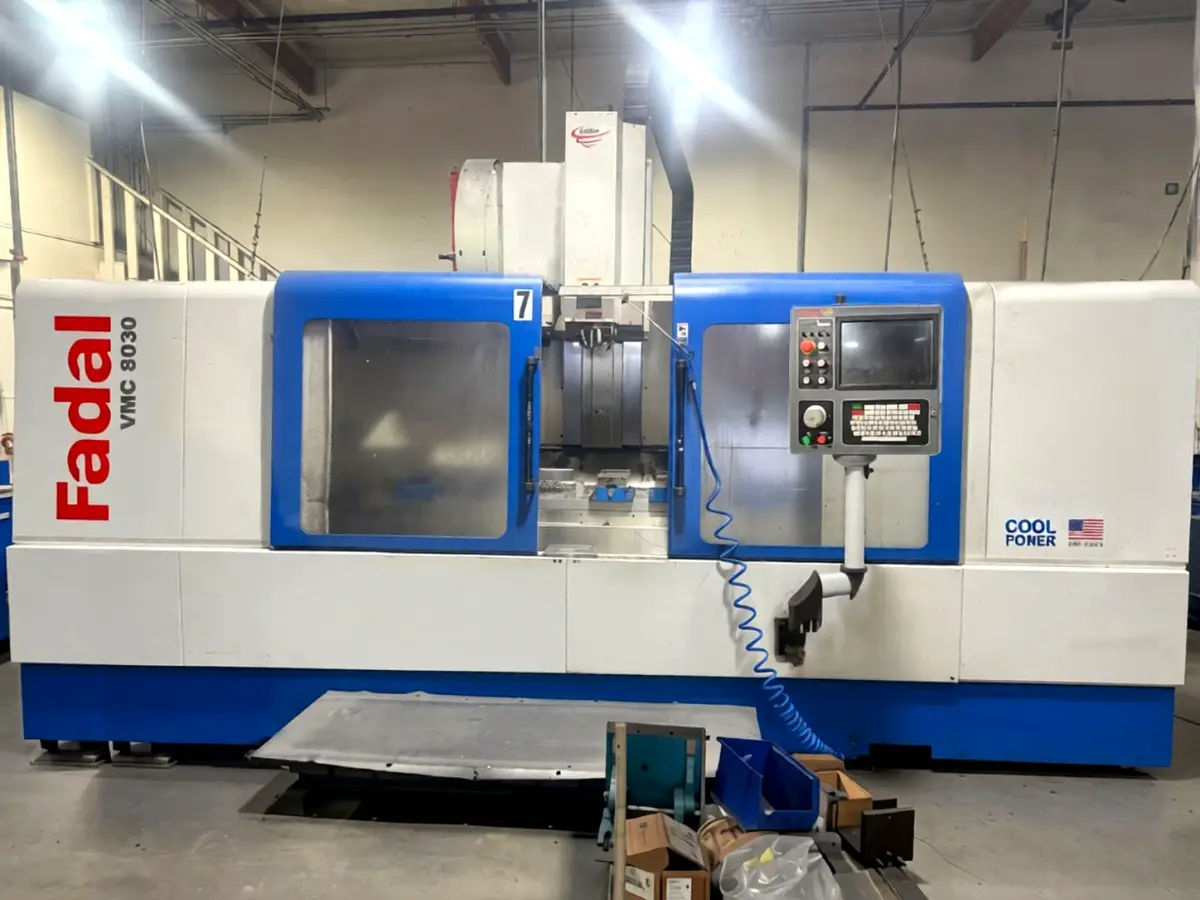

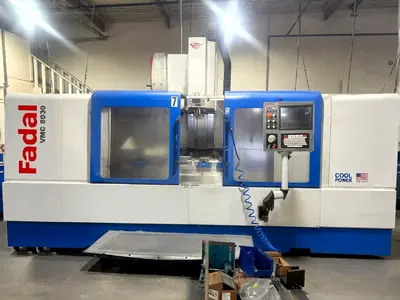

Used Vertical Machining Center. Offering a 22.5 HP motor, 10,000 RPM spindle, CAT-40 taper, and 21-tool ATC. Includes high-speed CPU control and pendant hand control.

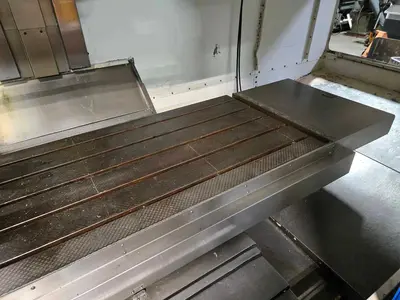

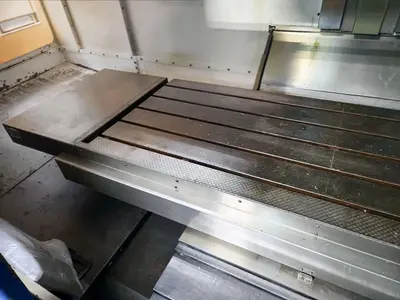

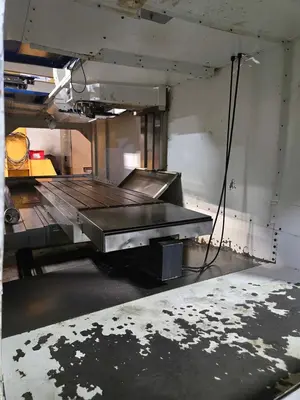

Table size 82.5" x 30"
Floor to table surface 36"
T-Slots (No. x Width x Span) 5 x .687" x 5.5"
Rapid feed rate (X/Y/Z) 400 ipm
Max. Weight on Table 3,751 lbs
Axis Drive Motor (X/Y/Z)
5,000 lbs. thrust
Spindle Torque
220 ft-lbs.
Longitudinal (X axis) 80"
Cross (Y axis) 30"
Vertical (Z axis) 30"
Spindle nose to table 5.5" - 35.5"
Spindle center to column 30"
Main motor 22.5 HP
Spindle Speed / High Torque 40 - 10,000 RPM
Spindle taper No. 40
ATC, Number of tools 21
Machine Width x Depth 209" x 103"
Machine Height 119"
Machine Weight 18,000 lbs
Air pressure requirement 80 PSI, 15 SCFM
Power requirement (3-Phase) 45 Amps, 230 VAC
22.5 HP Spindle Motor
32 Bit High Speed CPU Control

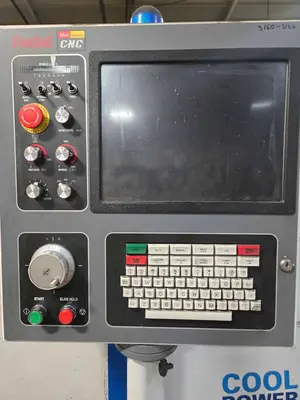

Pendant Hand Control
CAT-40 Spindle Taper
21 Station Automatic Tool Changer
Extra Work Light
High Performance Axis Motors
Box Way Construction
10,000 rpm Spindle
Used Vertical Machining Center. Offering a 22.5 HP motor, 10,000 RPM spindle, CAT-40 taper, and 21-tool ATC. Includes high-speed CPU control and pendant hand control.
Table size 82.5" x 30"
Floor to table surface 36"
T-Slots (No. x Width x Span) 5 x .687" x 5.5"
Rapid feed rate (X/Y/Z) 400 ipm
Max. Weight on Table 3,751 lbs
Axis Drive Motor (X/Y/Z)
5,000 lbs. thrust
Spindle Torque
220 ft-lbs.
Longitudinal (X axis) 80"
Cross (Y axis) 30"
Vertical (Z axis) 30"
Spindle nose to table 5.5" - 35.5"
Spindle center to column 30"
Main motor 22.5 HP
Spindle Speed / High Torque 40 - 10,000 RPM
Spindle taper No. 40
ATC, Number of tools 21
Machine Width x Depth 209" x 103"
Machine Height 119"
Machine Weight 18,000 lbs
Air pressure requirement 80 PSI, 15 SCFM
Power requirement (3-Phase) 45 Amps, 230 VAC
22.5 HP Spindle Motor
32 Bit High Speed CPU Control
Pendant Hand Control
CAT-40 Spindle Taper
21 Station Automatic Tool Changer
Extra Work Light
High Performance Axis Motors
Box Way Construction
10,000 rpm Spindle
