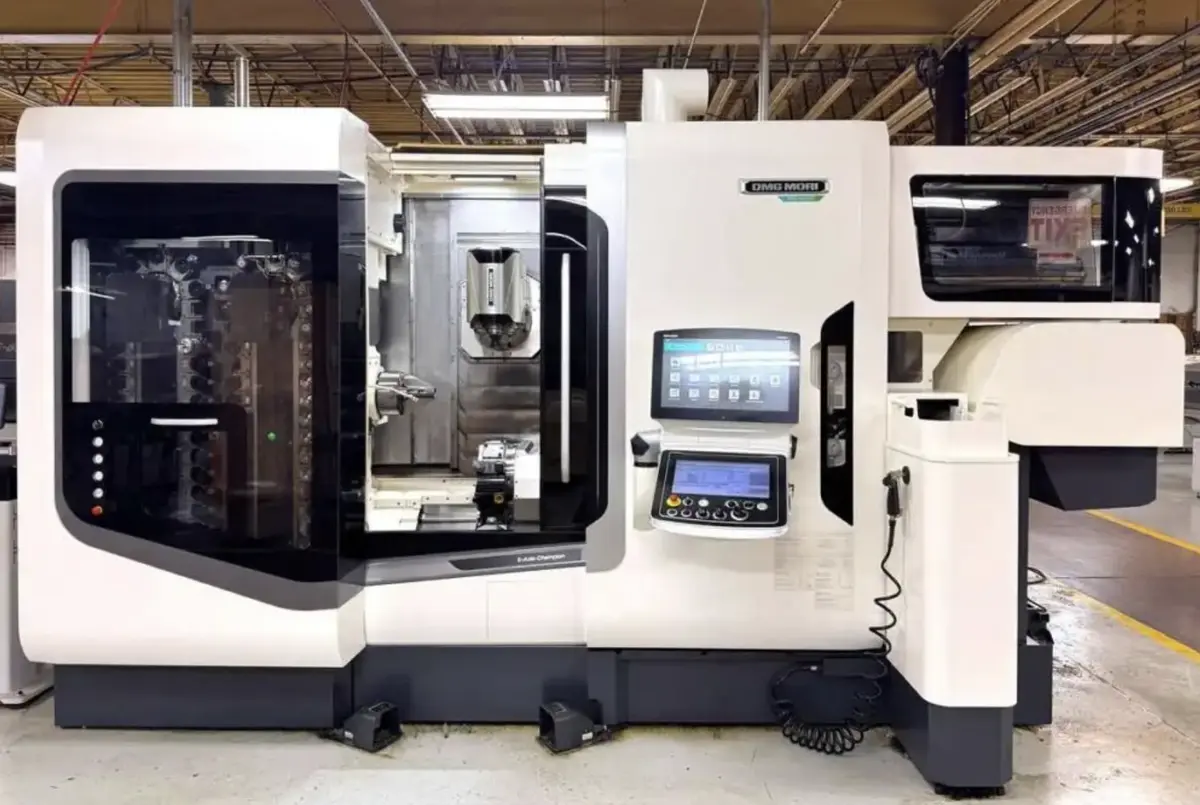

2022 DMG MORI NTX 1000
Have one to sell?
ConditionUsed
1 available
Used 5-Axis Lathe available. Features 16.9" diameter, 31.5" length capacity, and speeds up to 12,000 RPM. Equipped with Celos Mapps CNC, through-spindle coolant, Renishaw probing, dual chuck, conveyors, and bar feed.
Max. Workpiece Diameter:16.9"
Max. Workpiece Length:31.5"
Max. Bar Capacity:2.6"
X-Axis Travel:17.9"
Y-Axis Travel:8.3"
Z-Axis Travel:31.5"
Main Spindle Max. Spindle Speed:5,000 RPM
Chuck:8" Kitagawa BR08
Sub-Spindle Max. Spindle Speed:6,000 RPM
Chuck:6" Royal Quick-Change

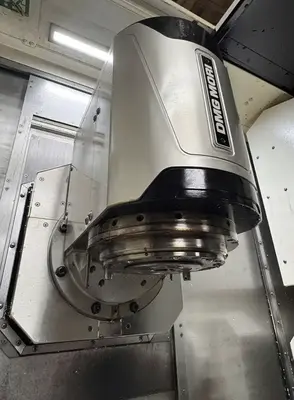

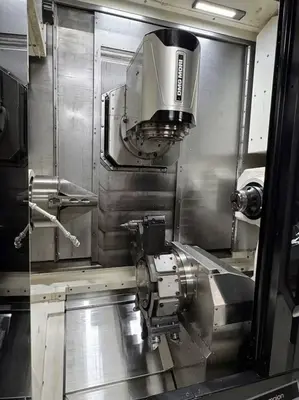

Tool Spindle:Capto C5
Max. Spindle Speed:12,000 RPM
B-Axis Rotation:240°

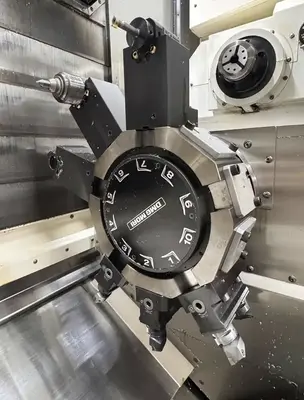

Lower Turret:10-Station C5

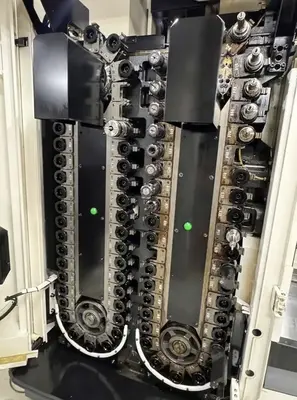

Tool Changer:76-ATC (Dual 38)

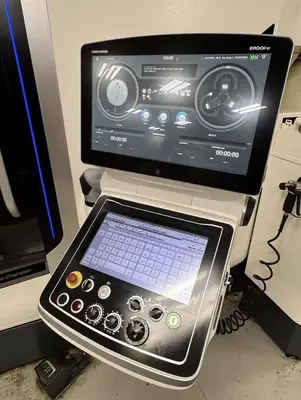

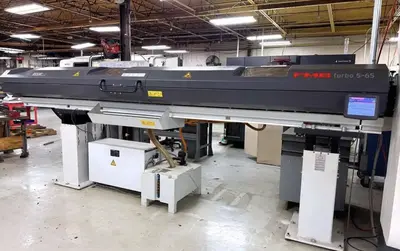

Dmg Mori Celos Mapps Ergoline CNC Control, Through-Spindle Coolant, Renishaw Rmi-Q Machine Probing Interface, Parts Conveyor, Chip Conveyor, 2022 Fmb Turbo 5-65V/3800A Bar Feed
Used 5-Axis Lathe available. Features 16.9" diameter, 31.5" length capacity, and speeds up to 12,000 RPM. Equipped with Celos Mapps CNC, through-spindle coolant, Renishaw probing, dual chuck, conveyors, and bar feed.
Max. Workpiece Diameter:16.9"
Max. Workpiece Length:31.5"
Max. Bar Capacity:2.6"
X-Axis Travel:17.9"
Y-Axis Travel:8.3"
Z-Axis Travel:31.5"
Main Spindle Max. Spindle Speed:5,000 RPM
Chuck:8" Kitagawa BR08
Sub-Spindle Max. Spindle Speed:6,000 RPM
Chuck:6" Royal Quick-Change
Tool Spindle:Capto C5
Max. Spindle Speed:12,000 RPM
B-Axis Rotation:240°
Lower Turret:10-Station C5
Tool Changer:76-ATC (Dual 38)
Dmg Mori Celos Mapps Ergoline CNC Control, Through-Spindle Coolant, Renishaw Rmi-Q Machine Probing Interface, Parts Conveyor, Chip Conveyor, 2022 Fmb Turbo 5-65V/3800A Bar Feed
