2022 DOOSAN MYNX 6500/50II
Have one to sell?
ConditionUsed
1 available
Vertical Machining Center, used, 1,196 runtime hours. Features 50" X, 26.4" Y, 24.6" Z travel, CAT 50 spindle, 6,000 RPM, Fanuc i-Series Plus control, and accessories including chip conveyor and mist collector.
X-AXIS TRAVEL:50″ (1,270 mm)
Y-AXIS TRAVEL:26.4″ (670 mm)
Z-AXIS TRAVEL:24.6″ (625 mm)
TABLE SIZE:53.5″ x 26.4″ (1,360 x 670 mm)
MAX TABLE LOAD:2,205 lbs (1,000 kg)
SPINDLE TAPER:CAT 50
SPINDLE SPEED:6,000 RPM
T-SLOTS:5 x 18 mm
RAPID TRAVERSE X/Y:1,417 IPM (36 m/min)
RAPID TRAVERSE Z:1,181 IPM (30 m/min)

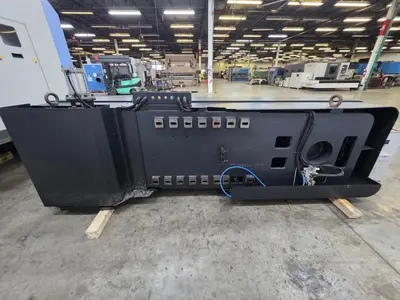

TOOL CHANGER: Side-mount chain ATC (magazine detached)
SPINDLE MOTOR:25 HP
ELECTRICAL:220V/3 PH
HOURS:1,196 Run Time / 6,147 Power On

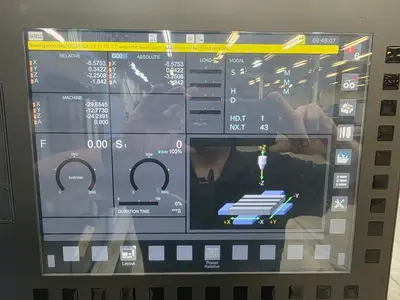

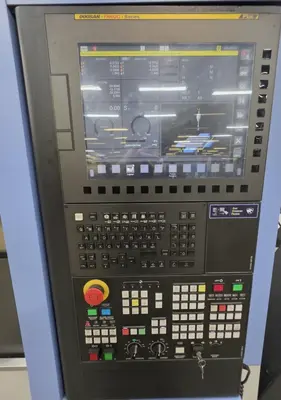

Control Fanuc i Series Plus, Thru Spindle Coolant, 4Th-Axis Drive Lns Turbo Hb Chip Conveyor, Mist-Fit Mf-550 Mist Collector, Side-Mount ATC Magazine (Detached On Pallets), Flood Coolant Tank And Pumps, Nanocon Oil Chiller, Renishaw Probe Kit (Boxed In Electrical Cabinet), Work Light, Tote With Hardware
Vertical Machining Center, used, 1,196 runtime hours. Features 50" X, 26.4" Y, 24.6" Z travel, CAT 50 spindle, 6,000 RPM, Fanuc i-Series Plus control, and accessories including chip conveyor and mist collector.
X-AXIS TRAVEL:50″ (1,270 mm)
Y-AXIS TRAVEL:26.4″ (670 mm)
Z-AXIS TRAVEL:24.6″ (625 mm)
TABLE SIZE:53.5″ x 26.4″ (1,360 x 670 mm)
MAX TABLE LOAD:2,205 lbs (1,000 kg)
SPINDLE TAPER:CAT 50
SPINDLE SPEED:6,000 RPM
T-SLOTS:5 x 18 mm
RAPID TRAVERSE X/Y:1,417 IPM (36 m/min)
RAPID TRAVERSE Z:1,181 IPM (30 m/min)
TOOL CHANGER: Side-mount chain ATC (magazine detached)
SPINDLE MOTOR:25 HP
ELECTRICAL:220V/3 PH
HOURS:1,196 Run Time / 6,147 Power On
Control Fanuc i Series Plus, Thru Spindle Coolant, 4Th-Axis Drive Lns Turbo Hb Chip Conveyor, Mist-Fit Mf-550 Mist Collector, Side-Mount ATC Magazine (Detached On Pallets), Flood Coolant Tank And Pumps, Nanocon Oil Chiller, Renishaw Probe Kit (Boxed In Electrical Cabinet), Work Light, Tote With Hardware
