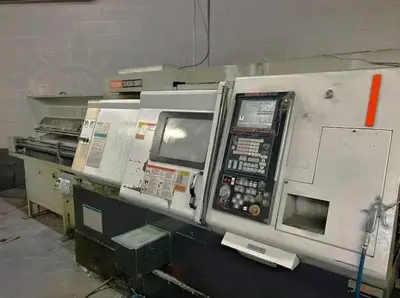

2006 MAZAK QUICK TURN NEXUS 250MSY

CNC Lathes
Manufacturer:
MAZAK
Model:
QUICK TURN NEXUS 250MSY
Year:
2006
Stock #:
X3X4648

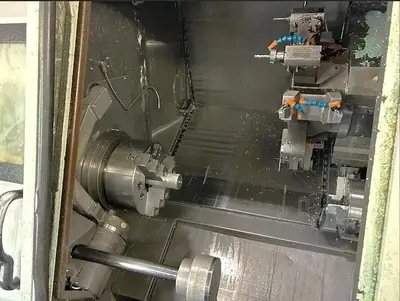

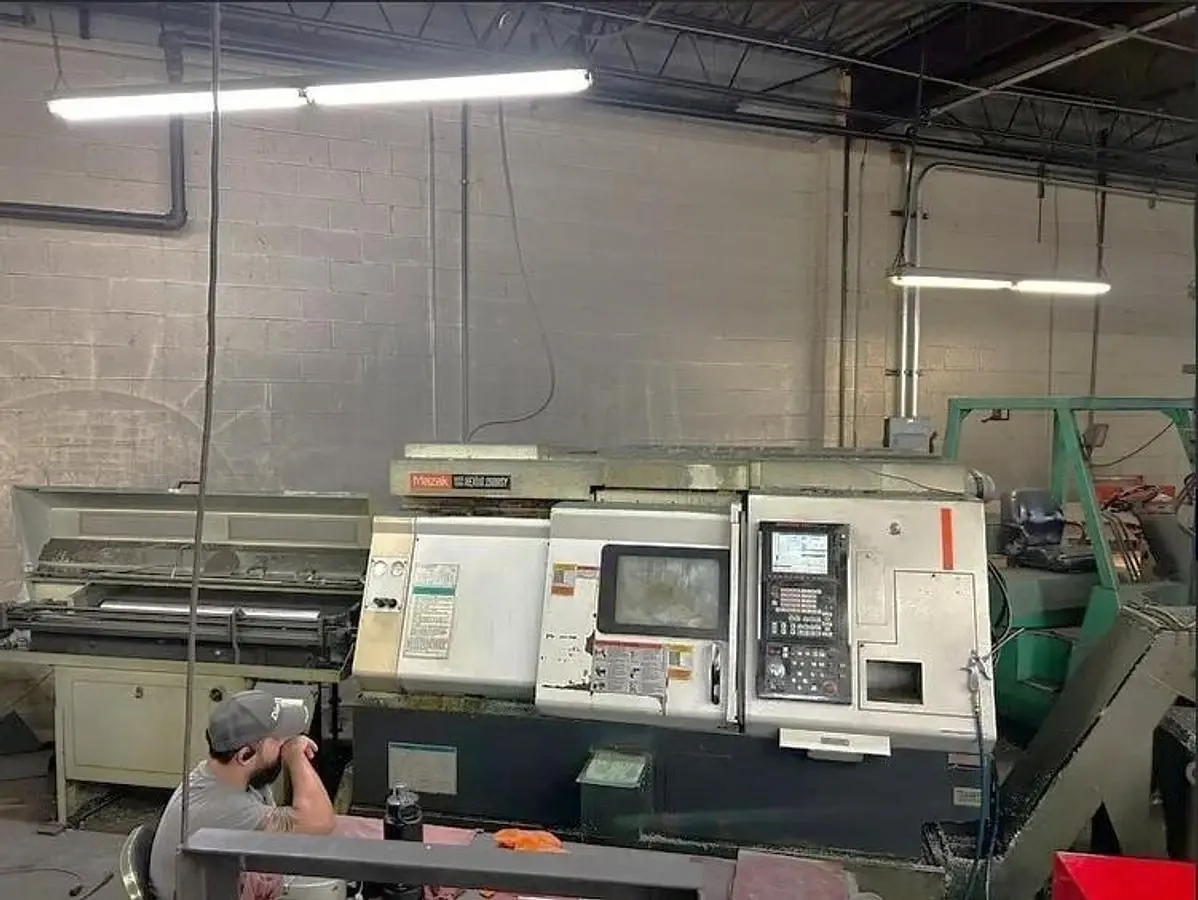

Used CNC Lathe, equipped with Mazatrol Fusion 640T, live milling, subspindle, and 12-position turret. Features include Y-axis, parts catcher, and autoload barfeed system. Dimensions: 116"x74"x73", weight: 12,500 lbs.

Chuck Sizes 10" Hyd. on Main Spindle/6" Hyd. on Subspindle
Maximum Swing/Over Carriage 26.5" / 14"
Maximum Cutting Diameter 14.75"
Maximum Cutting Length 21.28"
X-Axis Travel 9.055"
Y-Axis Travel 4" (+/- 2.0")
Z-Axis Travel 22.63"
C1 Axis Spindle Rotation/C2 Axis Spindle Rotation .001 / .001 Degree
B-Axis Travel (Subspindle) 23"
Spindle Nose / Spindle Bore / Bar Capacity A2-8" / 3.46" / 3.0"
Spindle Speed / Sub Spindle Speed 4,000 RPM / 6,000 RPM
Spindle Motor / Sub Spindle Motor 35 HP / 10 HP
Rotary Tool Speed / Rotary Motor 4,500 RPM / 7.5 HP
Number of Turret Positions 12 Station Turret
Rapid Traverse Rates X, B / Z 1181 IPM / 1299 IPM
Machine Dimensions 116" x 74" x 73"
Machine Weight 12,500 lbs.

Control Mazatrol Fusion 640T Nexus
Y Axis Capability (Off Center)
Subspindle with .001 Degree Index
Full C Axis Spindle Rotation
Live Milling / Drilling Capability
10" 3 Jaw Hydraulic Chuck on Main Spindle
6" 3 Jaw Hydraulic Chuck on Subspindle
Autoload Barfeed System - (currently disconnected, but is included)
Automatic Tool Eye
Chip Conveyor
Parts Catcher
Mill Spindle Synchronous Tapping
USB Port Interface
3.5" Floppy Disk Drive Interface
RS 232 Port Interface
Chuck Air Blast - Second Spindle
EIA/ISO Input Function for G Code Programming
Multi Tap Transformer
All Available Tooling

This equipment is currently unavailable. Similar equipment available now is shown below.
