2009 MAZAK INTEGREX 100-IV ST
Have one to sell?
ConditionUsed
1 available

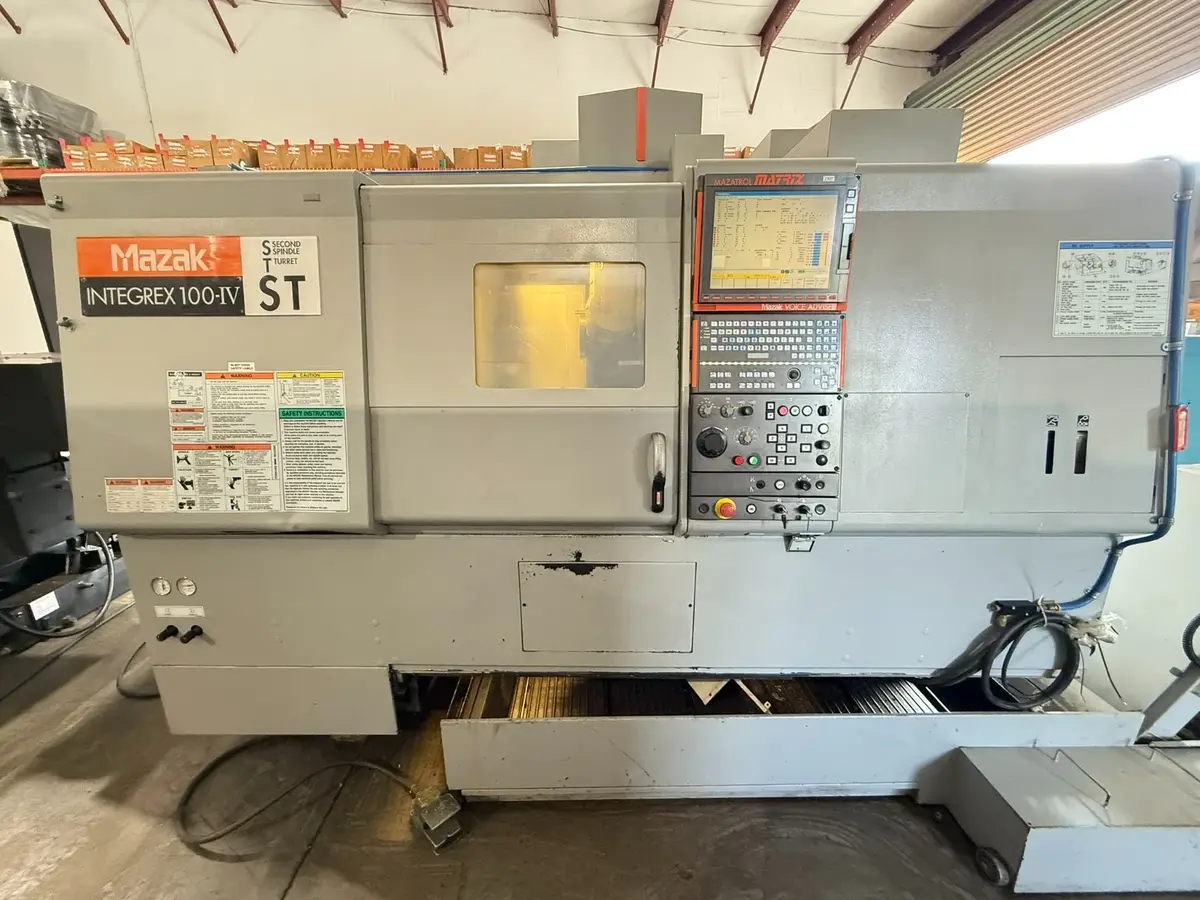

Used CNC Lathe: Features 16.14" X-Axis, 31.69" Z-Axis, 21.46" bed swing, dual 6,000 RPM spindles with 15 HP motors, rotary tool spindle at 12,000 RPM, and complete with Mazatrol Matrix CNC Control, auto chuck, and chip conveyor.
Travels:
- X-Axis............16.14"
- Z-Axis............31.69"
Increments:
- B-Axis............0.0001°
- C-Axis............0.0001°
Center distance............30"
Swing over bed............21.46"
Cutting/Turning Capacity:
- Length - maximum............29.65"
- Diameter - maximum............21.46"

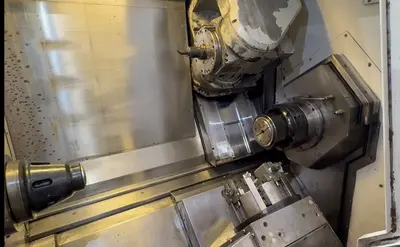

Spindle:
- Bar capacity............2.00"
- Chuck type...........Collet
- Bore............2.40"
- Speed............6,000 RPM
- Motor............15 HP
- Nose............A2-5

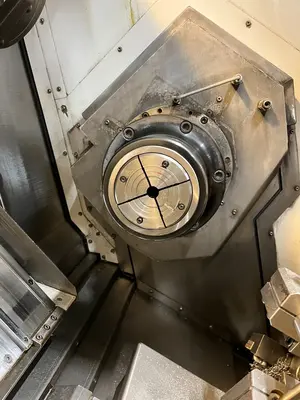

Sub-Spindle:
- Bar capacity............2.00"
- Chuck type...........Collet
- Speed............6,000 RPM
- Motor............15 HP
- Nose............A2-5

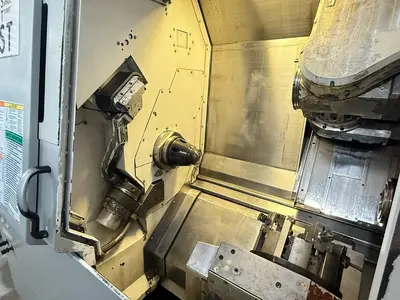

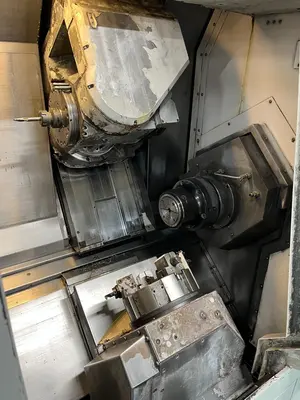

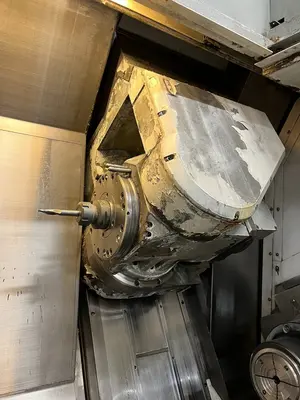

Rotary Tool Spindle:
- Speed............12,000 RPM
- Size............CAT40
- ATC positions............40
- Motor............7.5 HP

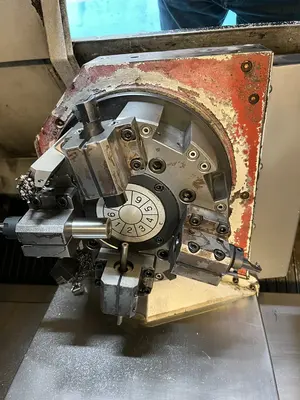

Lower Turret:
- Type............Drum
- Positions............9
Machine dimensions – approximate............144"(L-R) X 92”(F-B) X 89”(H)
Machine weight - tag............16,940 Lbs.

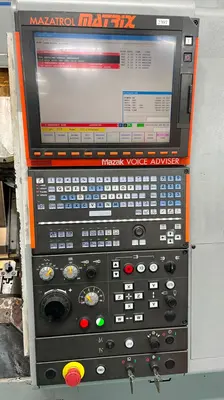

Mazatrol Matrix CNC Control
- Synchronized Tapping
- Inch/Metric Conversion
- EIA/ISO Code Input Function
- 3D Coordinate Conversion
- Absolute Positioning System
- XYZ Pitch Error Compensation Input
- EIA Dynamic Compensation
- Mazacc-3D High Speed Software Pkg.
- Tool Tip Point Control & Tool Radius Comp.
- C1+C2 Synchronous Function
Royal auto chuck on main and secondary spindle
Thru-Spindle Coolant
213 PSI coolant

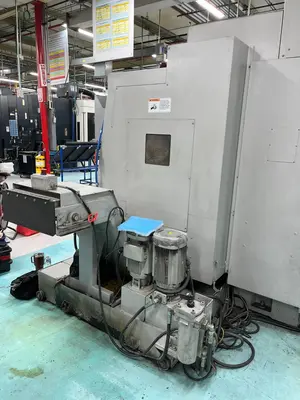

Chip Conveyor
