2010 HAAS VF-3SSYT
Have one to sell?
ConditionUsed
1 available

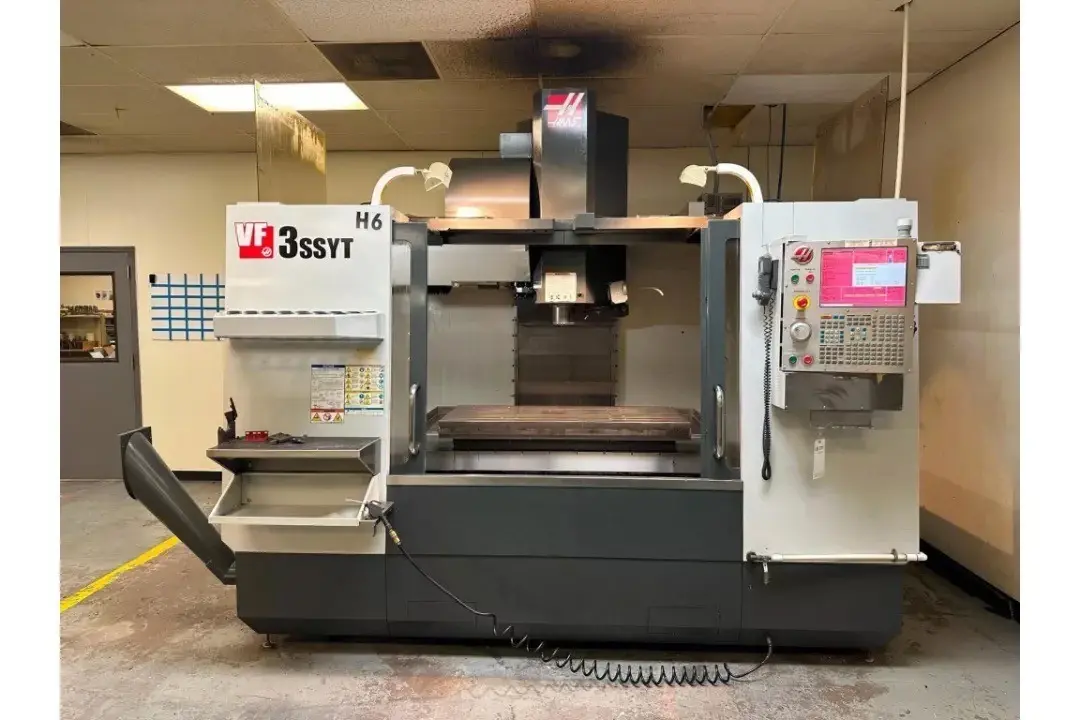

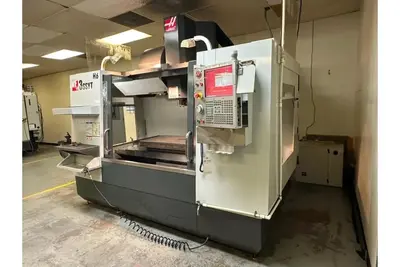

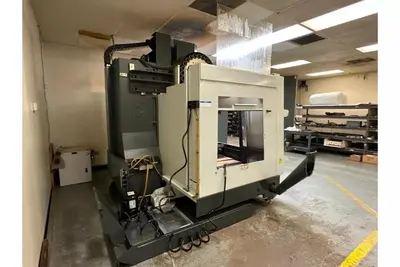

Used Vertical Machining Center with 40" x 26" x 25" travel, equipped with a 12,000 RPM spindle, CAT 40 taper, 24+1 tool changer, and features like 4th axis drive, high-speed machining, P-Cool, Ethernet, and more.
X-AXIS TRAVEL: 40″
Y-AXIS TRAVEL: 26″
Z-AXIS TRAVEL: 25″

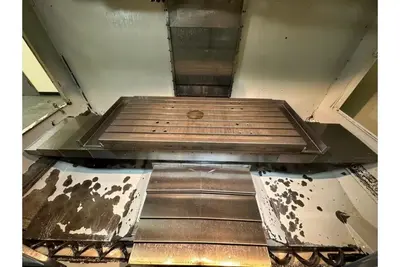

TABLE DIMENSIONS: 54″ X 20″
SPINDLE SPEED: 12,000 RPM
SPINDLE MOTOR: 40 HP VECTOR DRIVE
SPINDLE TAPER: CAT 40
TOOL CAPACITY: 24+1 SIDE-MOUNT TOOL CHANGER
RAPID TRAVERSE RATE: 1,400 IPM
POWER: 195-260V, 3-PHASE, 50/60 HZ, 80 AMPS
4TH AXIS DRIVE AND WIRING (FOR BRUSHLESS ROTARY TABLES)
HIGH-SPEED MACHINING (HSM) WITH LOOK-AHEAD
PROGRAMMABLE COOLANT NOZZLE (P-COOL)
CHIP AUGER
250 MB EXPANDED MEMORY
ETHERNET INTERFACE
AUTOMATIC AIR GUN
HIGH-INTENSITY LIGHTING
EARLY POWER-FAILURE DETECTION MODULE
RIGID TAPPING
