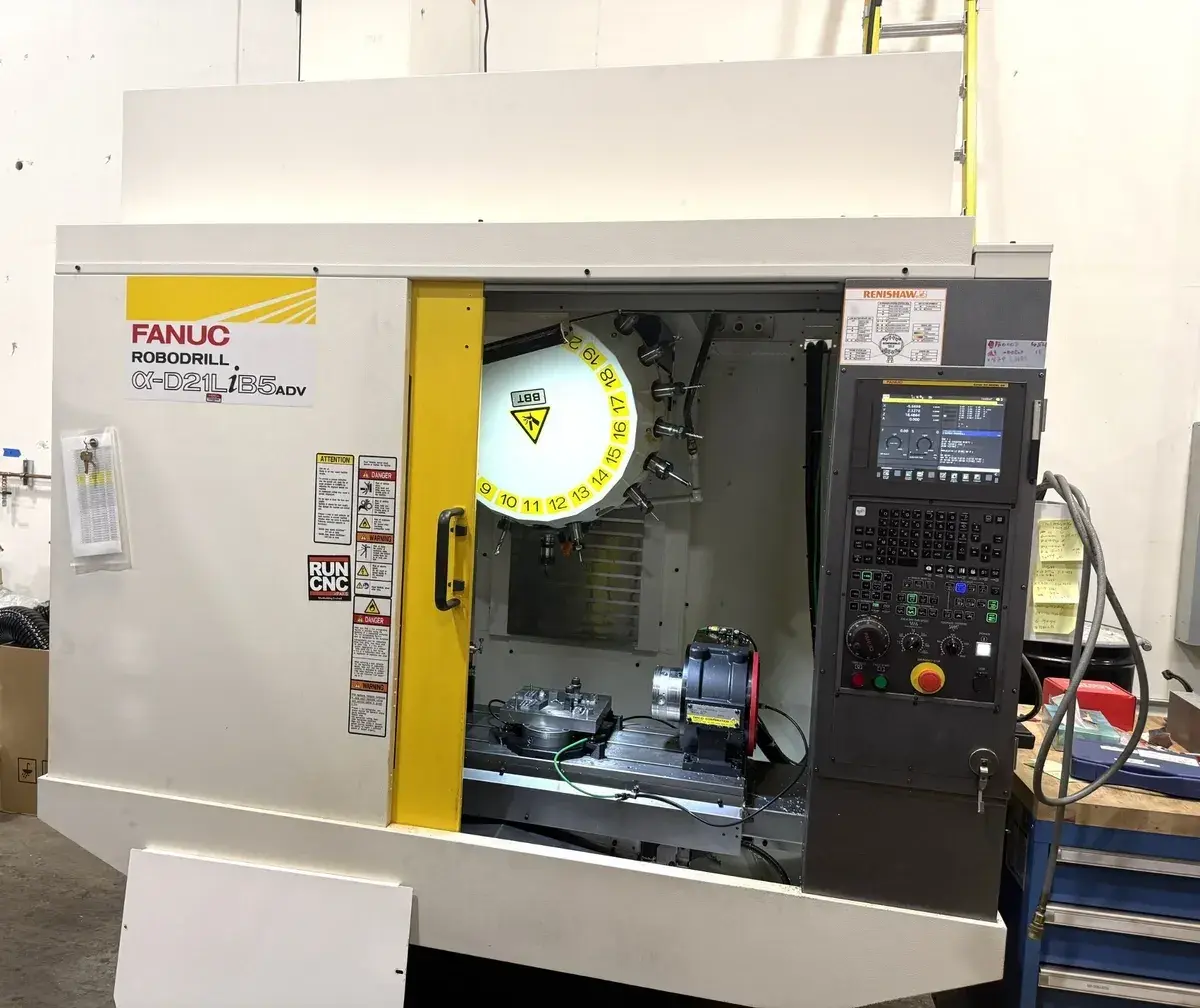

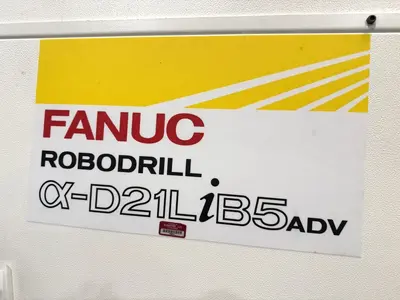

2021 FANUC ROBODRILL ALPHA D21LIB5 ADV
Have one to sell?
ConditionUsed
1 available
Used 2021 FANUC ROBODRILL ALPHA D21LIB5 ADV. Key features: 19.68" X, 15.74" Y, 12.99" Z axis travel, 24,000 RPM spindle speed, 21-position turret, FANUC 31i B5 CNC, and more. With just 3,700 hours on aluminum.
X Axis Travel: 19.68″
Y Axis Travel: 15.74″
Z Axis Travel: 12.99″
Rapid Rate X Axis: 2,126 IPM
Rapid Rate Y Axis: 2,125 IPM
Rapid Rate Z Axis: 2,125 IPM
Table Size: 25.59″ x 15.74″
Max Table Load: 661 LBS
Spindle Motor: 15 HP
Spindle Speed: 24,000 RPM
Spindle Taper: BT30 BIGPLUS CT
Tool Changer: 21 ATC
Dimensions: 70″ x 80″ x 100″
Weight: 5,000 LBS

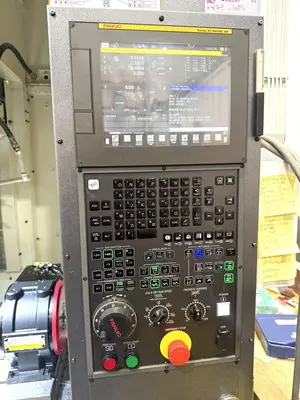

Fanuc 31i-B5 CNC Control
21 Position Turret
24,000 RPM Spindle
Coolant Through Spindle

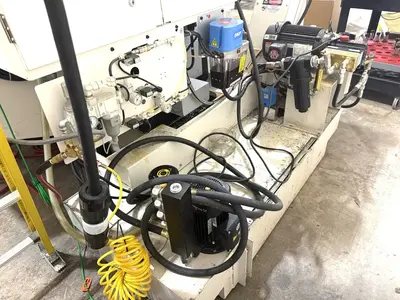

Chip Conveyor

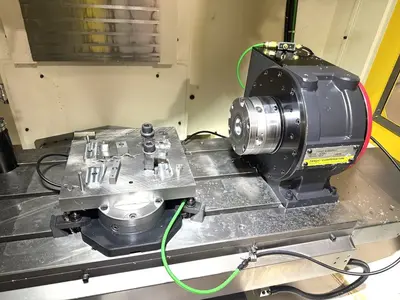

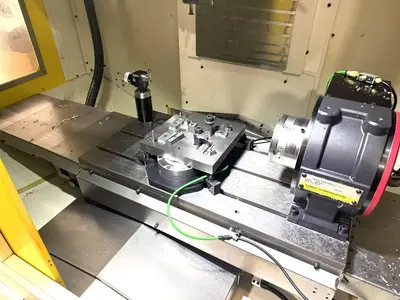

4th Axis Rotary Table
Renishaw Probe
Fast Ethernet

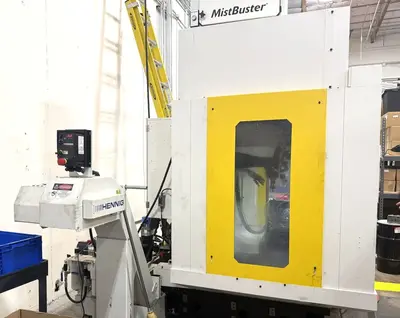

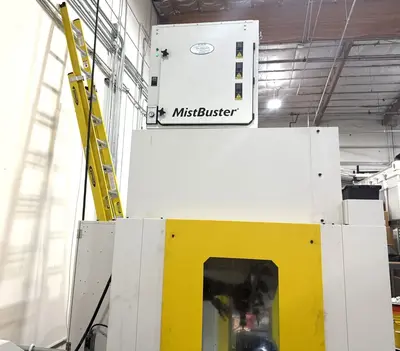

Mist Collector
Approximately 3,700 Hours
*** has been used on Aluminum
Used 2021 FANUC ROBODRILL ALPHA D21LIB5 ADV. Key features: 19.68" X, 15.74" Y, 12.99" Z axis travel, 24,000 RPM spindle speed, 21-position turret, FANUC 31i B5 CNC, and more. With just 3,700 hours on aluminum.
X Axis Travel: 19.68″
Y Axis Travel: 15.74″
Z Axis Travel: 12.99″
Rapid Rate X Axis: 2,126 IPM
Rapid Rate Y Axis: 2,125 IPM
Rapid Rate Z Axis: 2,125 IPM
Table Size: 25.59″ x 15.74″
Max Table Load: 661 LBS
Spindle Motor: 15 HP
Spindle Speed: 24,000 RPM
Spindle Taper: BT30 BIGPLUS CT
Tool Changer: 21 ATC
Dimensions: 70″ x 80″ x 100″
Weight: 5,000 LBS
Fanuc 31i-B5 CNC Control
21 Position Turret
24,000 RPM Spindle
Coolant Through Spindle
Chip Conveyor
4th Axis Rotary Table
Renishaw Probe
Fast Ethernet
Mist Collector
Approximately 3,700 Hours
*** has been used on Aluminum
