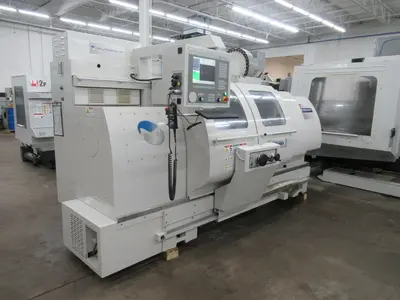

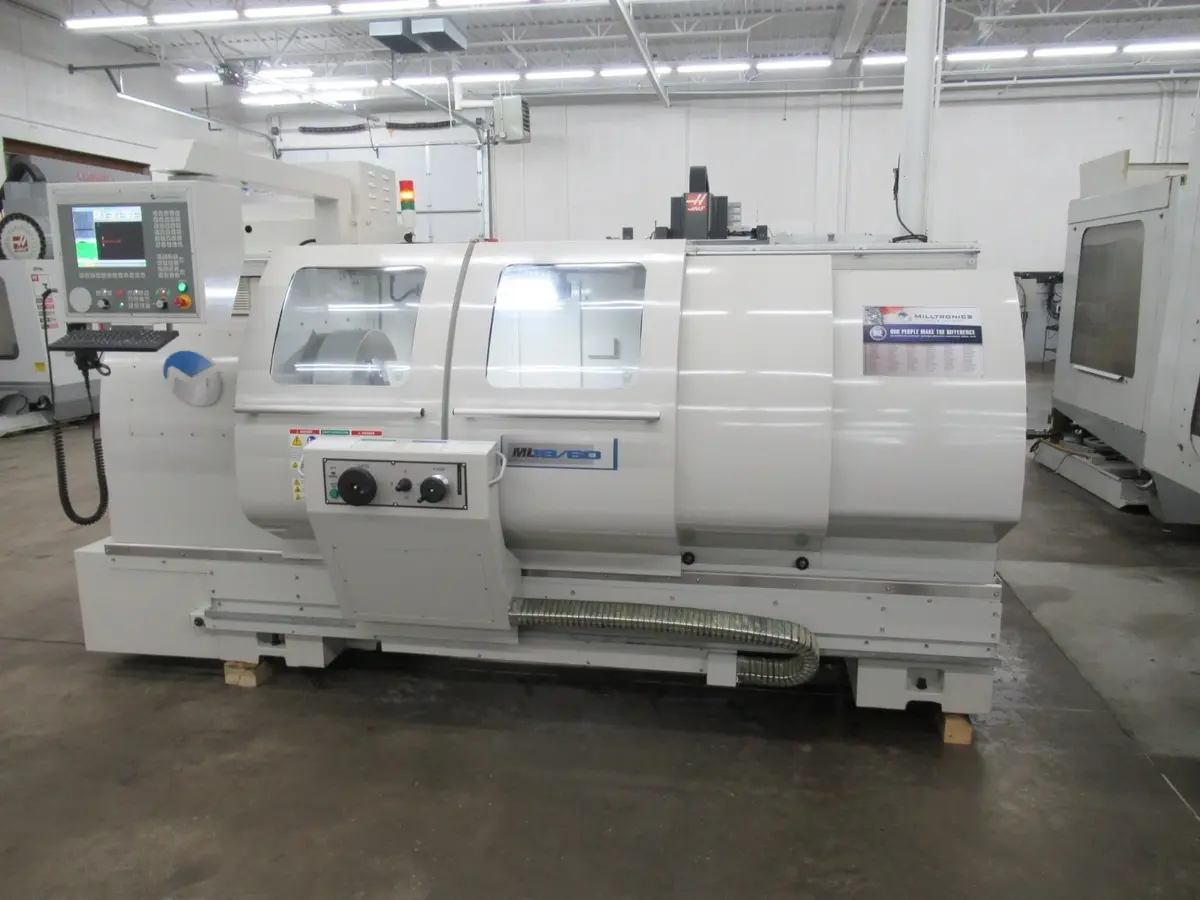

This 2016 Milltronics ML18/60 2-axis combination CNC lathe has 19" of swing over the ways, 27.9" of swing in the gap, and 60" between centers, with an 8-station automatic turret and tailstock. Its 24 HP spindle reaches 2,600 RPM with a Pratt Burnerd 10" 3-jaw chuck, a pneumatic 5C collet chuck, and a 2.56" hole through the spindle.
Swing Over Cross Slide: 9.25"
Swing in Gap: 27.9"
Gap Distance: 12.75"
Hole Through Spindle: 2.56"
Spindle Nose: D1-6
Rapid Traverse Rates (X/Z): 500 IPM
Tailstock Quill Travel: 6"
Electrics: 220 Volt, 3 Phase
8 Station Automatic Tool Turret
Pratt Burnerd 10" 3-Jaw Chuck
Pneumatic 5C Collet Chuck
Remote Jog Handwheel
Electronic Handwheel Controls
Coolant Pump and Tank
USB Port
Assorted Turret Turning Holders and Boring Bar Holders
Keys
Parameters
Machine Pads
This 2016 Milltronics ML18/60 2-axis combination CNC lathe has 19" of swing over the ways, 27.9" of swing in the gap, and 60" between centers, with an 8-station automatic turret and tailstock. Its 24 HP spindle reaches 2,600 RPM with a Pratt Burnerd 10" 3-jaw chuck, a pneumatic 5C collet chuck, and a 2.56" hole through the spindle.
The Milltronics ML18/60, also searched as Milltronics ML18 60, ML-18/60, ML18, and ML 18, is a 2-axis combination CNC lathe with a gap bed, turret, and tailstock.
This 2016 machine has 9.25" of swing over the cross slide, a 12.75" gap distance, a D1-6 spindle nose, 500 IPM rapids, and 6" of tailstock quill travel, runs on 220 volt, 3 phase power, and comes equipped with remote and electronic handwheels, a coolant pump and tank, a USB port, and assorted turning and boring bar holders.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Swing | 19" |
| Machining Length | 60" |
| # Axis | 2 |
| Chuck Size | 10" |
| Power | 24 hp |
| Max RPM | 2,600 RPM |
| Tailstock | 'Yes' |
| Control | CNC (MILLTRONICS) |
Swing Over Cross Slide: 9.25"
Swing in Gap: 27.9"
Gap Distance: 12.75"
Hole Through Spindle: 2.56"
Spindle Nose: D1-6
Rapid Traverse Rates (X/Z): 500 IPM
Tailstock Quill Travel: 6"
Electrics: 220 Volt, 3 Phase
8 Station Automatic Tool Turret
Pratt Burnerd 10" 3-Jaw Chuck
Pneumatic 5C Collet Chuck
Remote Jog Handwheel
Electronic Handwheel Controls
Coolant Pump and Tank
USB Port
Assorted Turret Turning Holders and Boring Bar Holders
Keys
Parameters
Machine Pads
