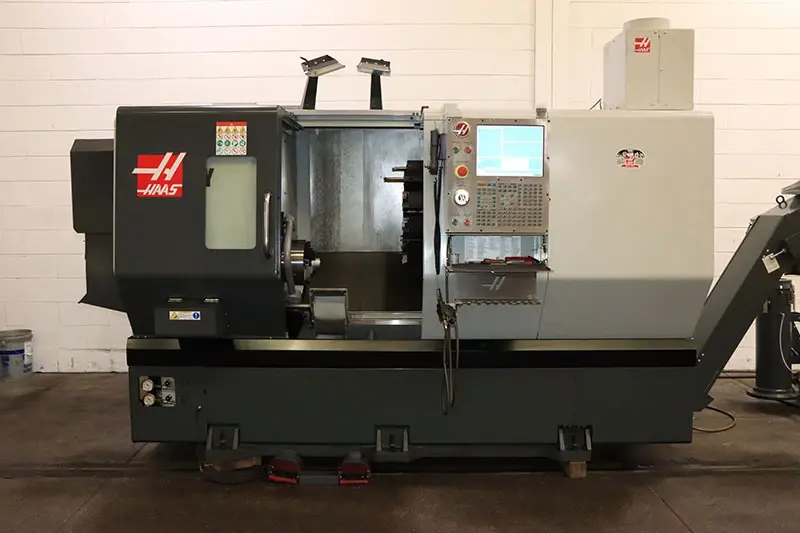

2017 HAAS DS-30Y
Have one to sell?
ConditionUsed
1 available
Used CNC Lathe, featuring 10" & 8" 3-jaw chucks, live tooling, sub-spindle, 12-station turret, and more. Max speed 4500 RPM, 30 HP, equipped with Haas CNC Control, and high-pressure coolant system. Weight: 16,000 lbs.
Swing Over Front Apron: 31.8″
Swing Over Cross Slide: 20.8″
Swing Over Cross Slide: 21.8″
Chuck Size: 10.0″
Max Cutting Diameter (varies with turret): 18.0″
Max Cutting Length (varies with workholding): 23.0″
Bar Capacity: 3.00″
X-Axis: 12.5″
Z-Axis: 23.0″
Rapids on X: 472 ipm
Rapids on Y: 472 ipm
Rapids on Z: 945 ipm
Spindle Nose: A2-6
Max Rating: 30.0 HP
Max Speed: 4500 RPM
Max Torque: 275 ft-lbf @ 600 RPM
Spindle Bore ø: 3.50″
Sub-Spindle Chuck Size: 8.3″
Sub-Spindle Spindle Nose: A2-5
Sub-Spindle Max Rating: 20 HP
Sub-Spindle Max Speed: 4,800 RPM
Sub-Spindle Bore: 2.0″
Sub-Spindle: 2.0″
Machine Weight: 16,000 LBS

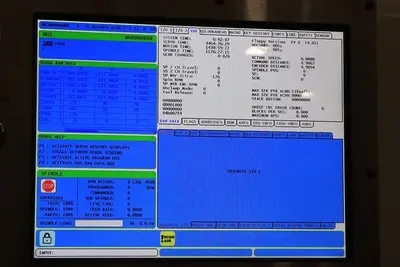

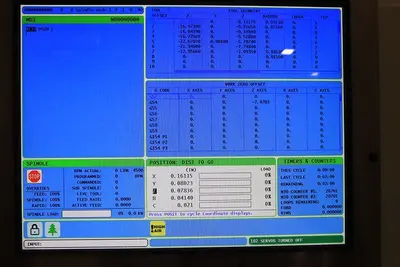

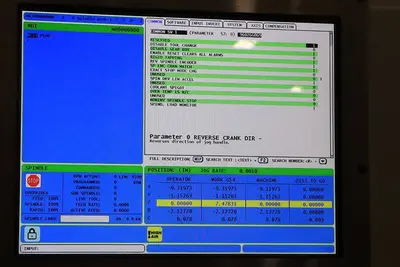

Haas CNC Control

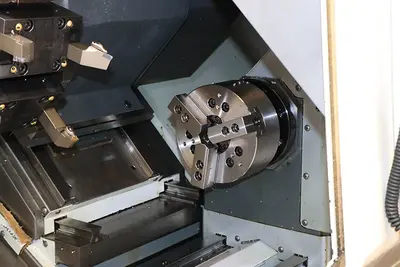

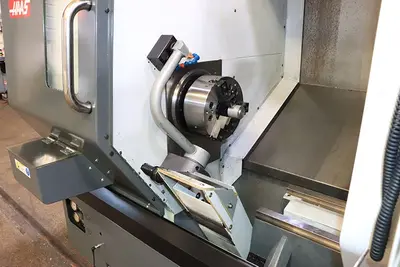

10″ & 8″ 3-Jaw Chucks
Auto Tool Presetter
Parts Catcher
Live Tooling
Sub-Spindle

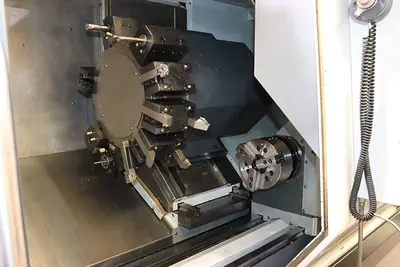

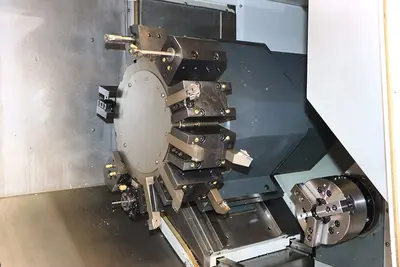

12 Station Turret

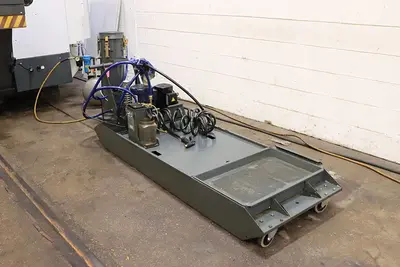

1,000 PSI High Pressure Coolant
Aux. Coolant Filter
Belt Type Chip Conveyor
Enclosure Exhaust System
High Intensity Lighting
