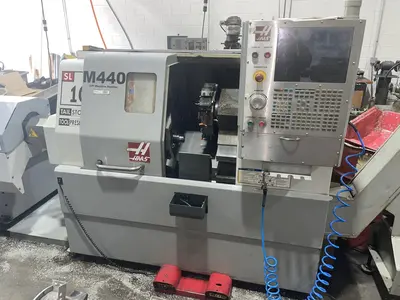

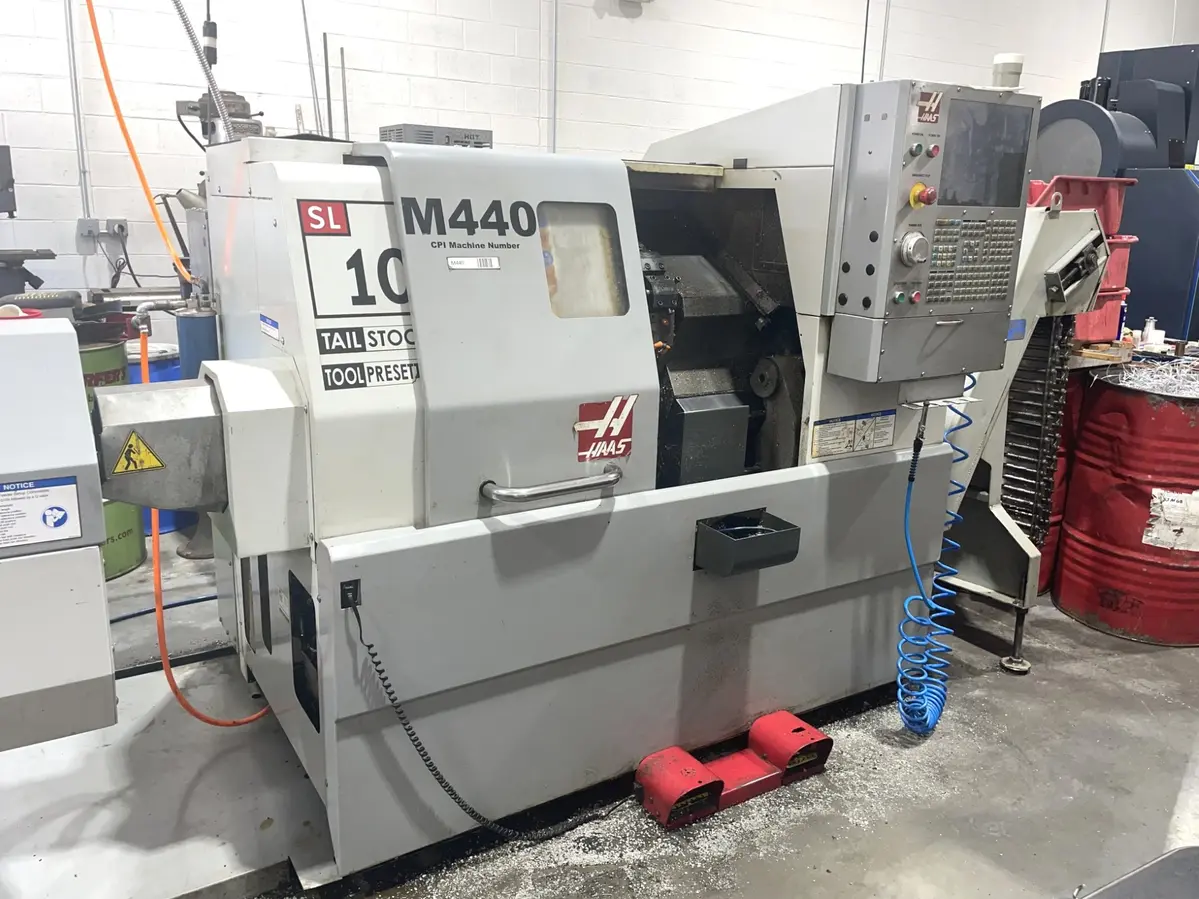

2008 HAAS SL-10
Have one to sell?
ConditionUsed
1 available
Used CNC Lathe: 16.25" swing over front apron, 6" chuck, 6000 RPM spindle, 15HP, 12 turret tools. Equipped with HAAS CNC control, 5C collet chuck, tool setter, tailstock, Hennig chip conveyor, and HAAS barfeed. Approx. 5,500 lbs.
SWING OVER FRONT APRON ............ 16.25"
SWING OVER CROSS SLIDE ............ 8"
CHUCK SIZE ........................ 6"
STANDARD BAR CAPACITY ............. 1.75"
MAX. CUTTING DIAMETER ............. 11"
MAX. CUTTING LENGTH ............... 13"
SPINDLE SPEED ..................... 6000 RPM
PEAK SPINDLE HORSEPOWER ........... 15HP
SPINDLE NOSE ...................... A2-5
SPINDLE BORE ...................... 2.31"
X-AXIS TRAVEL ..................... 6.25"
Z-AXIS TRAVEL ..................... 14"
RAPID TRAVERSE RATE ............... 710 IPM
NUMBER OF TURRET TOOLS ............ 12
TOOL SIZE, OD ..................... 0.75"
APPROX. WEIGHT .................... 5,500 LBS
- HAAS CNC CONTROL
- 5C COLLET CHUCK
- TOOL SETTER
- 12 POSITION TURRET
- TAILSTOCK
- HENNIG CHIP CONVEYOR
- HAAS BARFEED
