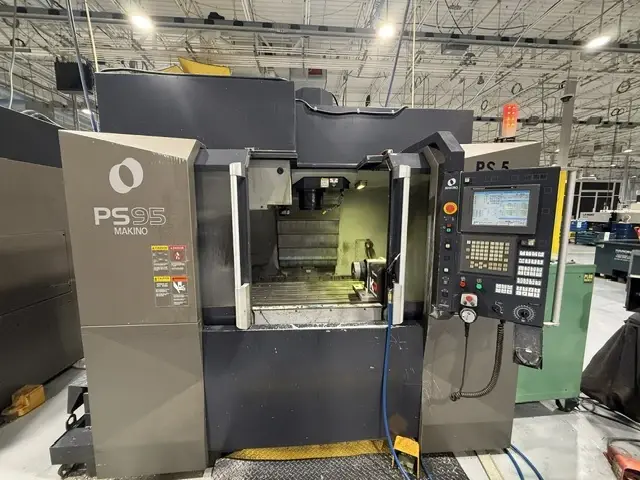

2012 MAKINO PS95 w/ 4th Axis
Have one to sell?
ConditionUsed
1 available
Used Vertical Machining Center for sale: 36.2"x20"x18.1" travels, 12,000 RPM spindle, 30-tool changer, and Fanuc 4-axis CNC. Includes high-pressure coolant, Renishaw probe, Tsudakoma 4th axis table, and more. Weight: 15,000 lbs.
X AXIS TRAVEL ....................... 36.2" / 920mm
Y AXIS TRAVEL ....................... 20" / 510mm
Z AXIS TRAVEL ....................... 18.1" / 460mm
SPINDLE POWER ....................... 24/33 HP
SPINDLE SPEED ...................... 12,000 RPM
TOOL POSITIONS ..................... 30
SPINDLE TAPER ....................... CAT-40
TABLE DIMENSIONS .................... 20" X 46"
TABLE LOAD CAPACITY ................. 1763 LBS
SPINDLE NOSE TO TABLE ............... 5.9" - 24"
NUMBER OF PROGRAMMABLE AXES ......... 4
RAPID TRAVERSE RATE X & Y ........... 1,417 IPM
RAPID TRAVERSE RATE Z ............... 1,181 IPM
APPROXIMATE DIMENSIONS ....... 105.4"W x 138"D x 97.6"H WEIGHT
WEIGHT............................. 15,000 LBS
PROFESSIONAL P / FANUC 4-AXIS CNC CONTROL

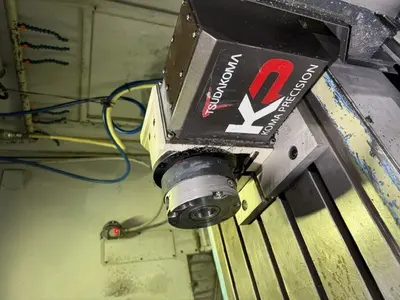

TSUDAKOMA MODEL: RWE-160R 4TH AXIS TABLE
RENISHAW PROBE SYSTEM
HIGH PRESSURE COOLANT THROUGH SPINDLE
REMOTE JOG HANDLE
SPINDLE & CORE-COOLED BALLSCREWS
OIL CHILLER
AIR DRYER
DUAL AUGERS
CHIP CONVEYOR
30 POSITION TOOL CHANGER
