X-AXIS TRAVEL .................... 25" 635mm
Y-AXIS TRAVEL .................... 15" 381mm
Z-AXIS TRAVEL .................... 20" 508mm
TABLE SIZE ....................... 36" X 16"
SPINDLE NOSE TO TABLE ............ 4" - 24"
TABLE LOAD CAPACITY .............. 3,140 LBS
SPINDLE SPEED .................... 10,000 RPM
SPINDLE MOTOR .................... 17 HP

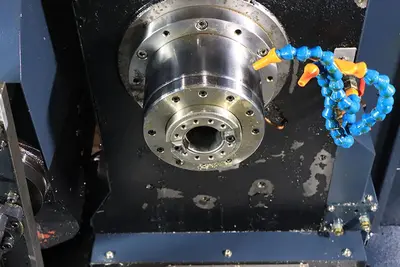

SPINDLE TAPER .................... CAT 40 BIG-PLUS
TOOL MAGAZINE CAPACITY ........... 20 ATC
MAXIMUM TOOL DIAMETER/WEIGHT ..... 3.5" / 15.4 LBS
RAPID TRAVERSE RATES ............. 945 IPM
MACHINE DIMENSIONS: .............. 80" x 101" x 101.5"H
MACHINE WEIGHT: .................. 6,250 LBS

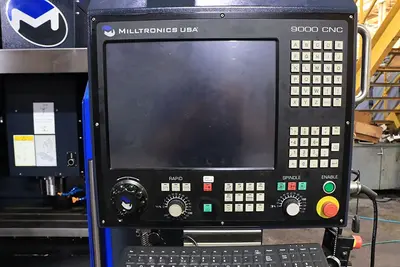

- MILLTRONICS 9000 CONTROL with TOUCHSCREEN
- RIGID TAPPING, SPARE "M" FUNCTION w/CNC "WAIT" CHANNEL
- USB PORT & ETHERNET
- REMOTE JOG HANDLE & AUXILARY INDUSTRIAL GRADE KEYBOARD

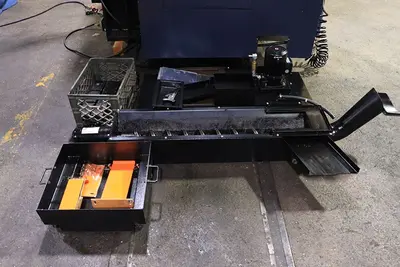

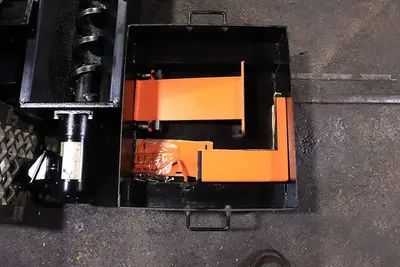

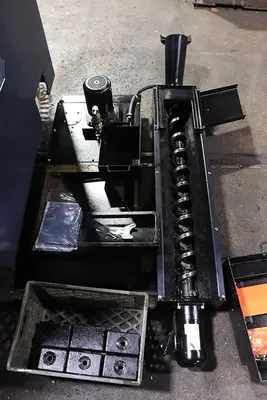

- CHIP AUGER
- COOLANT SYSTEM

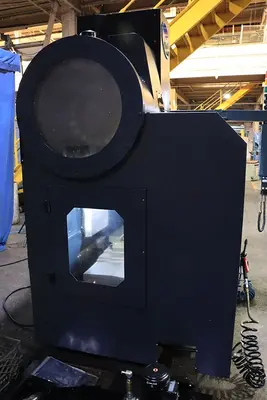

- 20 TOOL CAPACITY SIDE-MOUNTED TOOL CHANGER
This equipment is currently unavailable. Similar equipment available now is shown below.
