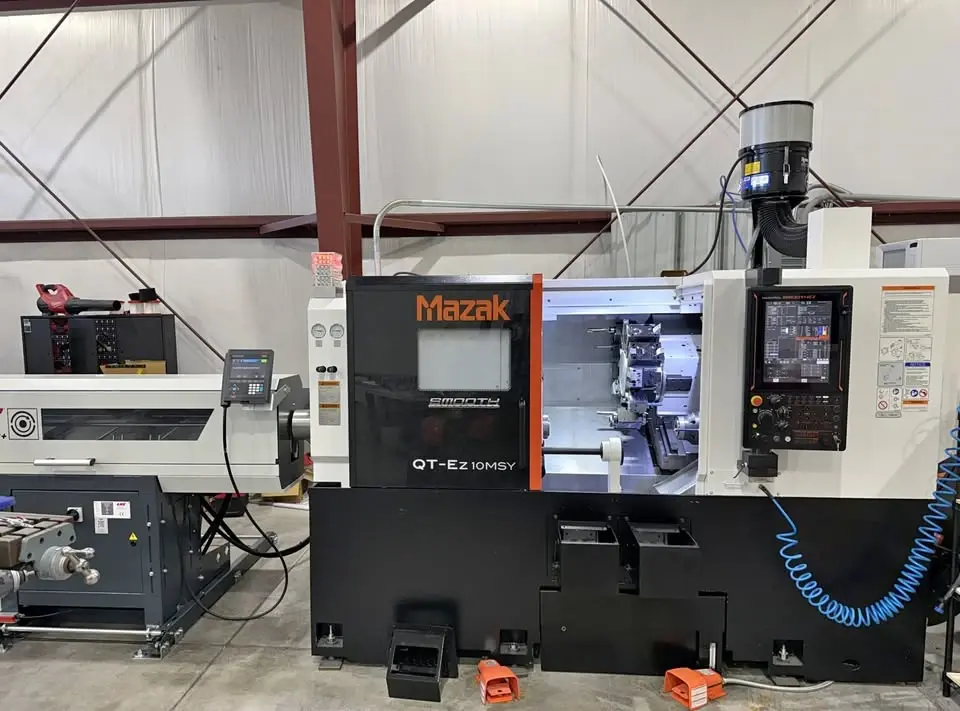

2024 MAZAK QT-EZ 10MSY
Have one to sell?
ConditionUsed
1 available

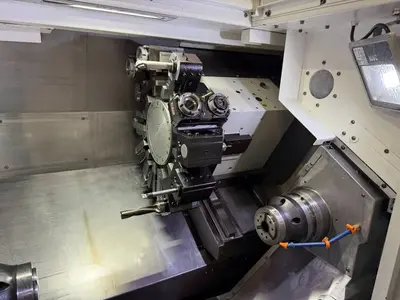

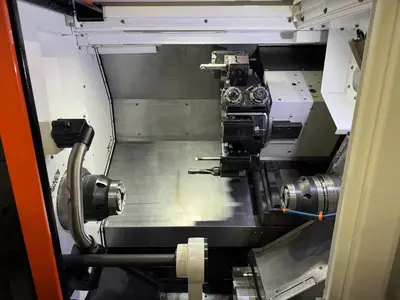

CNC Lathe used. Featuring 10"/6" chucks, 20 HP spindle, 4200 RPM, mill spindle at 6000 RPM, 8.5"x4"x23.75" travel, high-pressure coolant, tool eye, parts catcher, mist collector, and extensive tooling. Weighs 12,125 lbs.
Standard Chuck Size (Main/Second) ........................ 10” / 6”
Maximum Swing............................................. 27.4”
Maximum Machining Length .................................20.78”
Standard Bar Capacity..................................... 2.5”
Spindle Motor (30min rating) ............................. 20 HP
Spindle Speed............................................. 4200 RPM
Spindle Nose.............................................. A2-6
Number of Tools........................................... 12
Mill Spindle Motor......................................... 7.5 HP
Mill Spindle Speed......................................... 6,000 RPM
Travel (X/Y/Z) ............................................ 8.5” / 4.00” / 23.75”
Feed Axis Rapid Traverse (X/Y/Z) .......................... 1181 / 394 / 1417 IPM
Second Spindle Speed....................................... 6,000 RPM
Second Spindle Motor (40% ED) ............................. 10 HP
Machine Height.........., ................................. 67.9”
Machine Weight............................................. 12,125 LBS
118 PSI high-pressure coolant system with 16 GPM flow

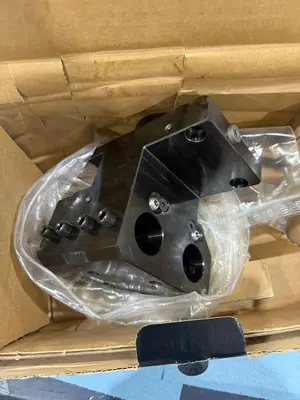

Lots of Live and Static Tooling
Automatic parts catcher
Extra parts-catcher bucket
LNS Quick Load Servo 80+ bar feeder
Factory-supplied side-discharge hinged chip conveyor
Automatic tool eye for tool setting
Additional LED work light
Mist-collector Royal FX 300 with After Filter Option
Expanded 8 MB program memory
Automatic power-off function
Operation-complete buzzer
Three-color signal tower

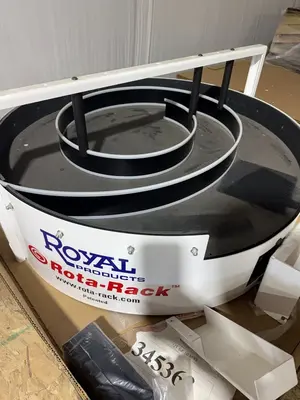

Heavy Duty Royal Rotorack with Deluxe Control
