Unavailable

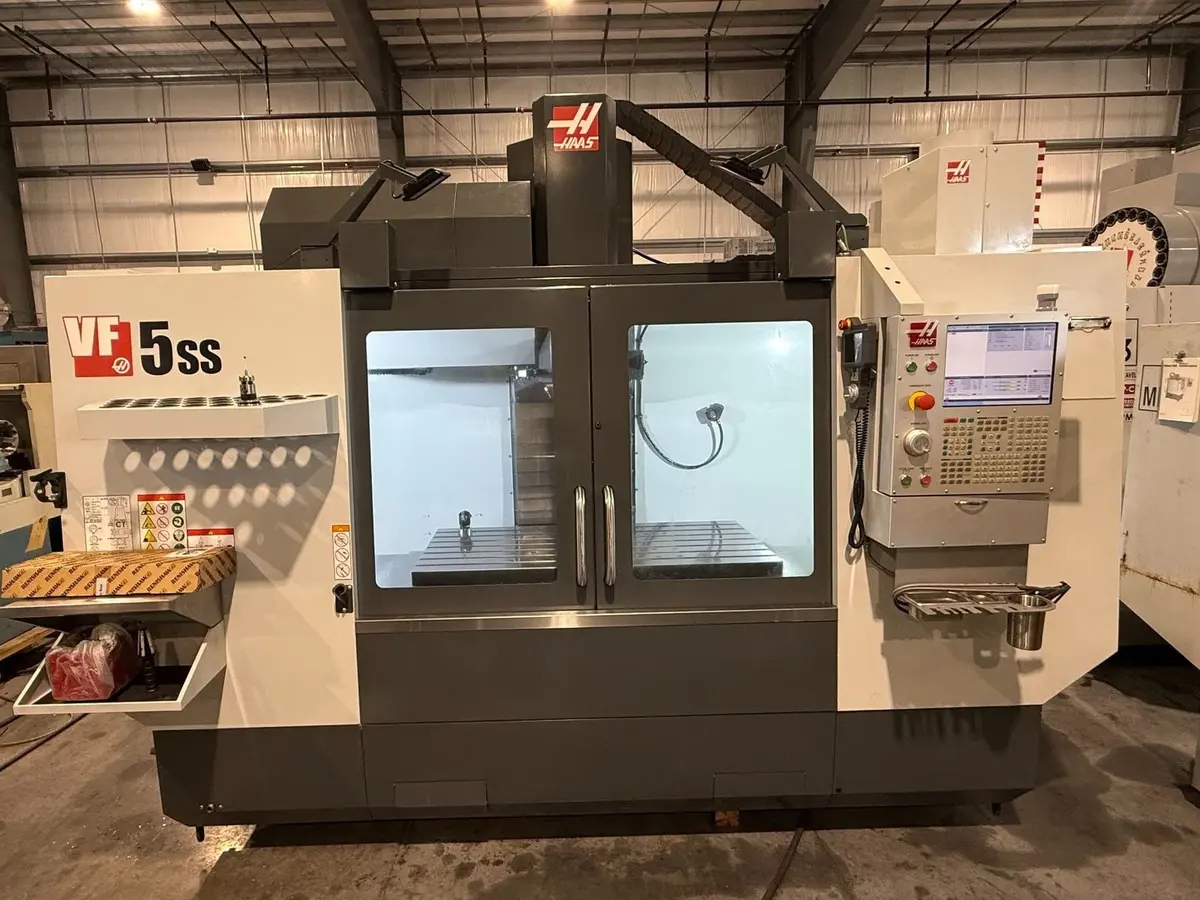

2020 HAAS VF-5SS

Vertical Machining Centers
Manufacturer:
HAAS
Model:
VF-5SS
Year:
2020
Stock #:
X4X4617
Vertical Machining Center, used, featuring HAAS CNC Control, 30-tool changer, and M19 Spindle Orientation. Spindle speed up to 12,000 RPM. Equipped with WIPS Renishaw Probing, High-Speed Machining, and more. 13,000 lbs, 164"x92"x104".

Table size- 54” x 24”
Maximum table load- 1,750 Lbs.
X axis travel- 50”
Y axis travel- 26”
Z axis travel- 25”
Min / Max spindle to table surface- 4.2” / 29.3”
Maximum spindle speed- 12,000 R.P.M.
Spindle taper- CAT-40
Max cutting feed- 833 I.P.M.
X Axis Rapids- 1200 R.P.M.
Y Axis Rapids- 1200 R.P.M.
Z Axis Rapids- 1200 R.P.M.
Tool changer- 30 tool capacity
Tool changer speed- 1.80 Seconds

All specifications are approximate, provided for reference only, and not binding. Buyers are responsible for verifying all details. Inspection prior to purchase is welcome and encouraged.

HAAS CNC Control
Machine Hours- Run time- 6,194 / Servo time- 4,078 / Spindle time- 2,413
Machine options- Macros, Rotation & Scaling, Rigid Tapping, M19 Spindle Orient, High Speed Machining VPS Editing, Media display, Prewired for the 4th axis, Max Memory 1 GB, Wireless networking Compensation
MGP Manual Pulse Generator
Programmable coolant nozzle
Chip auger
Enclosure Exhaust System
“WIPS” REINSHAW Probing with Probe , Table probe, Wall reader
Coolant tank & Pump
Shipping bracket
Machine weight- 13,000 Lbs.
Machine dimensions- 164” x 92” x 104” H

This equipment is currently unavailable. Similar equipment available now is shown below.
