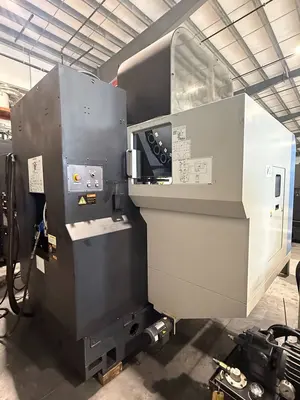

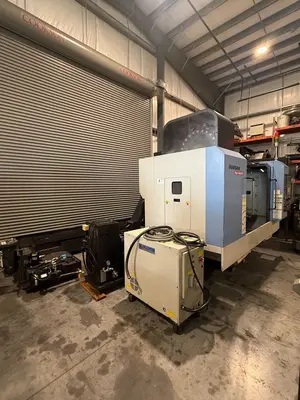

2011 DOOSAN MYNX 5400/50
Have one to sell?
ConditionUsed
1 available

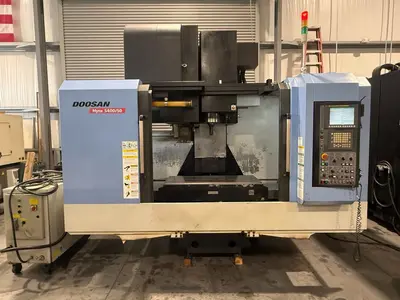

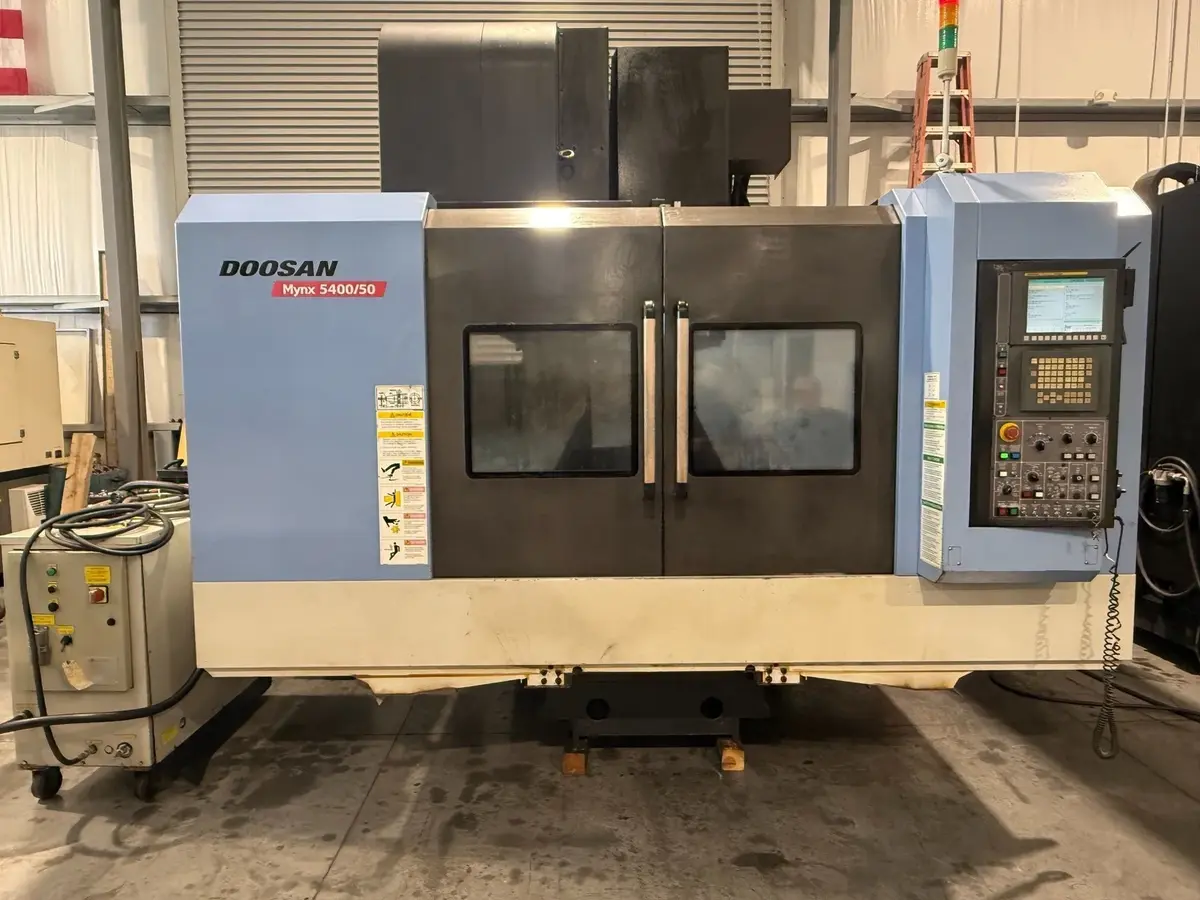

Vertical machining center, used, with FANUC I Series CNC Control, Chip Conveyor, and Spindle Chiller. Max table load 2,200 lbs, 40.2” X-axis travel. Wired for 220V/3 phase. Dimensions: 132” x 98” x 115”.

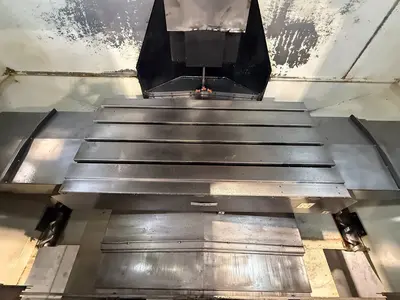

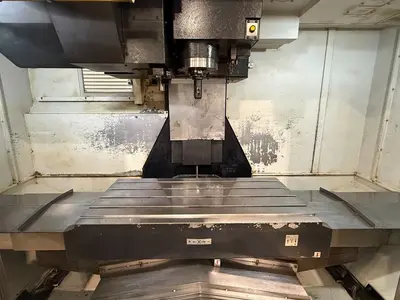

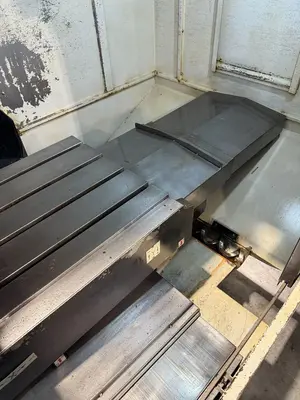

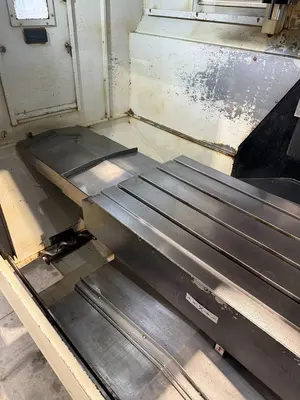

Table size- 47.2” x 21.3”
Max table load- 2,200 Lbs.
X axis travels- 40.2”
Y axis travel- 21.3”
Z axis travel- 20.9”
X axis rapids- 1,181 I.P.M.
Y axis rapids- 1,181 I.P.M.
Z axis rapids- 945 I.P.M.

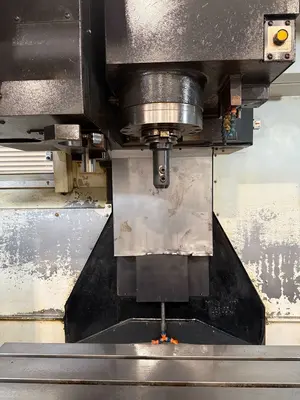

Spindle taper- CAT-50
Spindle speeds- 8,000 R.P.M.

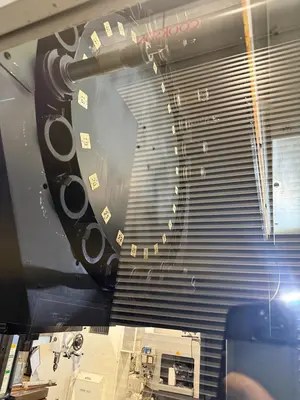

Tool changer capacity- 24 tool

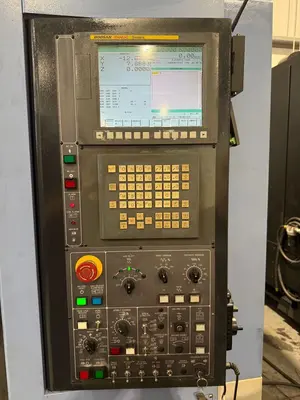

FANUC I Series CNC Control & M.P.G. Manual Pulse Generator
Machine hours- Power on hours-25,985, Cutting hours- 5,459

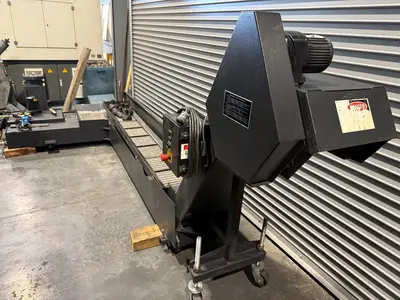

Chip Conveyor

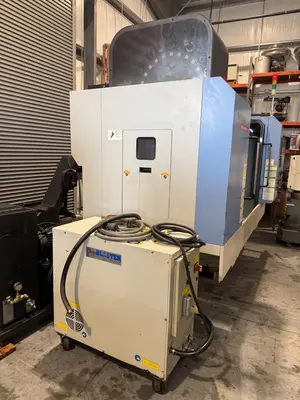

Spindle chiller

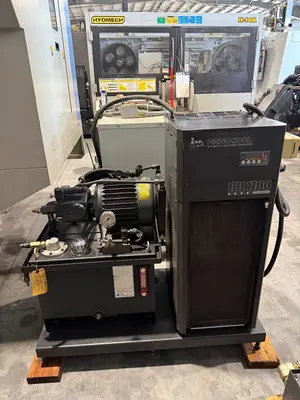

Hydraulic system

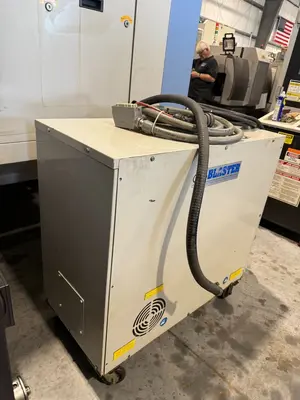

ChipBlaster High Pressure coolant system
Leveling feet
Machine is wired for 220 volt / 3 phase / 60 H.Z
Machine weight- 15,500 Lbs.
Machine dimensions- 132” x 98” x 115” H
