2003 HAAS MINI MILL
Have one to sell?
ConditionUsed
1 available

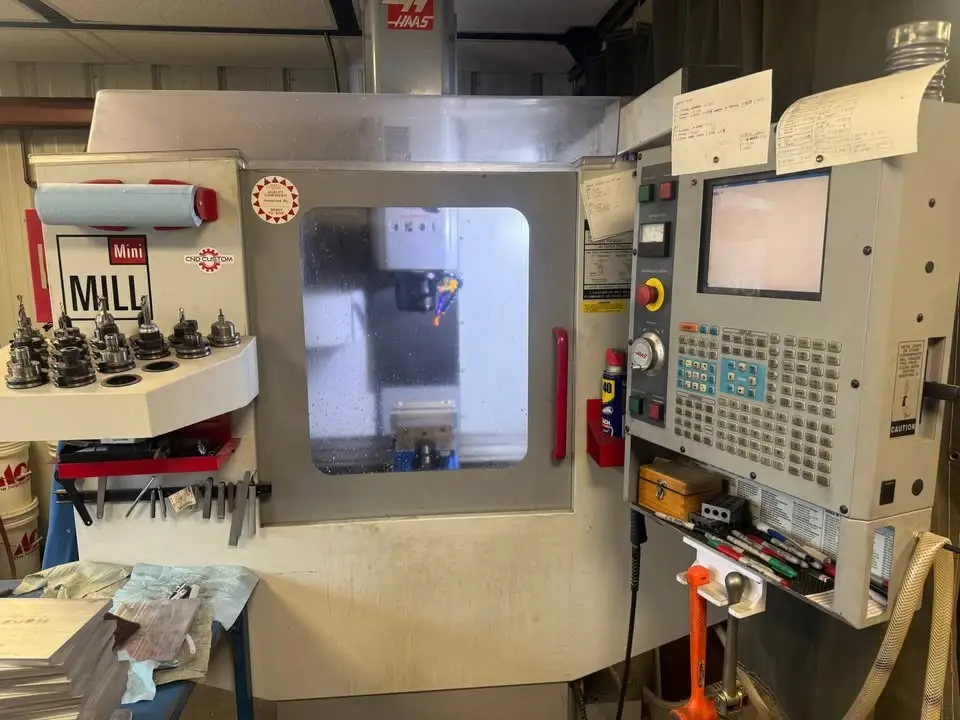

Used Vertical Machining Center, CAT-40 Taper, 7.5 hp, 6,000 RPM, 3-axis, 16"x12"x10" travel, includes 20+ tool holders, 6” Kurt vice, table, extra coolant, and raw aluminum. Power: 25 Amps at 220V. Air: 4 SCFM at 100 PSI.
Full Load Amperage Draw: 25 Amps (at 220V)
Air Supply Demand: 4 SCFM at 100 PSI constant pressure
Coolant Reservoir Capacity: 40 Gallons (151 Liters)

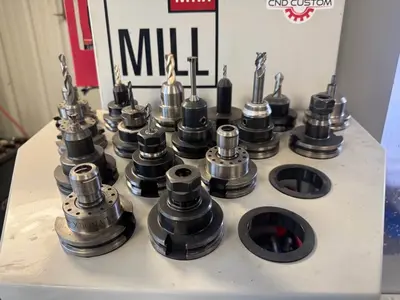

Machine comes with 20+ Cat 40 tool holders, 6” Kurt vice, small metal table, extra coolant oil, and raw aluminum material
Used Vertical Machining Center, CAT-40 Taper, 7.5 hp, 6,000 RPM, 3-axis, 16"x12"x10" travel, includes 20+ tool holders, 6” Kurt vice, table, extra coolant, and raw aluminum. Power: 25 Amps at 220V. Air: 4 SCFM at 100 PSI.
Imperial
| X | 16" |
| Y | 12" |
| Z | 10" |
| Power | 7.5 hp |
| RPM | 6,000 RPM |
| # ATC | 10 |
| Taper | CAT-40 |
| Table-W | 12" |
| Table-L | 36" |
| # Axis | 3 |
| Control | CNC (HAAS) |
Full Load Amperage Draw: 25 Amps (at 220V)
Air Supply Demand: 4 SCFM at 100 PSI constant pressure
Coolant Reservoir Capacity: 40 Gallons (151 Liters)
Machine comes with 20+ Cat 40 tool holders, 6” Kurt vice, small metal table, extra coolant oil, and raw aluminum material
