2019 HAAS VF-4SS
Have one to sell?
ConditionUsed
1 available

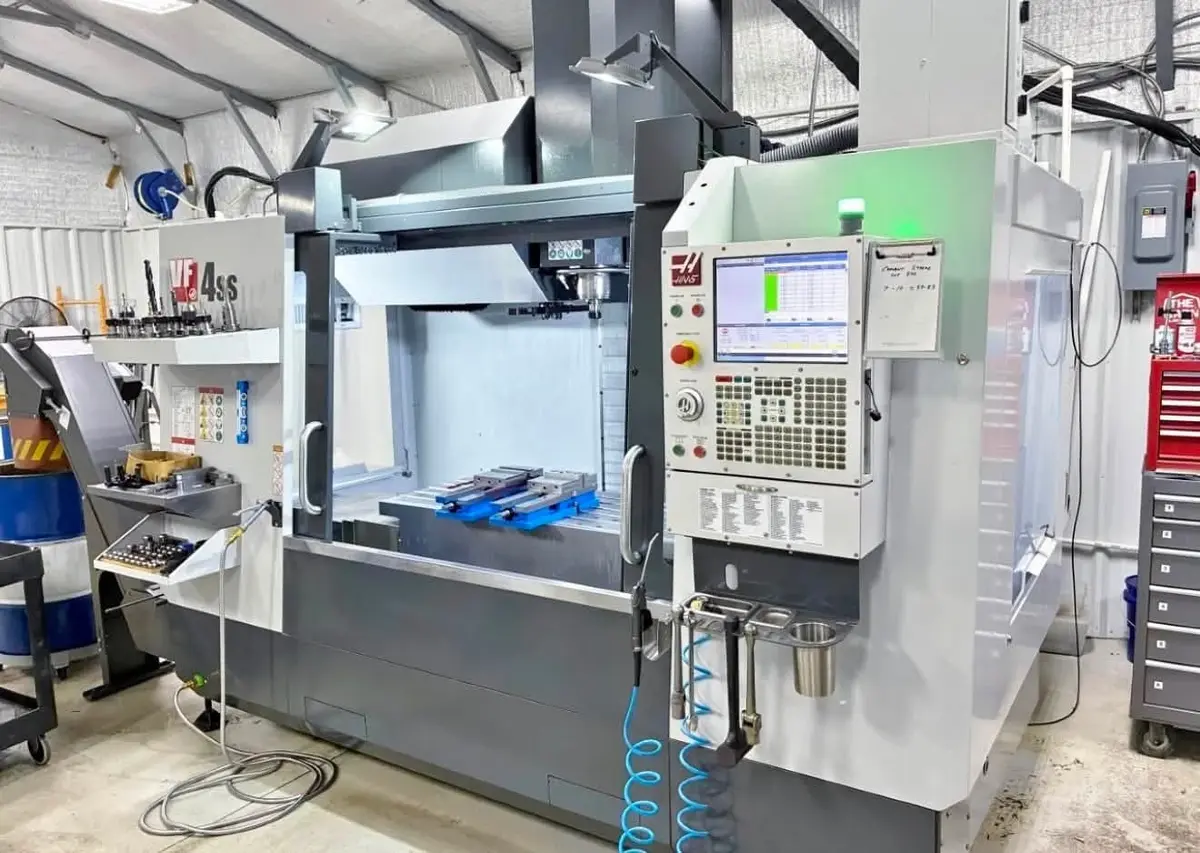

Used Vertical Machining Center with 50" x 20" x 25" travel, 12,000 RPM spindle, and 30 HP motor. Equipped with through-spindle coolant, Renishaw probing, and high-speed machining. 781 cut hours. Max table load 1,750 lbs.
X Axis Travel: 50"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Max Table Load: 1,750 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Spindle Nose to Table: 4.2" - 29.2"
Max Torque 90 ft-lbf @ 2000 rpm
Max Weight on Table (evenly distributed) 1750 lb

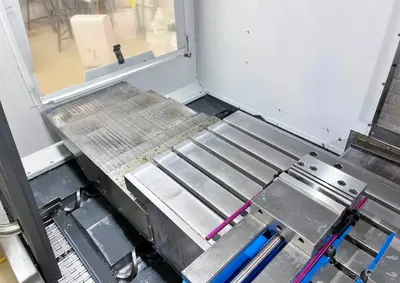

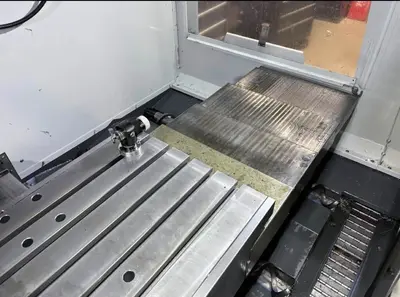

Table Size: 52" x 18"
Dimensions: 131" x 102" x 109"
Weight: 13,500 LBS

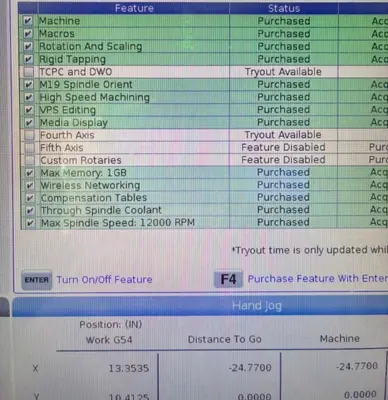

Through-Spindle Coolant, Renishaw Probing, 30 Tool Positions, Multi-Auger Chip Conveyor, High-Speed Machining.
781 Cut Hours.
