CHUCK SIZE: 10"
MAX DIAMETER BAR CAPACITY: 3"
MAX SWING OVER BED: 26"
MAX MACHINING LENGTH: 19.608"
SPINDLE MOTOR: 35 HP
SPINDLE SPEED: 4000 RPM
SPINDLE NOSE: A2-8
SPINDLE OR: 3.58"
TOOLS: 12
RAPID TRAVERSE RATES (X/Z): 1181/1299 IPM
X-AXIS TRAVEL: 8.88"
Z-AXIS TRAVEL: 23.75"
TURRET INDEX (SINGLE STEP): MT #5
MAX TURNING DIAMETER: 14.25"

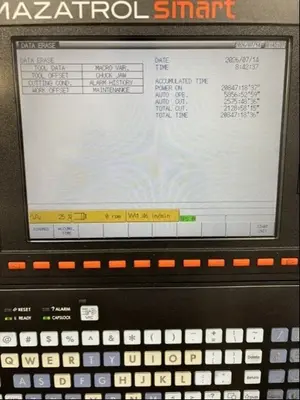

MAZATROL SMART CNC CONTROL
10.4" COLOR LCD
CONVERSATIONAL PROGRAMMING
EIA / ISO INPUT FUNCTION

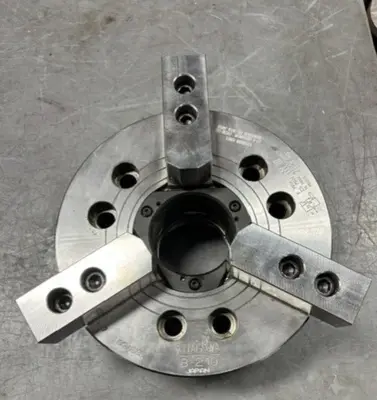

10" KITAGAWA B210 HYDRAULIC 3-JAW CHUCK
PROGRAMMABLE TOOL EYE
PROGRAMMABLE TAILSTOCK
CHIP CONVEYOR (SIDE EXIT HINGE TYPE)
HIGH POWER COOLANT
OVERALL SIZE, APPROXIMATE: 133" L-R x 68" F-B x 72" H
WEIGHT, APPROXIMATE: 13,000 LBS.
This equipment is currently unavailable. Similar equipment available now is shown below.
