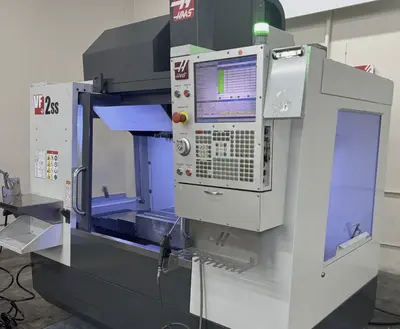

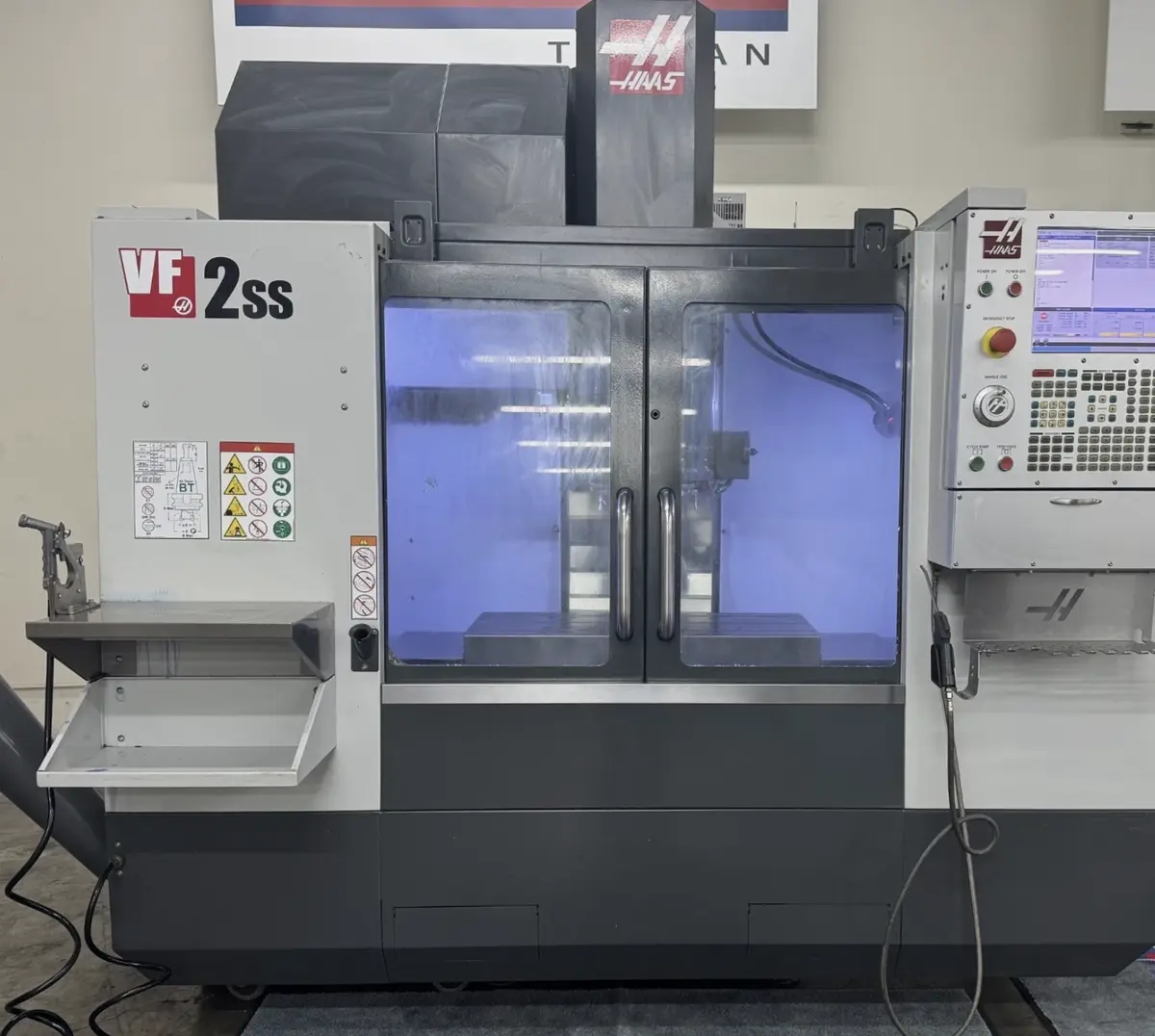

2019 HAAS VF-2SS
Have one to sell?
ConditionUsed
1 available
Used Vertical Machining Center. Key features: 36”x14” table, 30x16x20” travel, 833 IPM feed rate, 12,000 RPM spindle, 24+1 tool changer, rigid tapping, chip auger, 4th and 5th axis drive, coolant thru spindle. Total hours: 63158.
·TABLE WORKING SURFACE 36” x 14”
·TABLE LOAD CAPACITY 1,500 LBS.
·TRAVELS X,Y,Z 30” x 16” x 20”
·FEED RATES, ALL AXES 833 IPM
·RAPID TRAVERSE RATE, ALL AXES 1400 IPM
·TOOL CHANGER ARM STYLE 24 + 1
·SPINDLE HORSEPOWER 30 HP
·SPINDLE SPEEDS RANGE 12,000 RPM / Inline Direct Drive
·SPINDLE TAPER #BT-40
·OVERALL DIMENSIONS 88 in. X 92 in. X 104 in. H
APPROXIMATE WEIGHT - NET 8,000 LBS.
· RIGID TAPPING

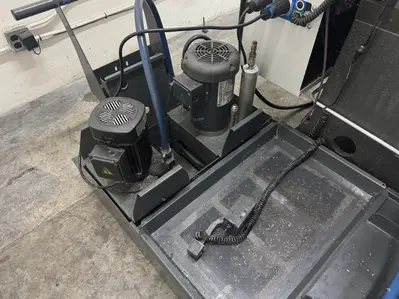

· CHIP AUGER
· 4th AXIS DRIVE
· 5th AXIS DRIVE
· COOLANT THRU SPINDLE AT 300 PSI
· WIPS Ready ~ Includes Renishaw Receiver, Software is Enabled. (probe not included)

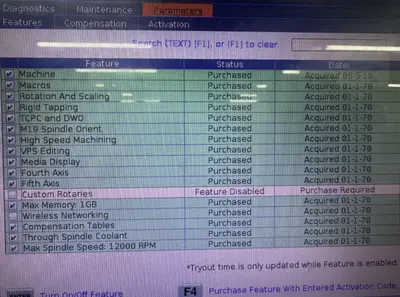

· MACROS
· ROTATION AND SCALING
· M19 SPINDLE ORIENTATION
· HIGH SPEED MACHINING
· VPS EDITING
· MEDIA DISPLAY
· PROGRAMMABLE COOLANT NOZZLE
· COMPENSATION TABLES
· 1GB MEMORY
· TCPC and DWO ~ Dynamic Work Offsets and Tool Center Point Control
· WAY SYSTEM LINEAR GUIDEWAY
· COOLANT TANK with 55 GALLON CAPACITY

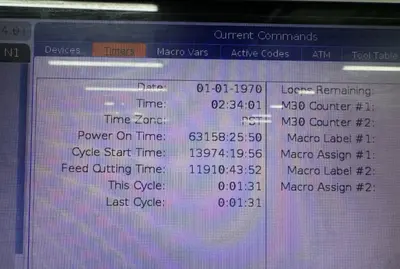

· HOURS: POWER: 63158 / CYCLE START: 13974 / FEED CUTTING: 11910
