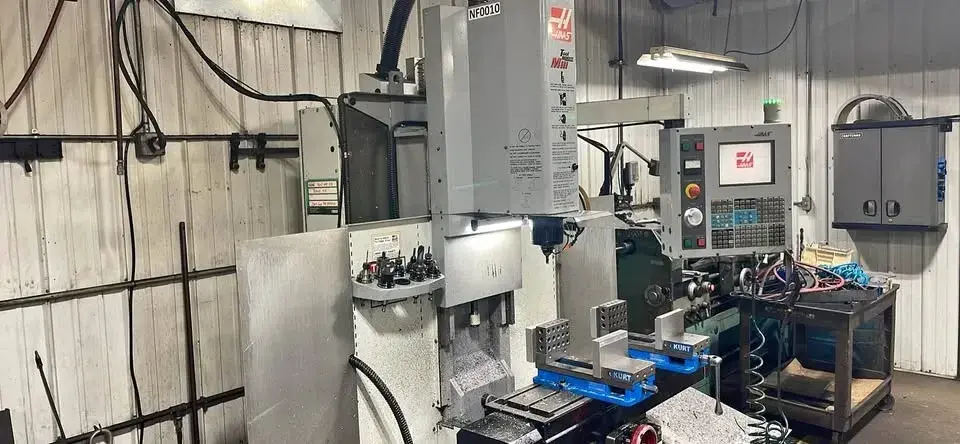

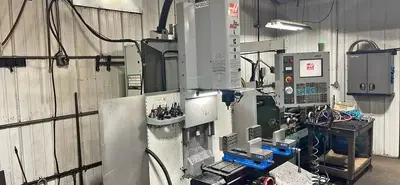

2005 Haas TM-1 Vertical Machining Center
Have one to sell?
ConditionUsed
1 available
This 2005 Haas TM-1 vertical machining center offers 30" x 12" x 16" of X/Y/Z travel over a 47.75" x 10.5" table. It runs a 7.5 HP spindle rated to 4,000 RPM, with a Haas control and coolant system.
Approximately 5,500 Hours

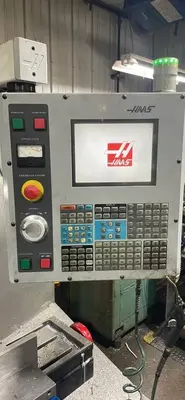

Older-generation Haas control
Coolant System
*** The spindle is currently being kept below 1,000 RPM due to considerable bearing noise. It will likely need spindle bearing work and possibly spindle belts. Selling as-is with that issue disclosed.
This 2005 Haas TM-1 vertical machining center offers 30" x 12" x 16" of X/Y/Z travel over a 47.75" x 10.5" table. It runs a 7.5 HP spindle rated to 4,000 RPM, with a Haas control and coolant system.
Imperial
| X | 30" |
| Y | 12" |
| Z | 16" |
| Power | 7.5 hp |
| RPM | 4,000 RPM |
| Table-W | 10.5" |
| Table-L | 47.75" |
| # Axis | 3 |
| Control | CNC (HAAS) |
Approximately 5,500 Hours
Older-generation Haas control
Coolant System
*** The spindle is currently being kept below 1,000 RPM due to considerable bearing noise. It will likely need spindle bearing work and possibly spindle belts. Selling as-is with that issue disclosed.
