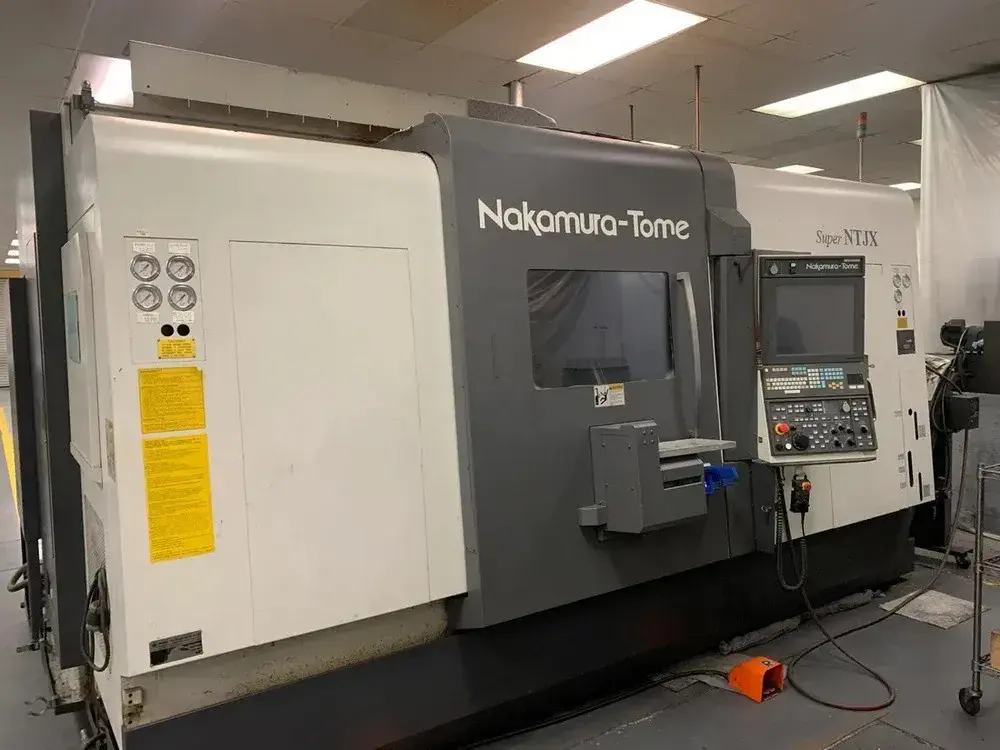

2012 Nakamura-Tome Super NTJX 5-Axis CNC Lathe
Have one to sell?
ConditionUsed
1 available

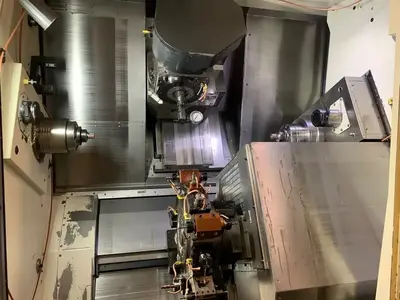

Built as a twin-spindle, twin-turret machine, this 2012 Nakamura-Tome Super NTJX 5-axis CNC lathe has dual Y-axis, an 8,000 RPM upper tool spindle fed by a 40-tool Capto C6 ATC, and a 24-position lower turret with 12 driven stations. Its 20.12 HP left spindle runs to 6,000 RPM with 2.01" bar capacity, turning up to 9.65" in diameter over 42.91" of length, with ChipBlaster high-pressure coolant.
Right Spindle Motor: 14.75 HP
Left Spindle Torque: 163.37 ft-lbs
Right Spindle Torque: 153.41 ft-lbs
Distance Between Spindle Noses: 8.27" to 50.79"
X1 Travel: 17.91"
X2 Travel: 8.76"
Z1 Travel: 42.91"
Z2 Travel: 39.57"
B2 Travel: 39.69"
Y1 Travel: ±2.76"
Y2 Travel: +0.79" / -1.97"
Upper Tool Spindle Max RPM: 8,000 RPM
Upper Tool Spindle Motor: 10.06 HP
Upper Tool Spindle Indexing Range: 230° (±115°)
Tool Shank Type: Capto C6
Max Tool Diameter: 2.76" (3.54" without adjacent tool)
Max Tool Length: 11.02"
Max Tool Weight: 17.64 lbs

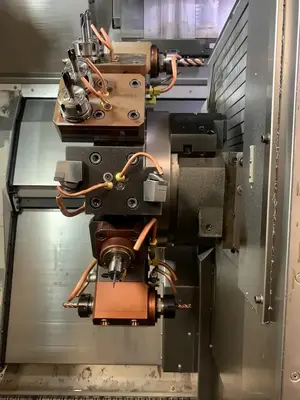

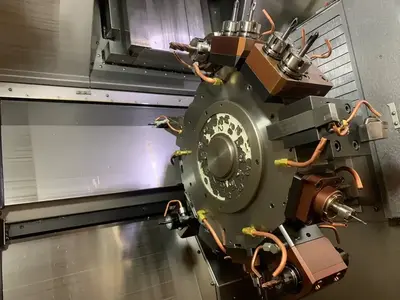

Lower Turret: 24 Positions, 12 Driven Stations
Lower Turret Live Tool Max RPM: 6,000 RPM
Lower Turret Driven Tool Motor: 7.38 HP
Approximate Weight: 30,864.72 lbs
Approximate Dimensions: 185.75" x 115.04" x 96.26"
Sub Spindle
Dual Y-Axis Configuration
40-Tool Automatic Tool Changer

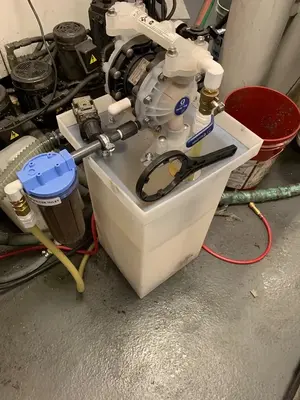

ChipBlaster High-Pressure Coolant
Mist Collector
Chip Conveyor
Oil Separator
Fire Suppression System
Hainbuch T812 Mandrel Clamping on Main and Sub

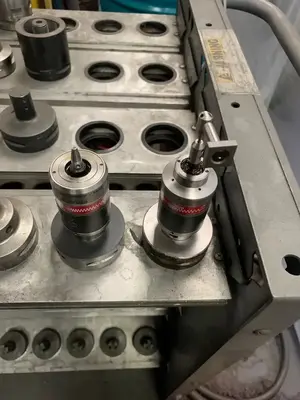

Assortment of Capto C6 Milling Holders
Toolholders Shown in Photos Included
Built as a twin-spindle, twin-turret machine, this 2012 Nakamura-Tome Super NTJX 5-axis CNC lathe has dual Y-axis, an 8,000 RPM upper tool spindle fed by a 40-tool Capto C6 ATC, and a 24-position lower turret with 12 driven stations. Its 20.12 HP left spindle runs to 6,000 RPM with 2.01" bar capacity, turning up to 9.65" in diameter over 42.91" of length, with ChipBlaster high-pressure coolant.
Imperial
| Machining Length | 42.91" |
| Chuck Size | 6" |
| Bar Capacity | 2.01" |
| Power | 20 hp |
| Max RPM | 6,000 RPM |
| Turning Dia | 9.65" |
| Tailstock | No |

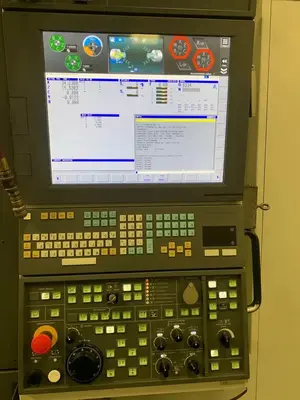

| Control | CNC |
Right Spindle Motor: 14.75 HP
Left Spindle Torque: 163.37 ft-lbs
Right Spindle Torque: 153.41 ft-lbs
Distance Between Spindle Noses: 8.27" to 50.79"
X1 Travel: 17.91"
X2 Travel: 8.76"
Z1 Travel: 42.91"
Z2 Travel: 39.57"
B2 Travel: 39.69"
Y1 Travel: ±2.76"
Y2 Travel: +0.79" / -1.97"
Upper Tool Spindle Max RPM: 8,000 RPM
Upper Tool Spindle Motor: 10.06 HP
Upper Tool Spindle Indexing Range: 230° (±115°)
Tool Shank Type: Capto C6
Max Tool Diameter: 2.76" (3.54" without adjacent tool)
Max Tool Length: 11.02"
Max Tool Weight: 17.64 lbs
Lower Turret: 24 Positions, 12 Driven Stations
Lower Turret Live Tool Max RPM: 6,000 RPM
Lower Turret Driven Tool Motor: 7.38 HP
Approximate Weight: 30,864.72 lbs
Approximate Dimensions: 185.75" x 115.04" x 96.26"
Sub Spindle
Dual Y-Axis Configuration
40-Tool Automatic Tool Changer
ChipBlaster High-Pressure Coolant
Mist Collector
Chip Conveyor
Oil Separator
Fire Suppression System
Hainbuch T812 Mandrel Clamping on Main and Sub
Assortment of Capto C6 Milling Holders
Toolholders Shown in Photos Included
