2011 Nakamura-Tome Super NTJX 5-Axis CNC Lathe
Have one to sell?
ConditionUsed
1 available

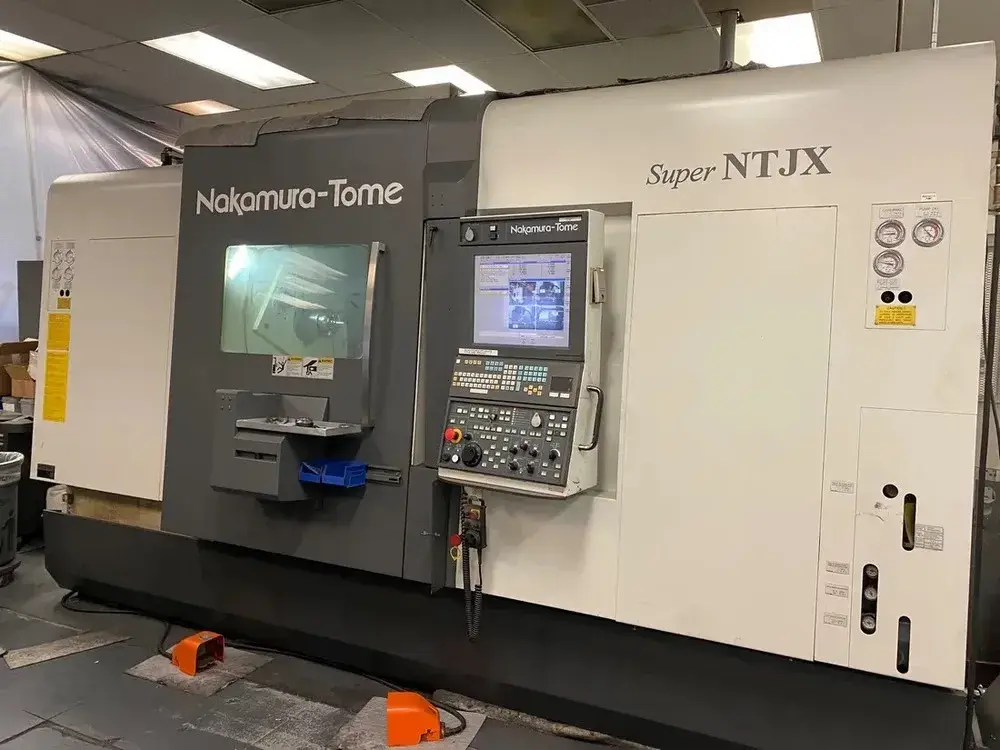

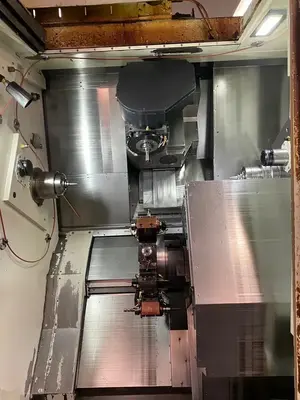

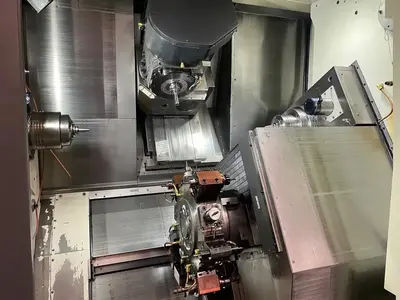

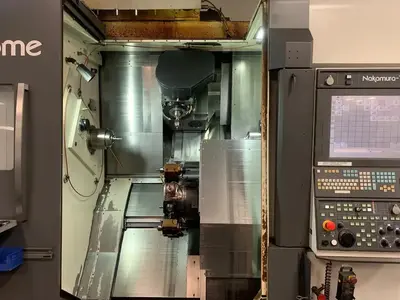

This 2011 Nakamura-Tome Super NTJX is a twin-spindle, twin-turret 5-axis CNC lathe with dual Y-axis, a 40-tool Capto C6 ATC on the 8,000 RPM upper tool spindle, and a 24-position lower turret with 12 driven stations. It turns up to 9.65" in diameter over 42.91" of length, with a 20.12 HP, 6,000 RPM left spindle, 2.01" bar capacity, and ChipBlaster high-pressure coolant.
Right Spindle Motor: 14.75 HP
Left Spindle Torque: 163.37 ft-lbs
Right Spindle Torque: 153.41 ft-lbs
Distance Between Spindle Noses: 8.27" to 50.79"
X1 Travel: 17.91"
X2 Travel: 8.76"
Z1 Travel: 42.91"
Z2 Travel: 39.57"
B2 Travel: 39.69"
Y1 Travel: ±2.76"
Y2 Travel: +0.79" / -1.97"
Upper Tool Spindle Max RPM: 8,000 RPM
Upper Tool Spindle Motor: 10.06 HP
Upper Tool Spindle Indexing Range: 230° (±115°)
Tool Shank Type: Capto C6
Max Tool Diameter: 2.76" (3.54" without adjacent tool)
Max Tool Length: 11.02"
Max Tool Weight: 17.64 lbs

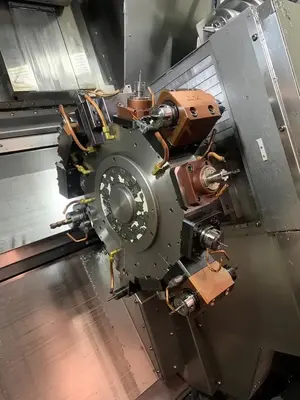

Lower Turret: 24 Positions, 12 Driven Stations
Lower Turret Live Tool Max RPM: 6,000 RPM
Lower Turret Driven Tool Motor: 7.38 HP
Approximate Weight: 30,864.72 lbs
Sub Spindle
Dual Y-Axis Configuration
40-Tool Automatic Tool Changer

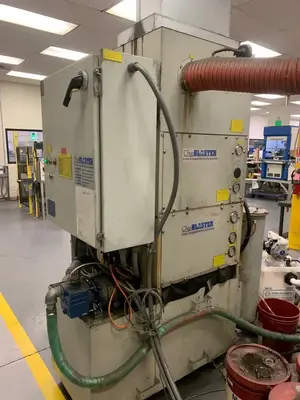

ChipBlaster High-Pressure Coolant
Mist Collector
Chip Conveyor
Oil Separator
Fire Suppression System
Hainbuch T812 Mandrel Clamping on Main and Sub
Assortment of Capto C6 Milling Holders
Toolholders Shown in Photos Included
This 2011 Nakamura-Tome Super NTJX is a twin-spindle, twin-turret 5-axis CNC lathe with dual Y-axis, a 40-tool Capto C6 ATC on the 8,000 RPM upper tool spindle, and a 24-position lower turret with 12 driven stations. It turns up to 9.65" in diameter over 42.91" of length, with a 20.12 HP, 6,000 RPM left spindle, 2.01" bar capacity, and ChipBlaster high-pressure coolant.
Imperial
| Machining Length | 42.91" |
| Chuck Size | 6" |
| Bar Capacity | 2.01" |
| Power | 20 hp |
| Max RPM | 6,000 RPM |
| Turning Dia | 9.65" |
| Tailstock | No |

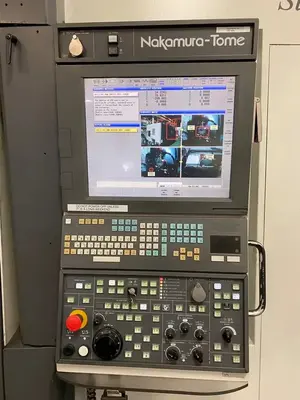

| Control | CNC |
Right Spindle Motor: 14.75 HP
Left Spindle Torque: 163.37 ft-lbs
Right Spindle Torque: 153.41 ft-lbs
Distance Between Spindle Noses: 8.27" to 50.79"
X1 Travel: 17.91"
X2 Travel: 8.76"
Z1 Travel: 42.91"
Z2 Travel: 39.57"
B2 Travel: 39.69"
Y1 Travel: ±2.76"
Y2 Travel: +0.79" / -1.97"
Upper Tool Spindle Max RPM: 8,000 RPM
Upper Tool Spindle Motor: 10.06 HP
Upper Tool Spindle Indexing Range: 230° (±115°)
Tool Shank Type: Capto C6
Max Tool Diameter: 2.76" (3.54" without adjacent tool)
Max Tool Length: 11.02"
Max Tool Weight: 17.64 lbs
Lower Turret: 24 Positions, 12 Driven Stations
Lower Turret Live Tool Max RPM: 6,000 RPM
Lower Turret Driven Tool Motor: 7.38 HP
Approximate Weight: 30,864.72 lbs
Sub Spindle
Dual Y-Axis Configuration
40-Tool Automatic Tool Changer
ChipBlaster High-Pressure Coolant
Mist Collector
Chip Conveyor
Oil Separator
Fire Suppression System
Hainbuch T812 Mandrel Clamping on Main and Sub
Assortment of Capto C6 Milling Holders
Toolholders Shown in Photos Included
