2013 HWACHEON HI-TECH 850L
Have one to sell?
ConditionUsed
1 available

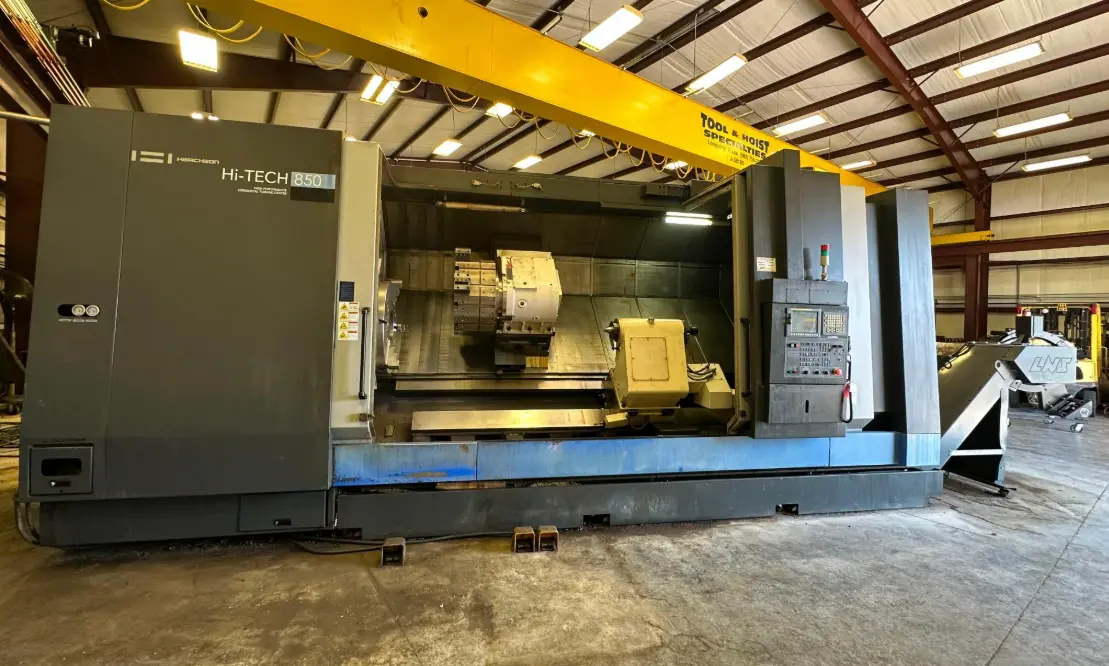

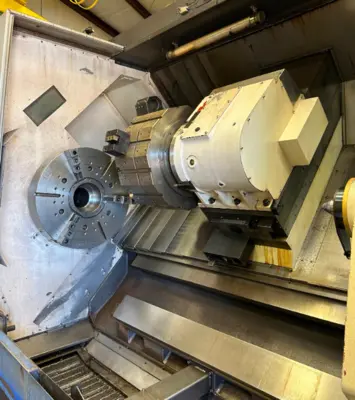

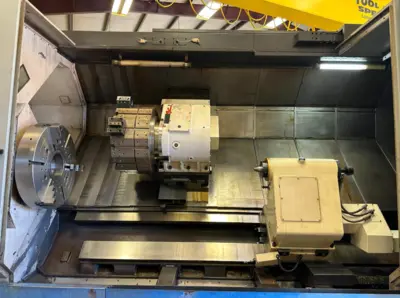

Used Multi-Axis CNC Lathe, features a 41.34" swing, 137.8" machining/turning length, 36.22" max turning diameter. Equipped with Fanuc 0i-TD control, 32" Samchully chuck, programmable tailstock, and more. Cut hours: 14,437.
SWING 41.34"
MACHINING LENGTH 137.8"
MAX. TURNING LENGTH 137.8"
MAX. TURNING DIAMETER 36.22"
X-AXIS 19.1"
Z-AXIS 143.7"
CHUCK SIZE 32"
BAR CAPACITY 6.46"
SPINDLE BORE 7.28 in
SPINDLE NOSE A2-15
POWER 60.4 hp
MAX RPM 1,500 RPM

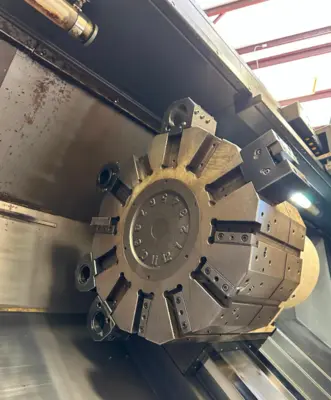

TURRET STATIONS 12
CUT HOURS 14,437 hr.
DIMENSIONS 307″ x 114.17″ x 118.11″
WEIGHT 48,502 Lbs
-Fanuc 0i-TD CNC Control

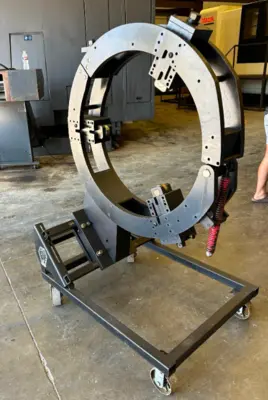

-Schmidt Tool RIP-131 Heavy Duty Traveling Steady Rest
- Clamp Cap. 7,000 Lbs
- Workpiece Dia. 12.1" - 31"
- Bearing Type NUTR35
- Steady Rest Weight 809 Lbs

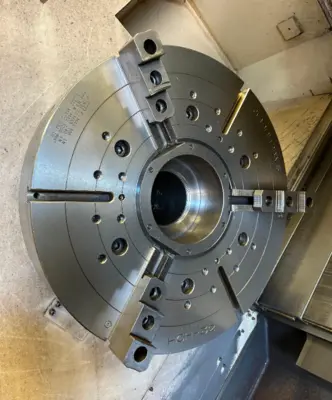

-32" Samchully HCH-32 3 Jaw Chuck

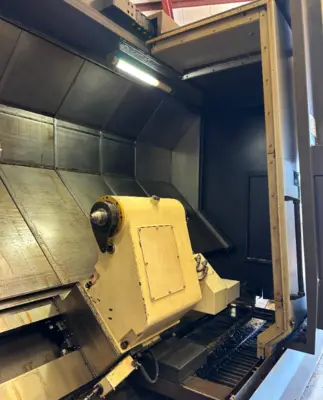

-Programmable Tailstock
-Renishaw Tool Setter RP7 Probe
-LNS Chip Conveyor & Remote Control Box
-Manuals & Docs
-TAILSTOCK
