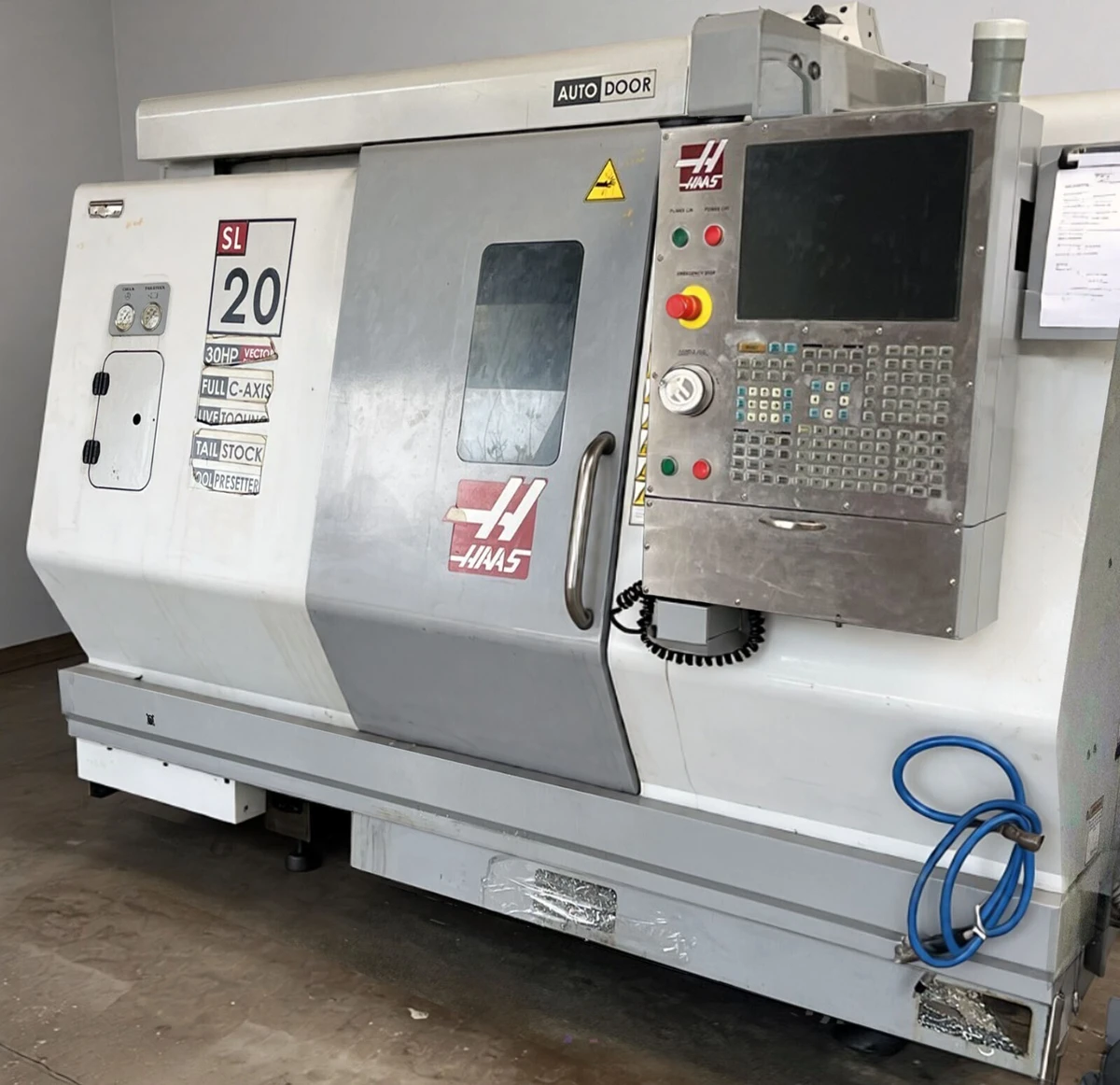

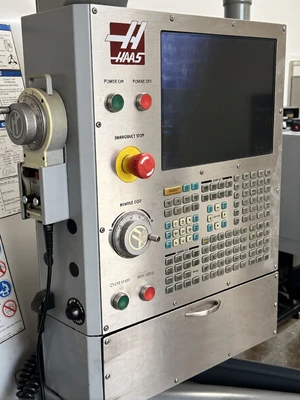

2007 HAAS SL-20TAPL

Over Front Apron 20.0" 508 mm
Over Cross Slide 9.5" 241 mm
CAPACITIES S.A.E. Metric
Chuck Size 8.3" 210 mm
Max Cutting Diameter 10.0" 254 mm
Max Cutting Length 20.0" 508 mm
Max Cutting Length w/Std Workholding 17.0" 431 mm
Bar Capacity 2.0" 51 mm
Between Centers 24.0" 610 mm
TRAVELS & FEEDRATES S.A.E. Metric
X Axis 8.45" 214.6 mm
Z Axis 20.00" 508.0 mm
Rapids, X/Z 710 in/min 18.0 m/min
Max Thrust 3400 lb 15124 N

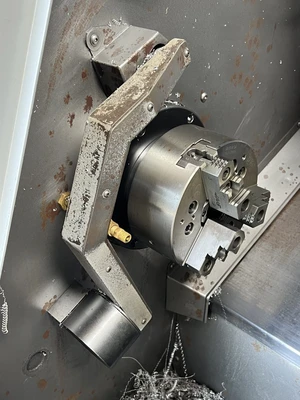

SPINDLE S.A.E. Metric
Spindle Nose A2-6 A2-6
Max Rating 20 hp 14.9 kW
Max Speed 4000 rpm 4000 rpm
Max Torque 154 ft-lb @ 650 rpm 209 Nm @ 650 rpm
Spindle Bore ø 3.00" 76.2 mm
Draw Tube Bore ø 2.06" 52.3 mm

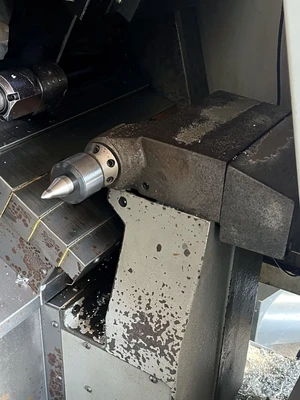

WITH TAILSTOCK OPTION S.A.E. Metric
Travel 20" 508 mm
Taper MT4 MT4
Thrust (max) 1500 lb 6672 N
Thrust (min) 300 lb 1334 N

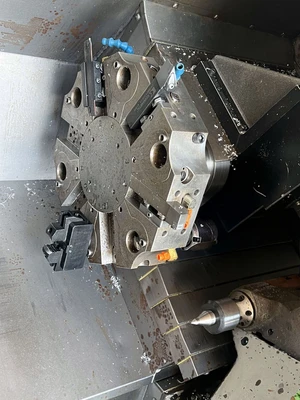

TURRET S.A.E. Metric
Number of Tools 10
OD vs ID Tools Any Combination
Tool Size (OD turning) 1.00" 25.4 mm
Index Time (one tool) 1 sec 1 sec
Boring Bar Rear Clearance (from turret face) 4.25" 108.0 mm
ACCURACY S.A.E. Metric
Positioning (±) 0.0002" 0.005 mm
Repeatability 0.0001" 0.003 mm
GENERAL S.A.E. Metric
Air Required 4 scfm, 100 psi 113 L/min, 6.9 bar
Coolant Capacity 40 gal 151 L
Power (options may increase requirement) 354-488 VAC/30 A 354-488 VAC/30 A
Machine Weight 9000 lb 4082 kg
