2020 HAAS ST-30
Have one to sell?
ConditionUsed
1 available

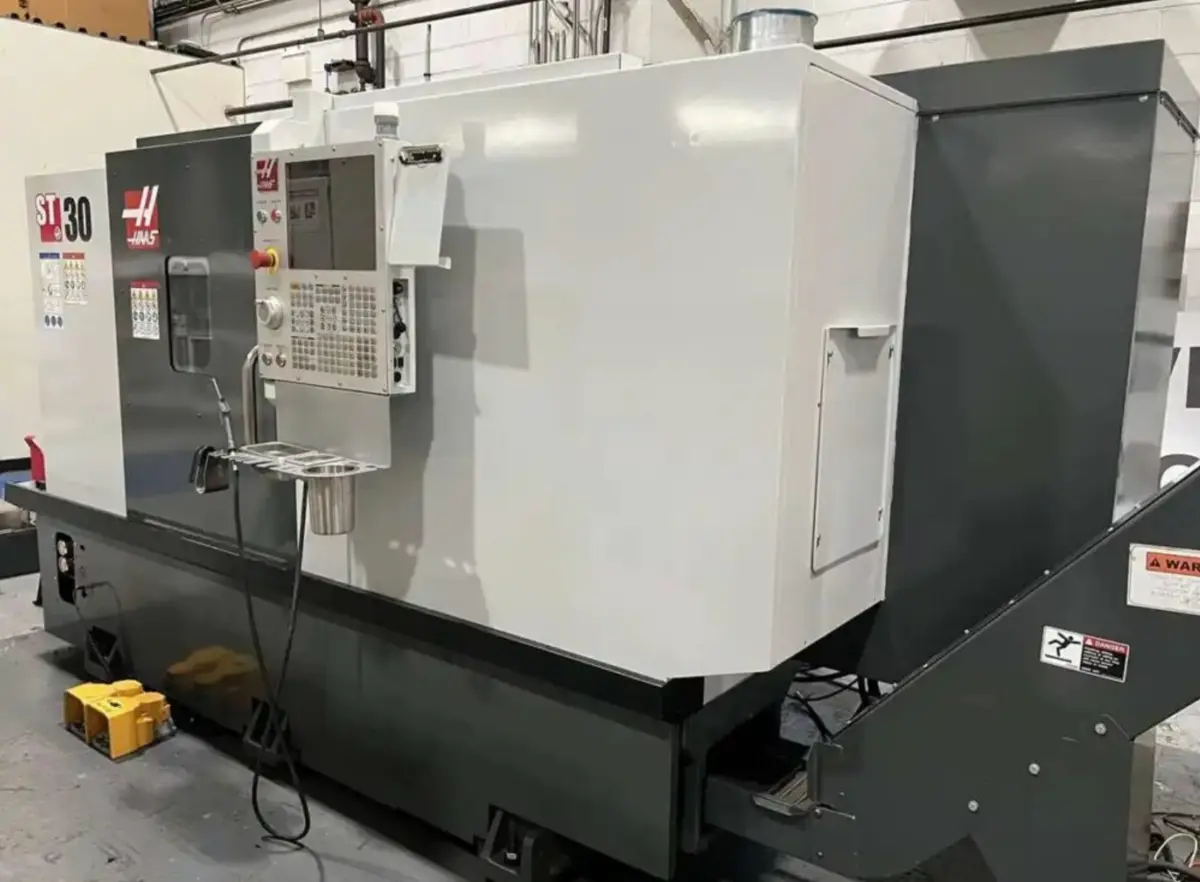

Used CNC Lathe, 21" swing, 32.5" max cutting length, 15" max cutting diameter, 10" ROYAL chuck. Features Haas CNC Control, hydraulic tailstock, chip conveyor. 3" bar capacity, 4,500 RPM spindle, 12-ATC tool changer, 1,911 hours feed cutting time.
Swing:21"
Max. Cutting Length:32.5"
Max. Cutting Diameter:15"
Chuck:10" ROYAL Master QG-80 Collet Chuck
Bar Capacity:3"
Spindle Speed:4,500 RPM
Spindle Bore:3.5"
Spindle Nose:A2-6
Spindle Motor:30 HP
Tool Changer:12-ATC
X-Axis Travel:12.5"
Z-Axis Travel:26"
X/Z Rapid Traverse:945 IPM
Feed Cutting Time:1,911 Hours

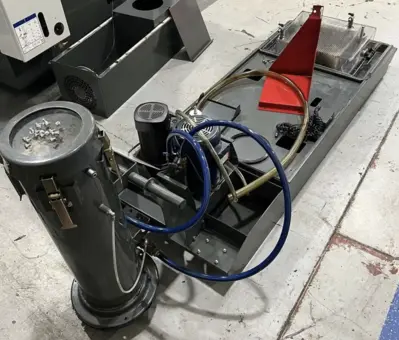

Haas CNC Control, Programmable Hydraulic Tailstock, Automatic Door, Chip Conveyor, High Pressure Coolant System.
