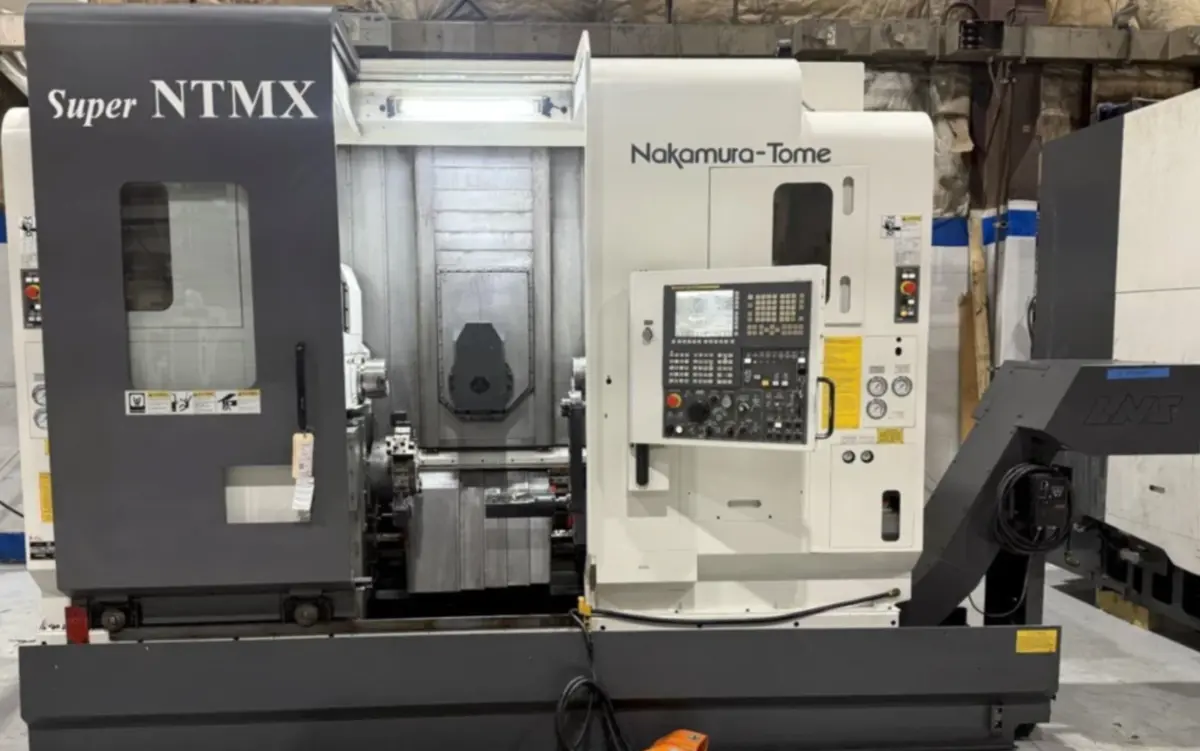

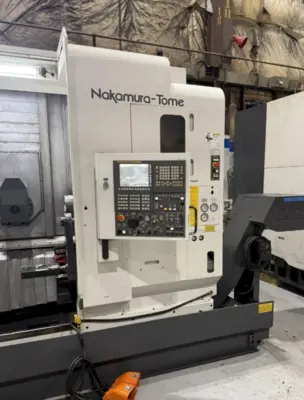

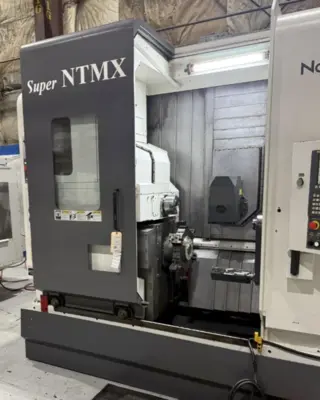

2011 NAKAMURA-TOME SUPER NTMX
Have one to sell?
ConditionUsed
1 available
5-Axis Lathe, used. Key features: 9-axis control with Fanuc 31-A5, milling spindle, 6" chuck, and 38.58" distance between centers. Dimensions: 190"x165"x104" with chip conveyor.
Chuck Size 6"
Bar Capacity 2"
Turning Diameter 8.66"
Spindle Speed 5,000 RPM
Distance Between Centers 38.58"

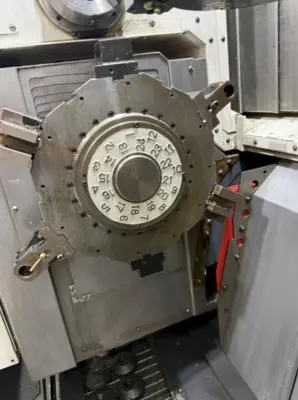

Turret 24 Station
Sub-Spindle 5,000 RPM, 6" Chuck
C1/C2 Axis Index 0.001°
X-Axis Travel 22.44"
Y-Axis Travel 7.86" (+/- 3.94")
Z-Axis Travel 51.06"
Main Motor 15 HP
Machine Weight 32000 Lbs
Machine Dimensions 190" x 165" x 104" with Chip Conveyor

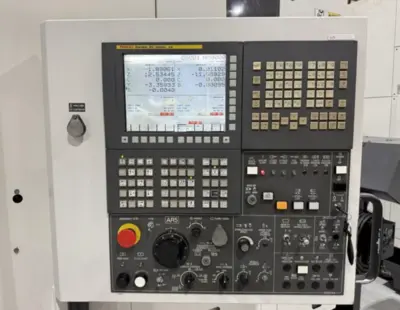

Control Fanuc 31-A5

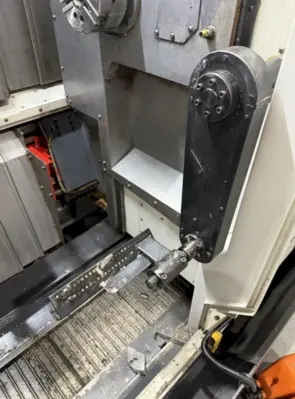

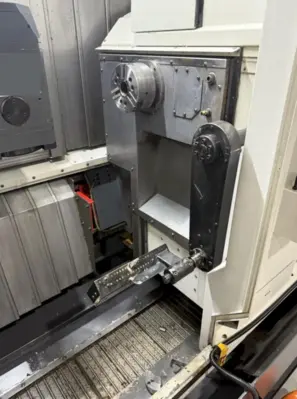

Milling Spindle (CAPTO C4)
Coolant Tank & Pump
Sub Spindle
Twin Turret
9-Axis
C-Axis Live Tooling, Y-Axis
C-Axis Live Tooling, Y-Axis
Chip Conveyor
