2017 AMADA EG-6013 AR
Have one to sell?
ConditionUsed
1 available

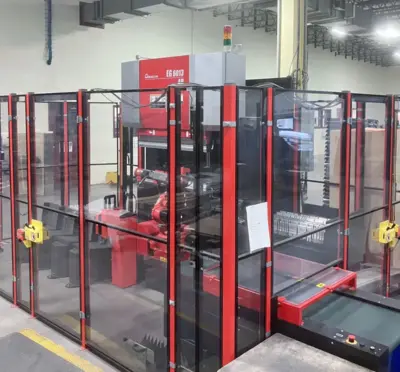

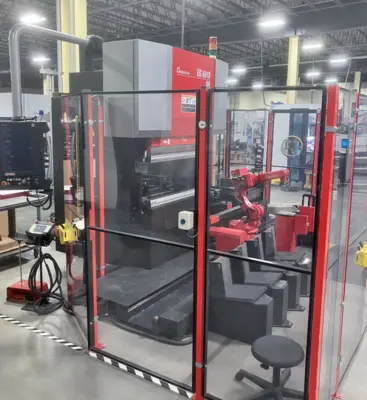

2017 AMADA EG-6013 AR press brake with a fully automatic bending system, AMADA control, 54.4t tonnage, 1,399.5mm bending length, and a lot more. Comes equipped with servo motors, an AMADA EG-ROBOT, and tooling including punches and dies.
TONNAGE 54.431 t
BENDING LENGTH 1,399.5 mm
TABLE LENGTH 1,399.5 mm
DISTANCE BETWEEN HOUSINGS 12.1 m
MAX STROKE 149.86 mm
THROAT 231.14 mm
OPEN HEIGHT 635 mm
RAM SPEED - APPROACH 8.6 INCHES/SECOND
RAM SPEED - BENDING 0.98 INCHES/SECOND
Dimensions 230" x 120" x 120"
FULLY AUTOMATIC BENDING SYSTEM

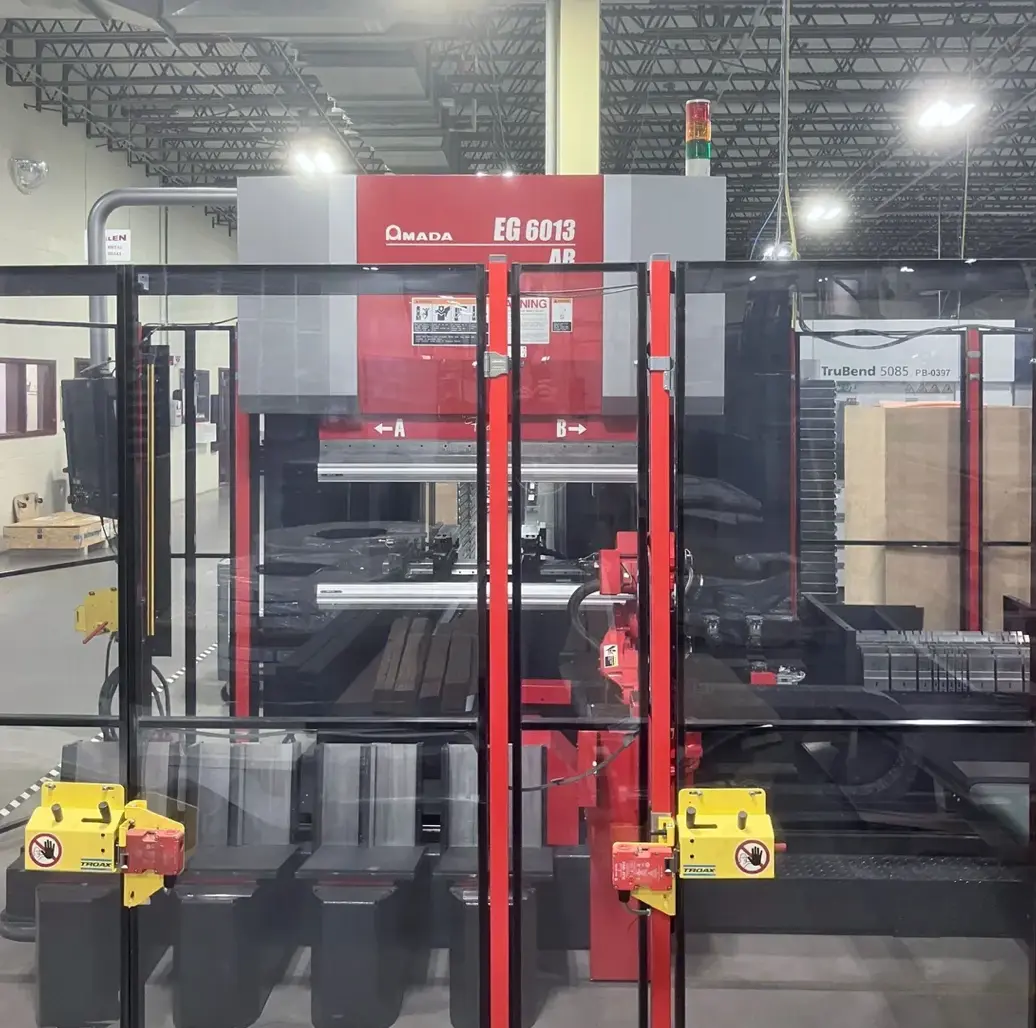

AMADA EG-6013R PRESS BRAKE (60 TON CAPACITY)

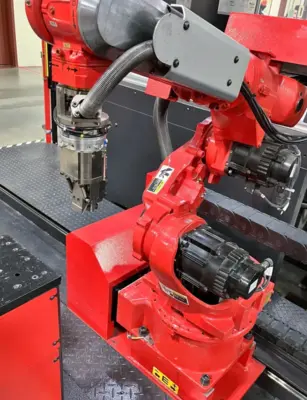

AMADA EG-ROBOT (22LB CAPACITY, 6 ARTICULATED AXES & 1 TRAVEL AXIS)
AMADA AMNC 3i CONTROL
DUAL SERVO PRESS (DSP) DRIVE MECHANISM
SERVO-ELECTRIC MOTORS
DEDICATED ENCLOSURE
(4) PART LOADING TABLES
UNLOADING CONVEYOR
GRIPPER STATION
TOOL STOCKER

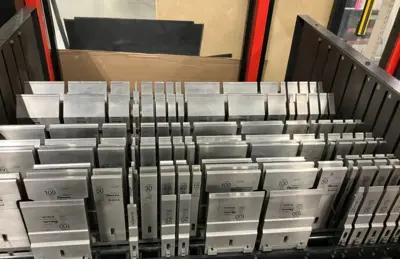

TOOLING INCLUDED:
PUNCHES:
001611 - 695mm 2.3mm radii / 86°
206665 E- 695mm 0.6mm radii / 30°
205665 E - 695mm 0.6mm radii / 86°
204665 E - 695mm 0.6mm radii / 86°
DIES:
897835 - 695mm
897865 - 695mm
898265 - 695mm
891235 - 695mm
