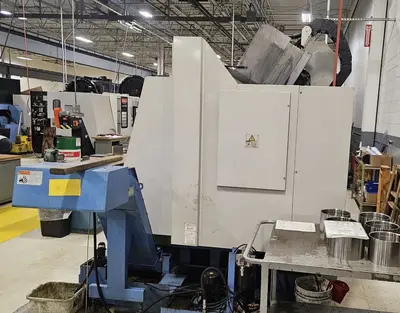

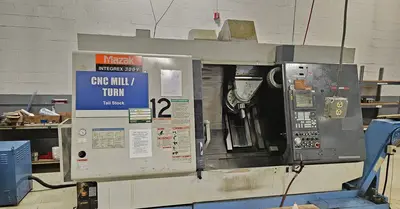

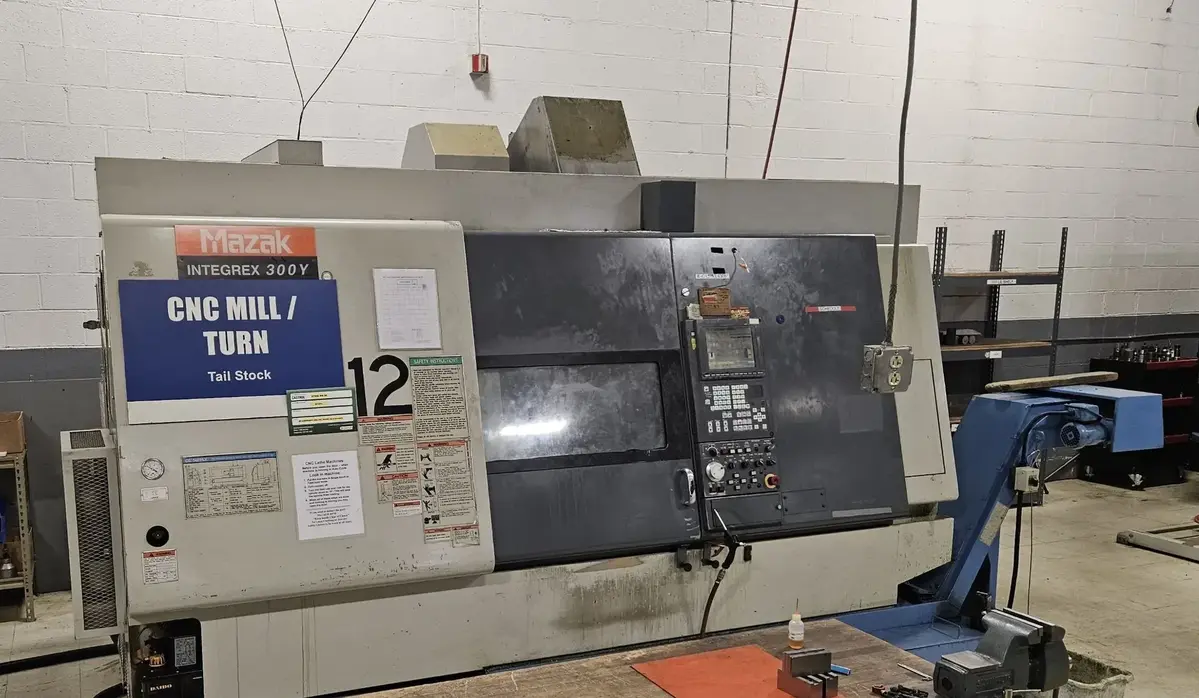

1999 Mazak Integrex 300Y 5-Axis CNC Lathe
Have one to sell?
ConditionUsed
1 available

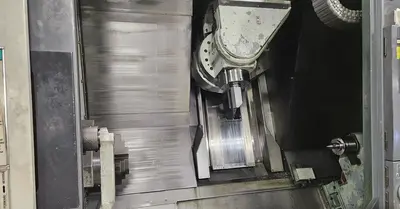

This 1999 Mazak Integrex 300Y mill-turn lathe pairs a 40-position tool changer and KM63 tooling with a 6,000 RPM, 20 HP rotary tool spindle, Y-axis, and tailstock. It offers 24.01" of swing and 40.71" of machining length, with a 10" 3-jaw chuck, 3.46" spindle bore, and a 35 HP main spindle reaching 3,500 RPM.
Swing Over Carriage: 15.35"
X-Axis Travel: 28.8"
Y-Axis Travel: 8.26"
Z-Axis Travel: 43.1"
C-Axis: 0.001 Degree
Spindle Bore: 3.46"
Rotary Tool Spindle Speed: 6,000 RPM
Rotary Tool Motor: 20 HP

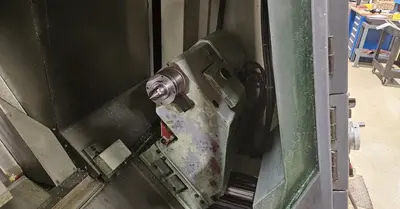

Tailstock Travel: 36.2"
Approximate Floor Space: 150" x 86"
Approximate Weight: 19,000 lbs

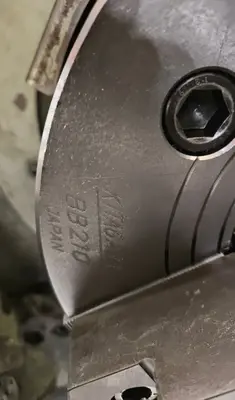

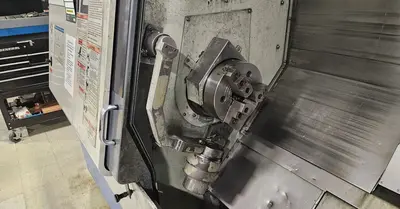

3-Jaw Chuck

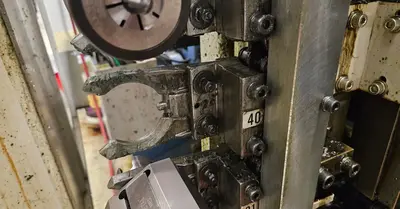

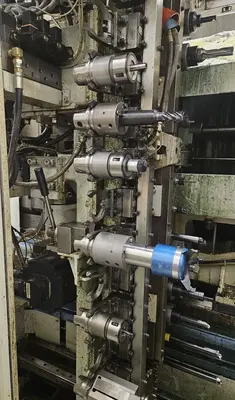

40 Position Tool Changer

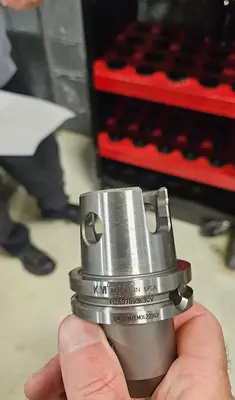

KM63 Tooling

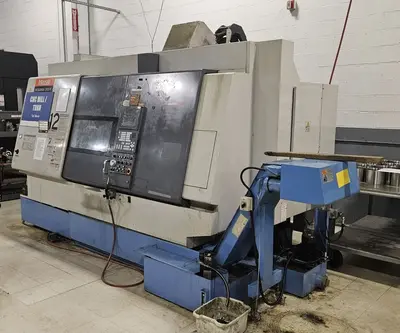

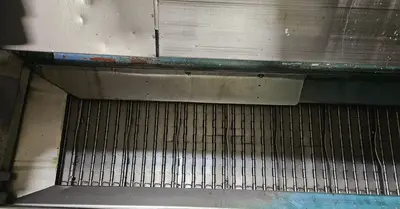

Chip Conveyor
This 1999 Mazak Integrex 300Y mill-turn lathe pairs a 40-position tool changer and KM63 tooling with a 6,000 RPM, 20 HP rotary tool spindle, Y-axis, and tailstock. It offers 24.01" of swing and 40.71" of machining length, with a 10" 3-jaw chuck, 3.46" spindle bore, and a 35 HP main spindle reaching 3,500 RPM.
The Mazak Integrex 300Y, also searched as Integrex 300 Y, Integrex-300Y, or Integrex 300, is a mill-turn turning center with Y-axis and live tooling (multitasking lathe).
This 1999 machine has 28.8" of X-axis travel, 8.26" of Y-axis travel, and 43.1" of Z-axis travel, with a 0.001 degree C-axis and 36.2" of tailstock travel. It comes equipped with a chip conveyor, with an approximate floor space of 150" x 86" and an approximate weight of 19,000 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
