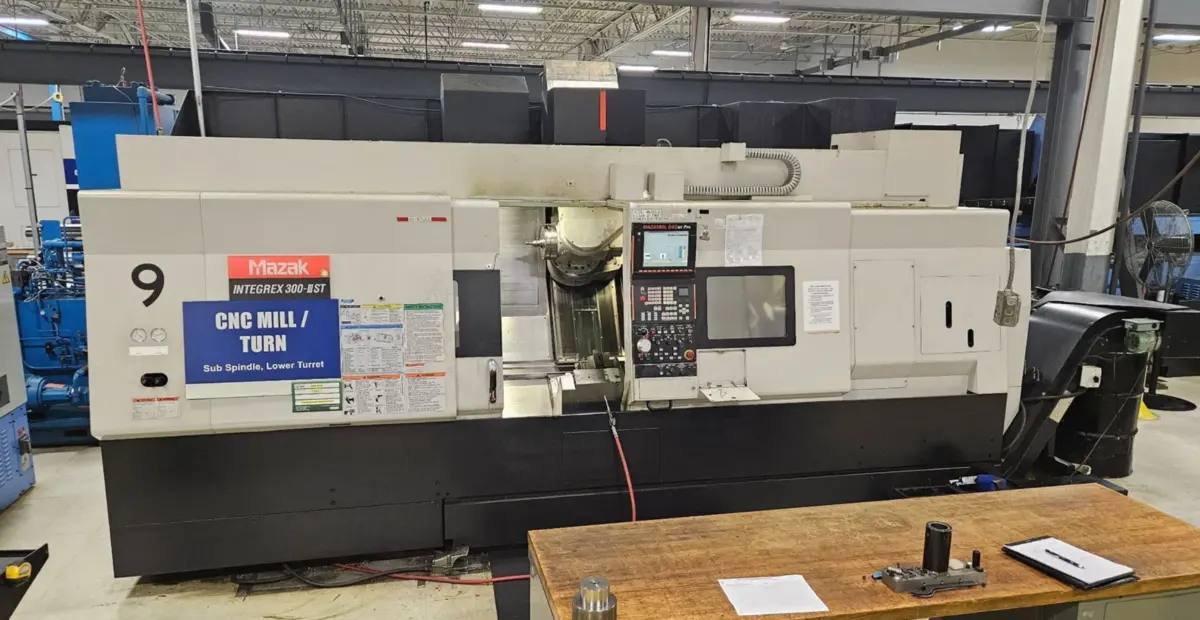

2004 MAZAK INTEGREX 300-IIIST

SWING 33.5"
MACHINING LENGTH 60"
CHUCK SIZE 10"
BAR CAPACITY 3"
POWER 35 hp
MAX RPM 4,000 RPM
TURNING DIA 10"
DIMENSIONS 202" x 98"
WEIGHT 30,000 bs
Main SpindleSpeed 4,000 RPM
Sub Spindle Speed 4,000 RPM
Rotary Tool Speed 12,000 RPM
X/Y/Z/B Axis Travel (Upper Spindle) 60"/9.1"/62.4"
B-Axis Travel 225 Degrees
C-Axis Main Spindle 0.0001 Degree
C-Axis Sub Spindle 0.001 Degree
X2/Z2 Axis Travel (Lower Turret) 9.1"/60.2"
Tool Storage Capacity:
Upper Spindle Tool Capacity, 40 Tools
Lower Turret, 9 Position Drum
Main Spindle Bore 3.46"
Main Spindle Motor 40 HP
Sub spindle Motor 35 HP
Milling Motor 25 HP
