| Swing | 25.25" | 641.35 mm |
| Machining Length | 16.5" | 419.1 mm |
| # Axis | 2 | 2 |
| Chuck Size | 6.5" | 165.1 mm |
| Bar Capacity | 1.75" | 44.45 mm |
| Power | 15 hp | 11.2 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Turning Dia | 14" | 355.6 mm |
| Tailstock | Yes | Yes |
| Control | CNC (HAAS) | CNC (HAAS) |
| Dimensions | 126″x70″x81″ | 126″x70″x81″ |
| Weight | 7,900 lbs | 7,900 lbs |
15 hp
6000 RPM Spindle

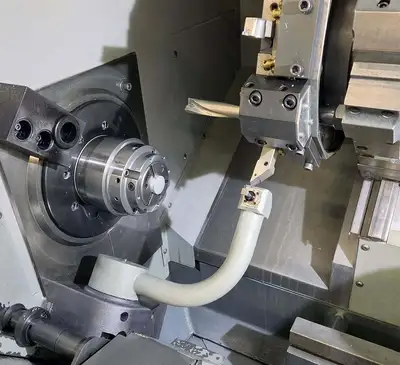

6.5” Hydraulic Chuck (A2-5)
14” diameter x 16” length capacity
1.75” bar capacity
X Travel 7.88”
Z travel 16”
1200 IPM Rapids

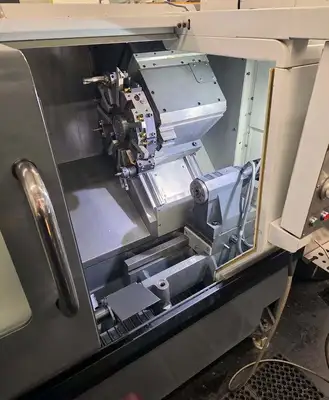

12-Station Bolt-On Turret
0.75” Shank
• Haas Belt-Type Chip Conveyor
• Parts Catcher System
• Manual Hydraulic Tailstock
• Automatic Tool Pre-setter
• 220V 3-Phase, 40 Full-Load Amps
• (Mist Collector shown is NOT included)

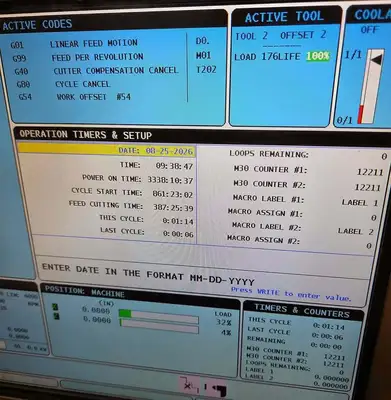

Only 387 feed cutting hours and 861 hours cycle start time.
This equipment is currently unavailable. Similar equipment available now is shown below.
