2008 MAZAK QUICK TURN NEXUS 200-II
Unavailable

2008 MAZAK QUICK TURN NEXUS 200-II

CNC Lathes
Manufacturer:
MAZAK
Model:
QUICK TURN NEXUS 200-II
Year:
2008
Stock #:
X2X4503

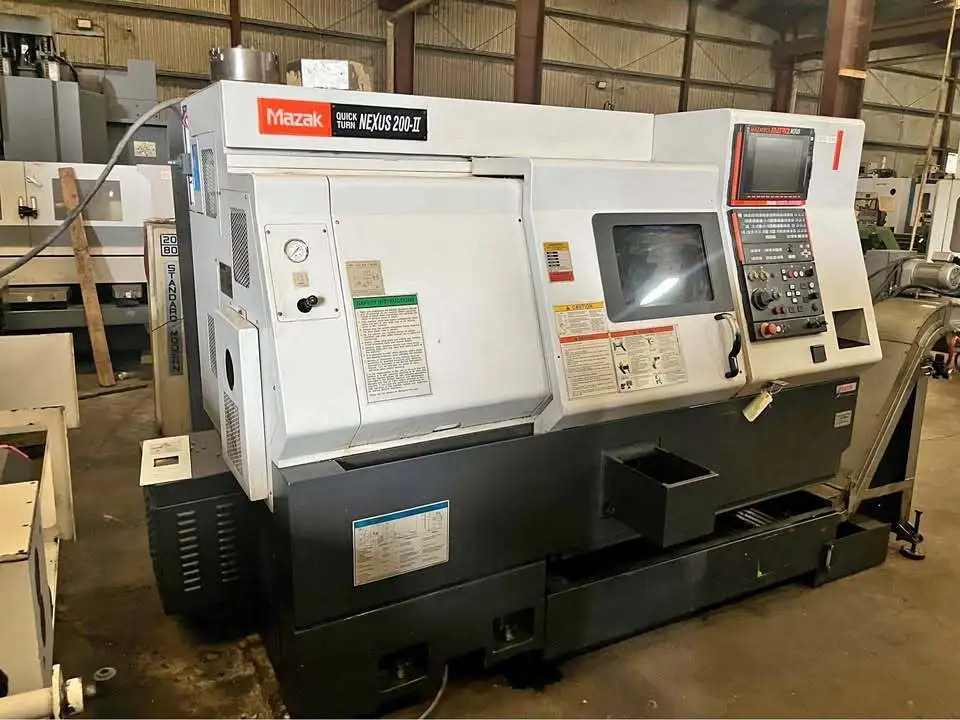

Used CNC Lathe offers precision with a max swing of 24.02", spindle speed of 5,000 RPM, and 12-position turret. Equipped with Mazak Nexus CNC Control, an 8" hydraulic chuck, and tailstock. Approx. weight: 11,000 lbs.

Maximum swing.......................... 24.02"
Swing over carriage.................... 13.78"
Maximum machining length............... 13.78"
Spindle bore / Bar work capacity....... 2.99"/2.56"
X-Axis travel.......................... 7.5"
Z-Axis travel.......................... 21.125"
Chuck size............................. 8"
Spindle speed.......................... 5,000 RPM
Spindle nose........................... A2-6
Turret................................. 12 positions
Tailstock stroke....................... 21.75"
Main motor............................. 30/35 HP
Approximate floor space ............... 104.3" x 70.1" x 72.4" high
Approximate machine weight ............ 11,000 lbs

All specifications are approximate, provided for reference only, and not binding. Buyers are responsible for verifying all details. Inspection prior to purchase is welcome and encouraged.

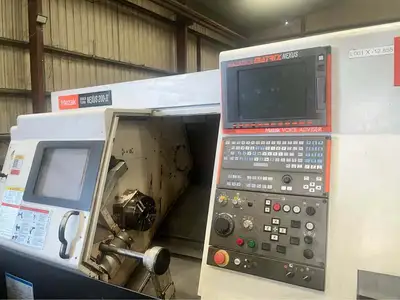

* Mazak Nexus CNC Control
* 8" Kitagawa 3-jaw Hydraulic Chuck
* Tail Stock
* All Available Tool Holders

This equipment is currently unavailable. Similar equipment available now is shown below.
