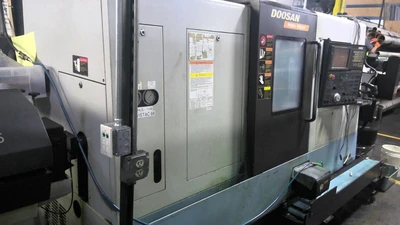

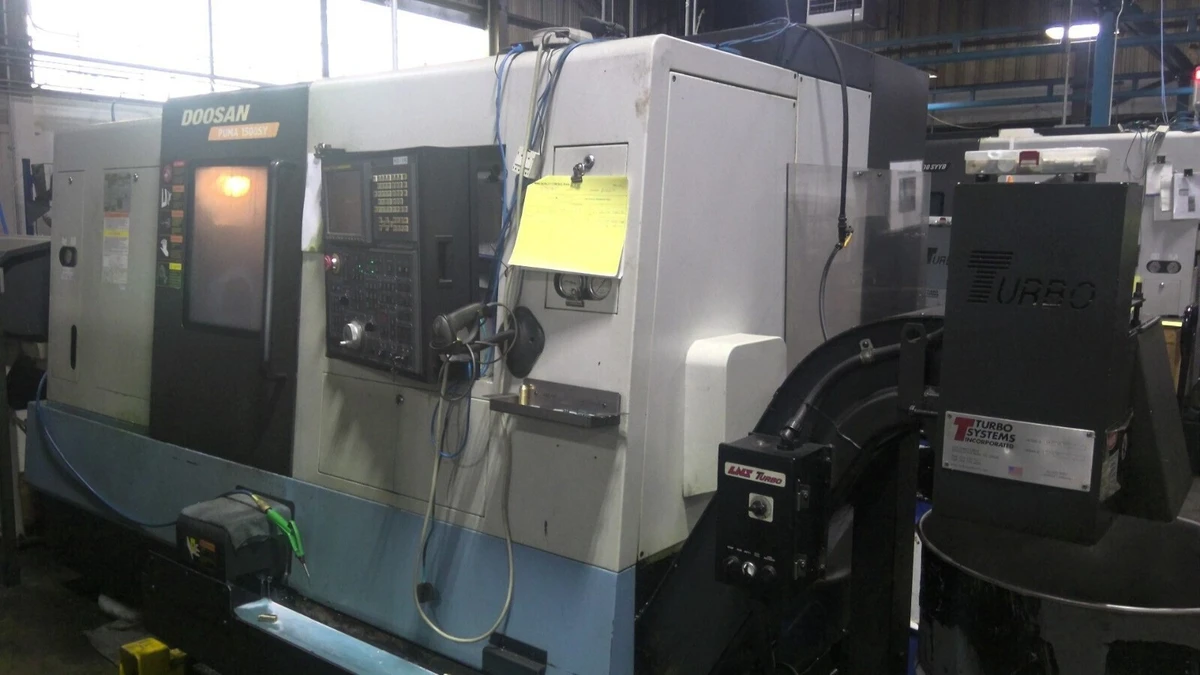

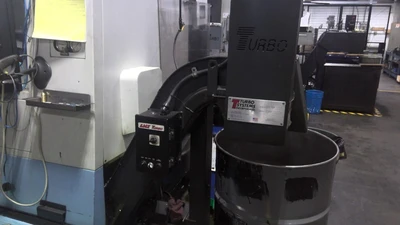

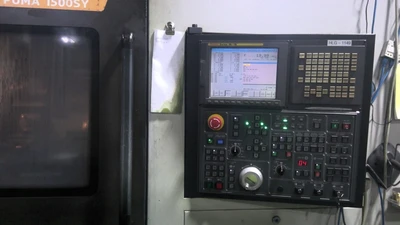

2007 DOOSAN PUMA 1500SY

Swing over bed 23.6"
Swing over carriage 21.6"
Maximum bar capacity 1.75”
Maximum turning diameter, main spindle 13.0"
Distance between main & subspindle nose 33.8”
MAIN SPINDLE:
Spindle speed 60 – 6,000 RPM
Spindle nose ASA-A2-5
Draw tube I.D. 1.81"
Spindle bore diameter 2.08"
AC high torque spindle motor (20 min. rating) 10 HP
Maximum spindle torque (40% ED) 99 ft-lbs
MAIN SPINDLE C-AXIS:
Minimum programmable angle (degrees) .001
Rapid traverse rate (RPM) 200
C-axis repeatability +/- .006 deg.
C-axis positioning accuracy .0167 deg.
Y-AXIS:
Y-axis travel 4.0” (± 2.0”)
Y-axis rapid traverse rate 295 IPM
Y-axis repeatability .00012”
BED, SADDLE, & CROSS SLIDE:
X axis travel 9.84”
Z axis travel 22.8”
Angle of slant bed 30 degrees
X axis guideway span 8.9”
Z axis guideway span 14.2”
X axis rapid traverse rate 790 IPM
Z axis rapid traverse rate 945 IPM
X and Z axis ball screw diameter 1.3"
X axis feed thrust (continuous/intermittent) 1,354 / 2,167 lbs
Z axis feed thrust (continuous/intermittent) 1,354 / 2,167 lbs
B axis feed thrust (continuous/intermittent) 903 / 1,444 lbs
Y axis feed thrust (continuous/intermittent) 903 / 1,444 lbs
X axis repeatability + 0.00008"
Z axis repeatability + 0.00012"

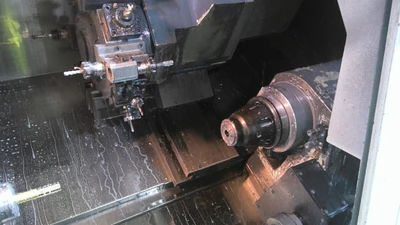

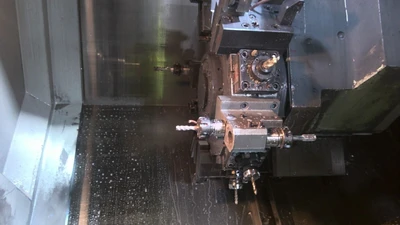

TURRET:
Number of tools 12
Number of index positions 24
Tool holder type BMT 55P
Turning tool shank size .75" (1.0” opt*)
Boring bar diameter, main spindle 1.25" (1.5” opt*)
Boring bar diameter, sub spindle 1.0”
Turret index time (next station swivel time) 0.1 sec.
Tool selection Bi-directional
Turret index repeatability + .0005 degree
Refer to turret construction section for additional explanation
ROTATING TOOLS:
Rotating tool RPM 50 - 5,000 RPM
Rotating tool spindle motor (10 min. rating) 7.5 Hp
Rotating tool torque (10 min. rating) 34.7 ft-lbs.
Rotating tool collet type ER25
Milling collet capacity 1/16” to 5/8"
Max. tool length facing sub-spindle with standard Z head 1.7”
Max. tool length facing sub-spindle with optional offset Z head 3.9”
Max. tool length facing sub-spindle with opt. double sided Z head 3.3”
Max. X-axis tool length with Y-axis in any position 3.4”
Max. X-axis tool length with Y-axis at home position * 5.4”
(a tool longer than 3.4” should not be facing the bottom guard when
moving minus with the Y-axis)
SUB-SPINDLE:
B axis travel (sub-spindle) 22.8”
Sub-spindle guideway span 9.8”
Spindle speed 60 – 6,000 RPM
Spindle motor (30 min. rating) 10 HP
Maximum torque (30 min. rating) 34.7 ft-lbs.
Spindle nose A2#5
Spindle bore 1.77”
Draw tube ID 1.38"
Rapid traverse rate 787 IPM
Minimum programmable angle .001 degree (full C axis)
COOLANT SYSTEM:
Coolant pump pressure 65 PSI
Coolant pump motor 1.2 HP
Coolant tank capacity 39 gallons
HYDRAULIC / LUBRICATION:
Hydraulic tank capacity 2.6 gal.
Hydraulic oil requirement (or equivalent) Mobil DTE #24 or Shell Tellus 32
Way lubrication tank capacity 0.5 gal.
Way lubrication oil requirement (or equivalent) Mobil Vactra #2 or Shell Tonna T68
Main / subspindle oil chiller tank capacity 6.1 gal.
Main / subspindle oil chiller oil requirement (or equivalent) Mobil Velocite #6 or Shell Tellus C10
GENERAL:
Floor space 123” x 70”
Net weight 13,200 lbs
Voltage required 205 - 235 volt / 3 phase
Power requirement 40 KVA (104 amps at 220 volts)
