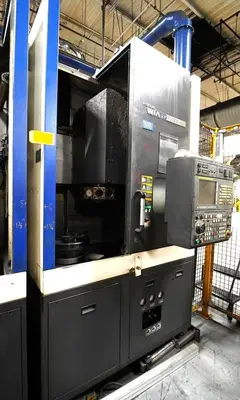

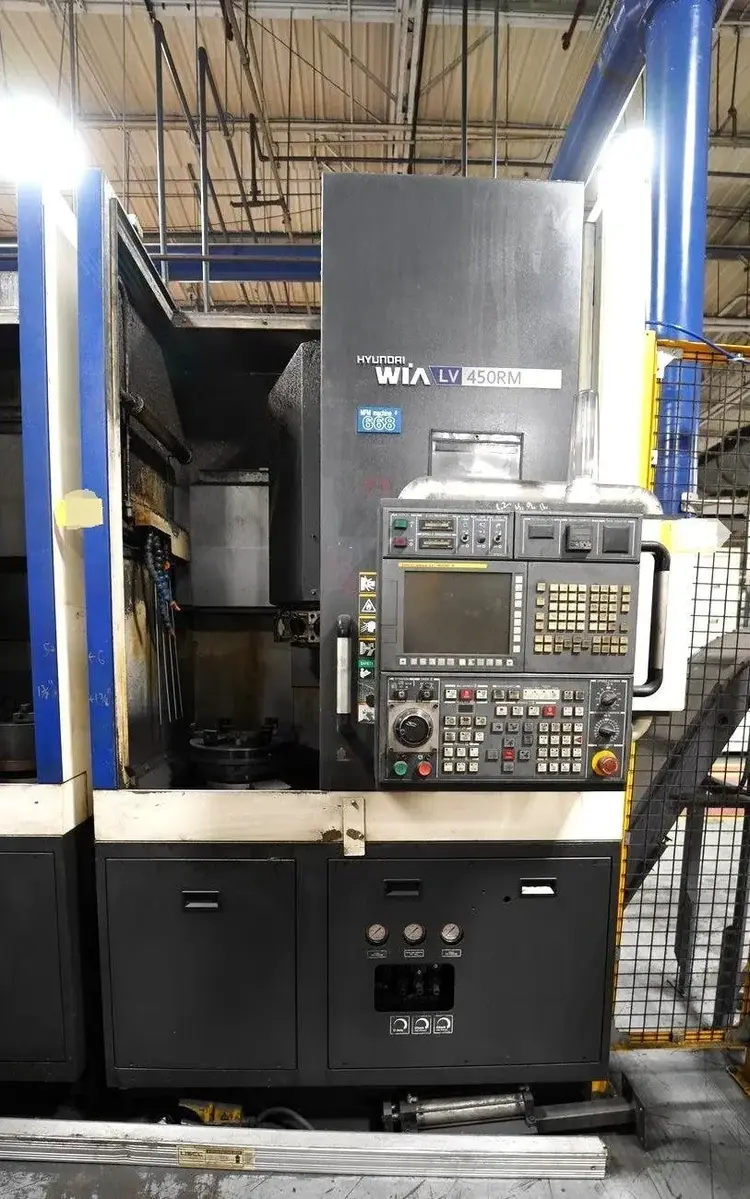

2014 Hyundai WIA LV450RM CNC Vertical Lathe with Live Tooling
Have one to sell?
ConditionUsed
1 available
This 2014 Hyundai WIA LV450RM CNC vertical lathe has live milling on a 12-position turret with C-axis positioning, and its rotary tools run at 4,000 RPM and 7.3 HP under a Fanuc 32i-Model B control. It turns a 15" chuck at up to 3,000 RPM from a 29.5 HP main motor, with 24.4" of swing and an 18.3" turning height.
Chuck Size: 15"
Spindle Nose: A2-8
Number of Ranges: 1
X-Axis Travel: 12.2"
Z-Axis Travel: 19.5"
C-Axis Indexing: 0.001 Degree
Rotary Spindle Speed: 4,000 RPM
Rotary Spindle Horsepower: 7.3 HP
Turret Configuration: 12
Rapid Traverse X, Z: 788, 945 IPM
Approximate Weight: 16,062 lbs

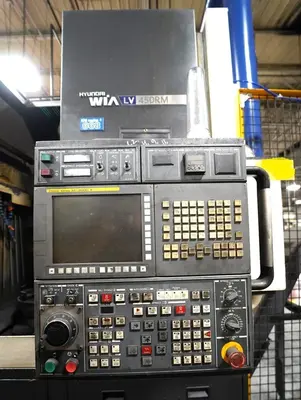

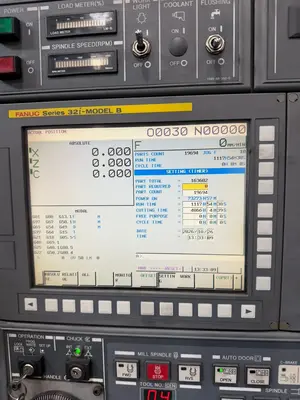

Fanuc 32i-Model B Control

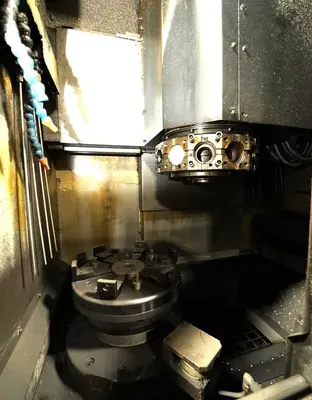

Live Milling 12-Position Turret
C-Axis Positioning

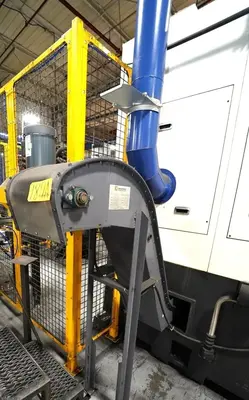

Chip Conveyor
Coolant System
This 2014 Hyundai WIA LV450RM CNC vertical lathe has live milling on a 12-position turret with C-axis positioning, and its rotary tools run at 4,000 RPM and 7.3 HP under a Fanuc 32i-Model B control. It turns a 15" chuck at up to 3,000 RPM from a 29.5 HP main motor, with 24.4" of swing and an 18.3" turning height.
The Hyundai WIA LV450RM, also searched as Hyundai LV450RM, LV450 RM, LV-450RM, and LV450, is a CNC vertical turning center (vertical lathe, VTL) with live tooling and a C-axis.
This 2014 machine has 12.2" of X-axis travel and 19.5" of Z-axis travel, with rapid rates of 788 IPM on X and 945 IPM on Z. It comes equipped with a chip conveyor and coolant system, with an approximate weight of 16,062 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Chuck Size: 15"
Spindle Nose: A2-8
Number of Ranges: 1
X-Axis Travel: 12.2"
Z-Axis Travel: 19.5"
C-Axis Indexing: 0.001 Degree
Rotary Spindle Speed: 4,000 RPM
Rotary Spindle Horsepower: 7.3 HP
Turret Configuration: 12
Rapid Traverse X, Z: 788, 945 IPM
Approximate Weight: 16,062 lbs
Fanuc 32i-Model B Control
Live Milling 12-Position Turret
C-Axis Positioning
Chip Conveyor
Coolant System
