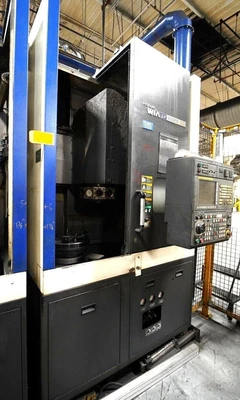

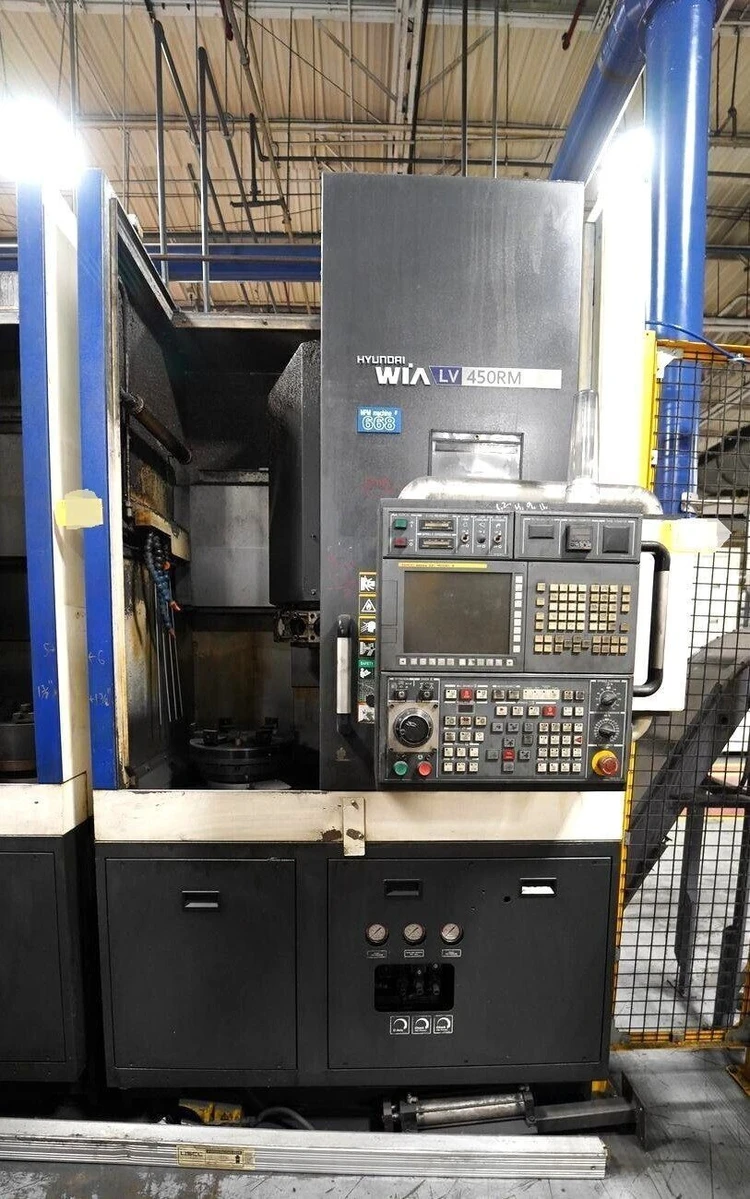

2014 HYUNDAI WIA LV450RM
Have one to sell?
ConditionUsed
1 available
Used Multi-Axis CNC Lathe available. Equipped with FANUC 32IA control, 12" chuck, chip conveyor, live milling 12-position turret. Specs: 3000 RPM table speed, 788/945 IPM rapid traverse, 16,062 lbs.
Table Diameter:12”- 15"
Swing Diameter: 24.4"
Turning Height: 18.3"
Spindle Nose : A2-8
Table Speed: 3,000 RPM
Main Motor: 29.5 HP
Number Of Ranges: 1
X - Axis Travel: 12.2"
Z - Axis Travel: 19.5"
W - Axis Travel : 0
W - Axis Positions: 0
C - Axis Indexing: .001 Degree
Ram Size: 0
Rotary Spindle Speed: 4,000 RPM
Rotary Spindle Horsepower: 7.3 HP
Turret Configuration: 12
Automatic Tool Changer: 0
Rapid Traverse X, Z: 788, 945 IPM
Machine Weight: 16,062 Lbs.

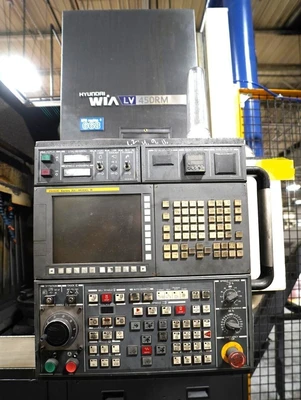

FANUC 32IA CNC CONTROL

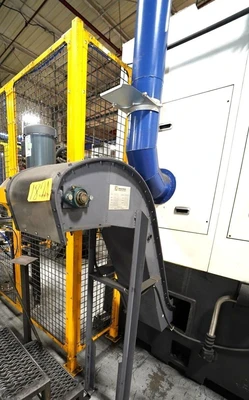

CHIP CONVEYOR
C-AXIS POSITIONING

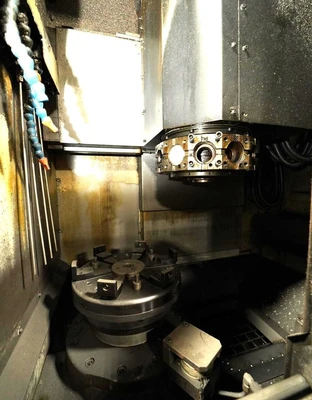

Live milling 12 position turret
12" CHUCK
COOLANT SYSTEM
