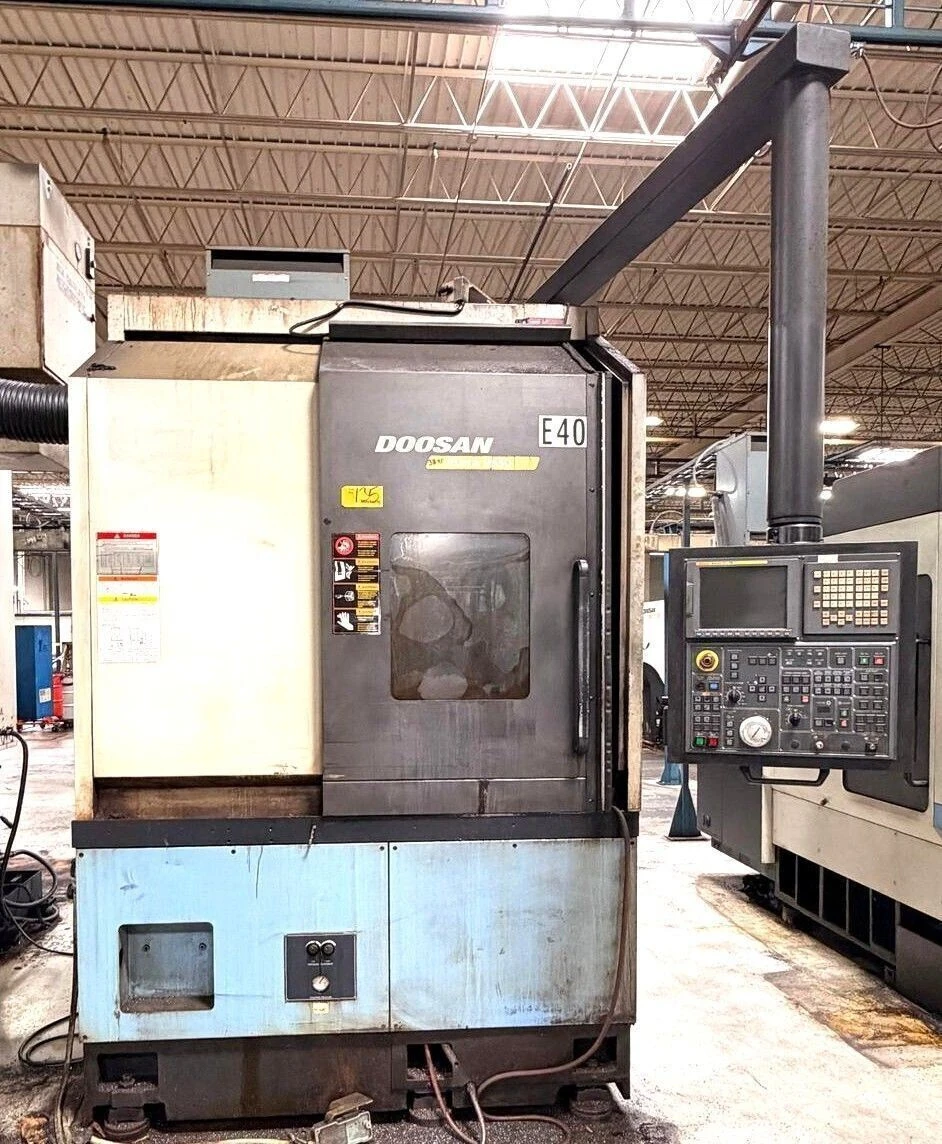

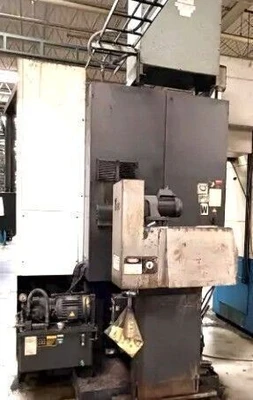

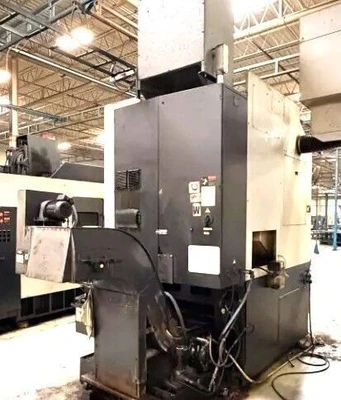

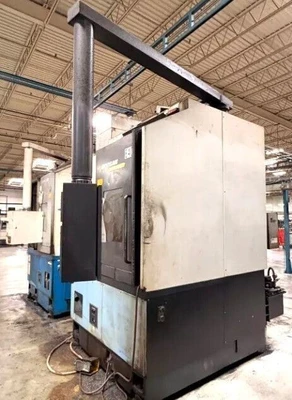

2007 DOOSAN PUMA V550
Have one to sell?
ConditionUsed
1 available
Used CNC Lathe, equipped with Fanuc 21i-TD control, 24" 3-jaw chuck, chip conveyor, and coolant system. Features 31.5" swing, 28.74" turning diameter, and 2000 RPM spindle. Weighs 20,000 lbs.
Table Diameter Chuck 24"
Swing 31.5"
Turning Diameter 28.74"
Max Turning Length 29.5"
Chuck Size 24"
X-Axis Travel 15.3"
Z-Axis Travel 30.7"
Rapid Traverse (X/Z) 472/630 ipm
Spindle Speed (RPM) 2,000 rpm
Spindle Nose A2-11
Spindle Motor (HP)50 horsepower
Turret Capacity 12
Machine Dimensions 75" x 107" x 129
Weight 20,000 pounds
- Fanuc 21i-TD Series Control
-24” 3-JAW CHUCK
- Chip Conveyor
- Coolant Tank & Pump
- 2 Speed Gear Box
