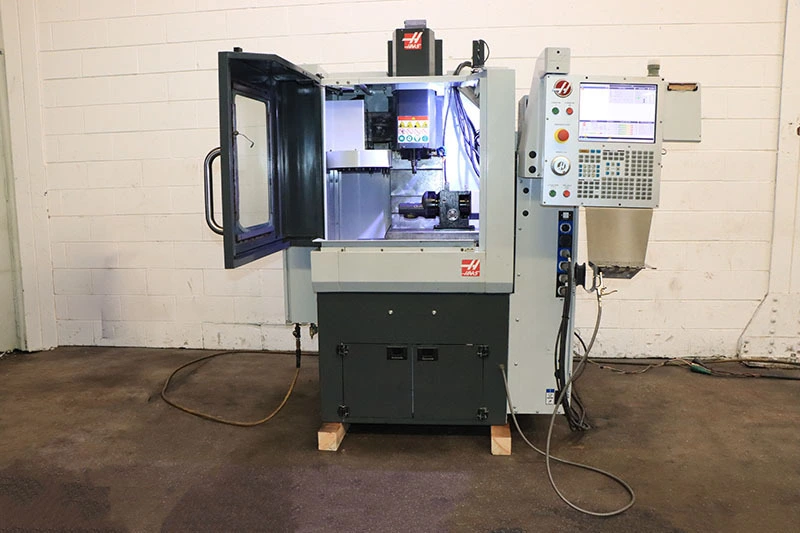

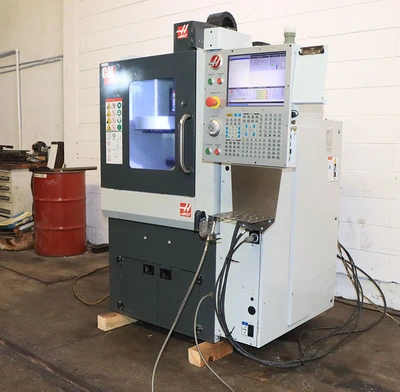

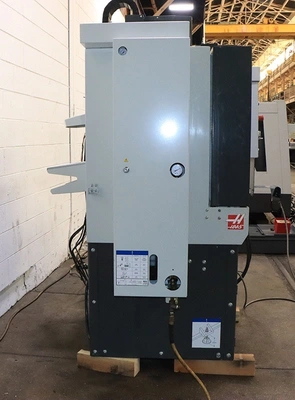

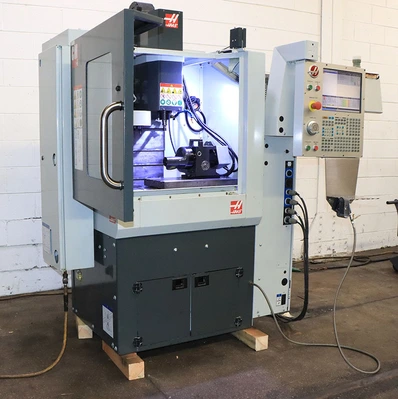

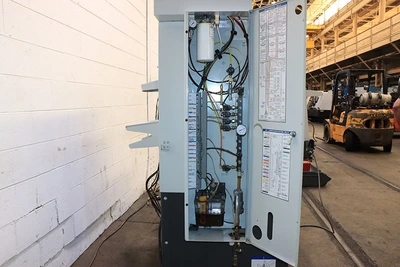

2018 HAAS CM-1

Vertical Machining Centers
Manufacturer:
HAAS
Model:
CM-1
Year:
2018
Stock #:
X3X4491
Used Vertical Machining Center, 5-axis equipped with HAAS NextGen control, high-speed machining, 50,000 RPM spindle, 20 ATC, 22.5" x 10" table. Features dual axis rotary table, probing system.

TABLE DIMENSIONS ...................... 22.5" X 10"
TABLE LOAD CAPACITY ................... 150 LBS.
X - AXIS TRAVEL ....................... 12"
Y - AXIS TRAVEL ....................... 10"
Z - AXIS TRAVEL ....................... 14"
SPINDLE NOSE TO TABLE ................. 2.6" - 16.6"
SPINDLE SPEED ......................... 50,000 RPM
MAIN MOTOR ............................ 5 HP
SPINDLE TAPER ......................... ISO/20
RAPID TRAVERSE ........................ 757 IPM
MAX. CUTTING .......................... 500 IPM
TOOL CHANGER .......................... 20 ATC
MAX. TOOL DIAMETER ................... 2.3"
MAX. TOOL WEIGHT ...................... 5 LBS.
TOOL CHANGE TIME....................... 3.2 SECS
APPROXIMATE MACHINE WEIGHT ............ 2500 lbs.

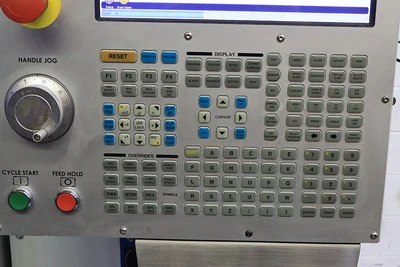

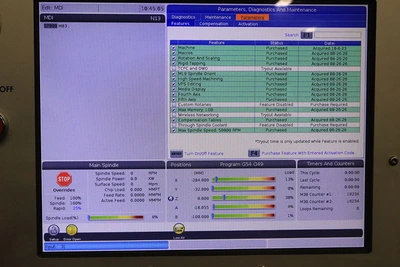

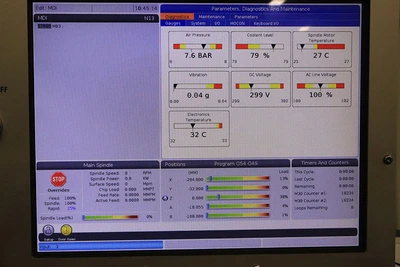

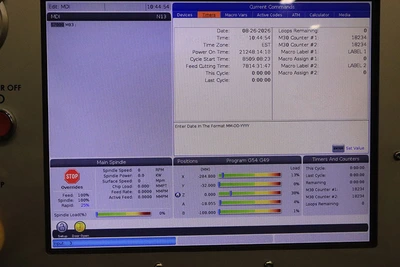

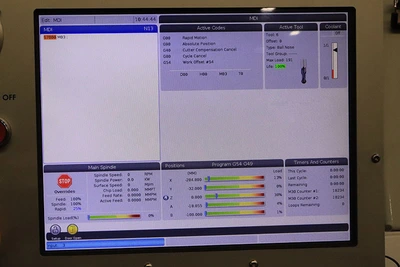

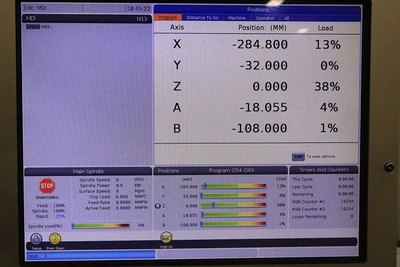

HAAS NEXTGEN 5-AXIS CONTROL:
HIGH SPEED MACHINING, ROTATION & SCALING, MACROS,
RIGID TAPPING, M19 SPINDLE ORIENT,
MEDIA DISPLAY M-CODE, VISUAL PART PROG. (VPS EDITING)
1GB MEMORY
4TH & 5TH AXIS DRIVES & WIRING

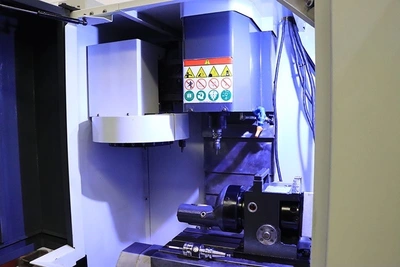

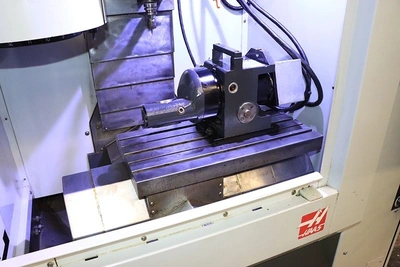

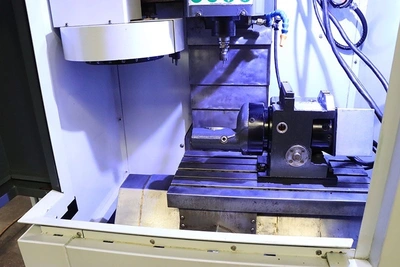

HAAS TRT70 DUAL AXIS TILTING ROTARY TABLE

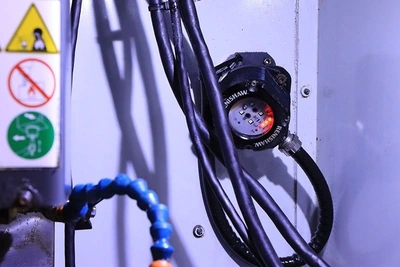

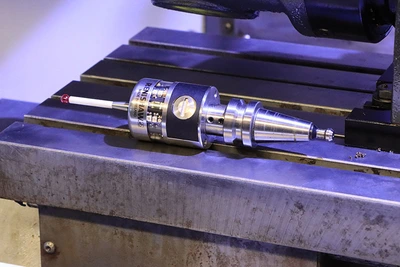

RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
50,000 RPM SPINDLE (ISO 20 TAPER)
20 STATION AUTOMATIC TOOL CHANGER

This equipment is currently unavailable. Similar equipment available now is shown below.
