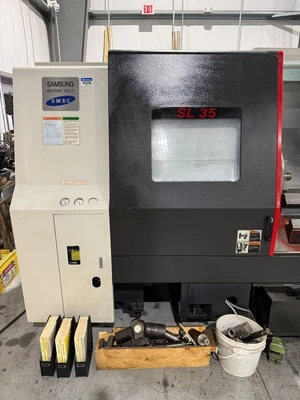

2015 SAMSUNG SL-35/1500
Have one to sell?
ConditionUsed
1 available

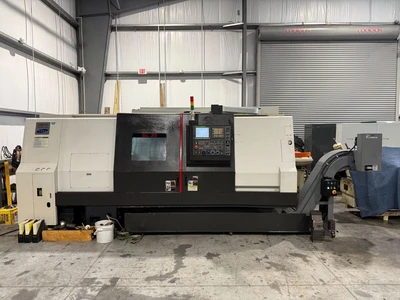

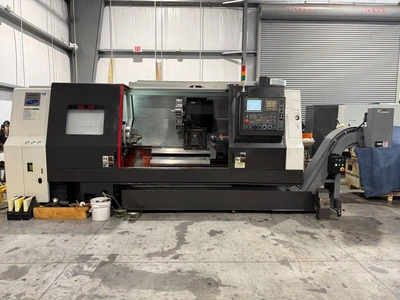

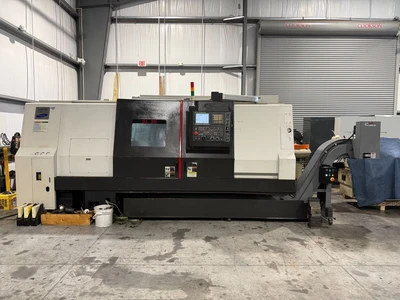

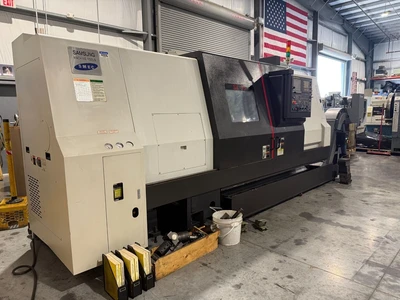

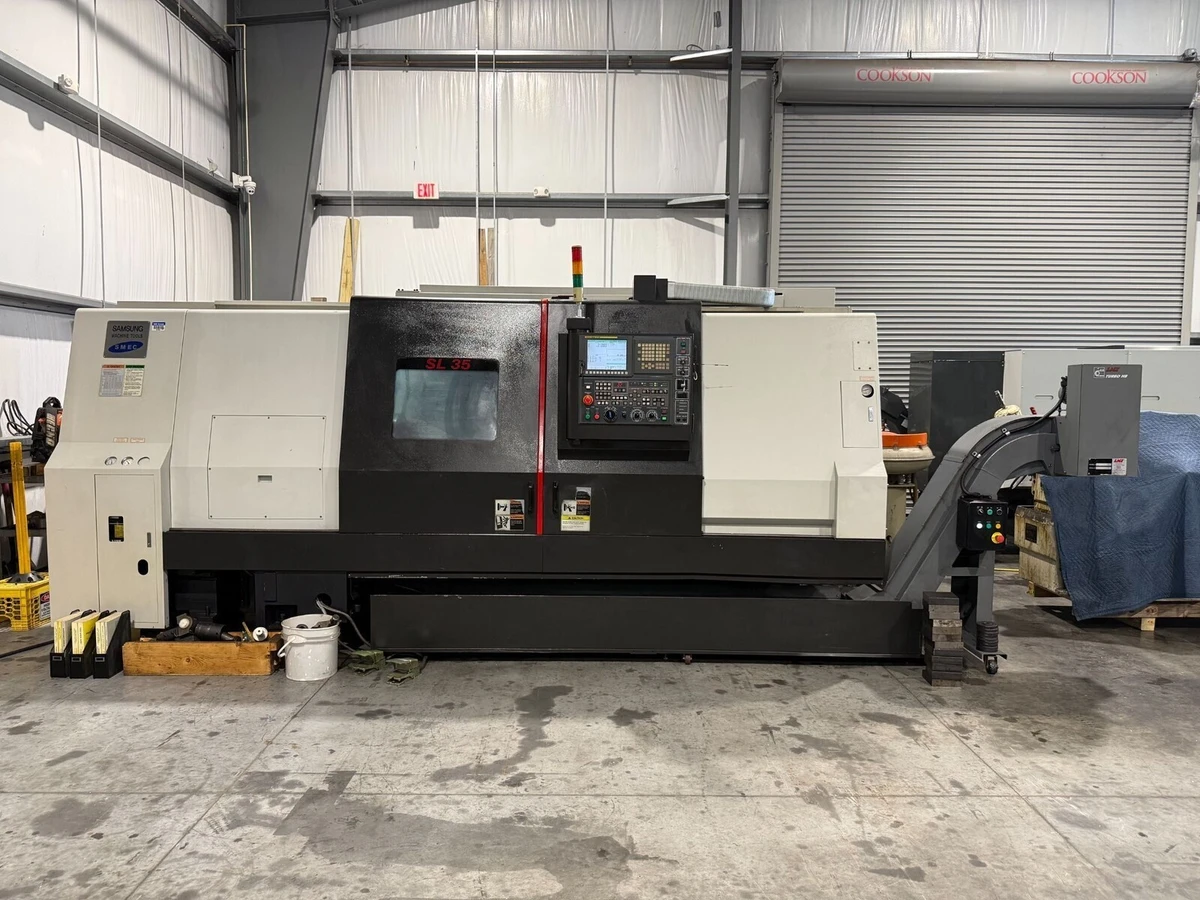

CNC Lathe: Used, equipped with FANUC Oi-TD CNC Control, 23.62” swing over bed, 60.24” max turning length, and 30 HP spindle motor. Includes KITAGAWA Chuck, LNS Chip Conveyor, and programmable tailstock.
Maximum swing over bed- 23.62”
Maximum swing over carriage- 16.73”
Maximum turning diameter- 16.50”
Maximum turning length- 60.24”
Spindle nose- A2-11
Spindle speeds- 2,000 R.P.M.
Spindle bore- 5.20”
Bar capacity- 4.63”
X axis travel- 9.45”
Z axis travel- 63.19”
X axis rapids- 472 I.P.M.
Z axis rapids- 590 I.P.M.

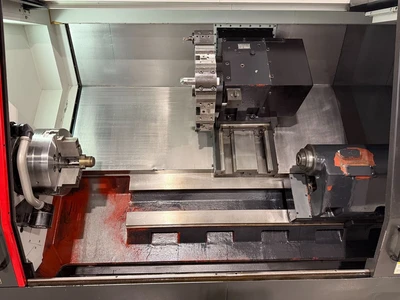

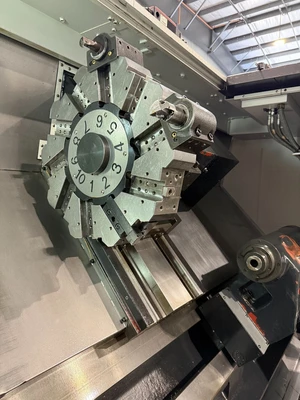

Turret- 10 station
Machine weight- 22,500 Lbs.
Machine dimensions- 232” x 75” W x 94”H

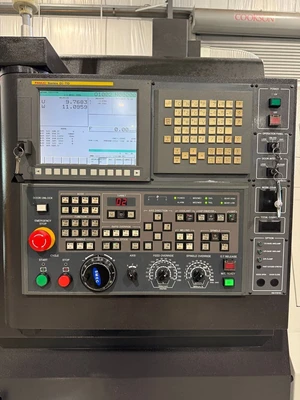

FANUC Oi-TD CNC Control

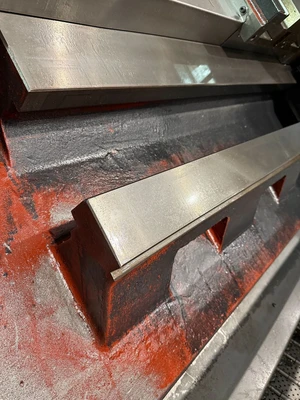

Box Way construction

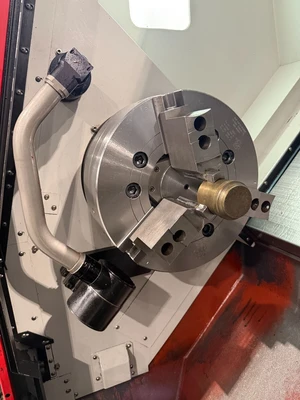

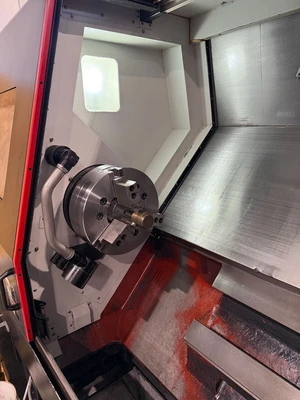

15” 3 Jaw KITAGAWA Chuck
Tool setter

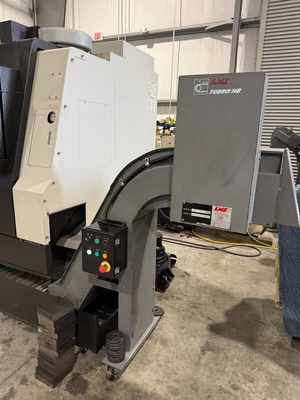

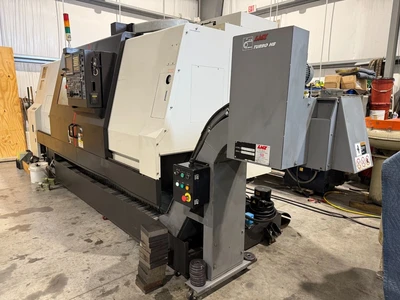

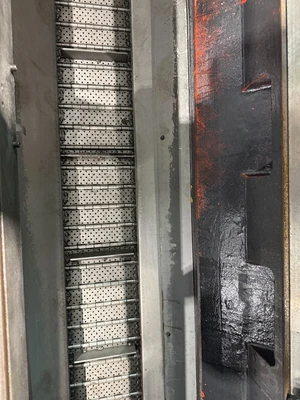

LNS Chip conveyor

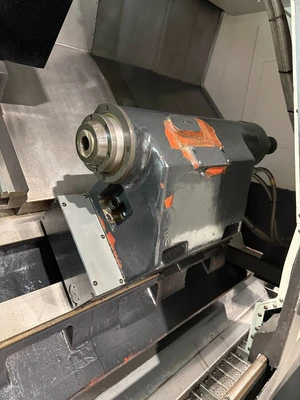

Programmable tailstock
2 speed gearbox
30 H.P. Spindle motor
Machine is wired for 230 volt / 3 pahse / 60 H.Z.
